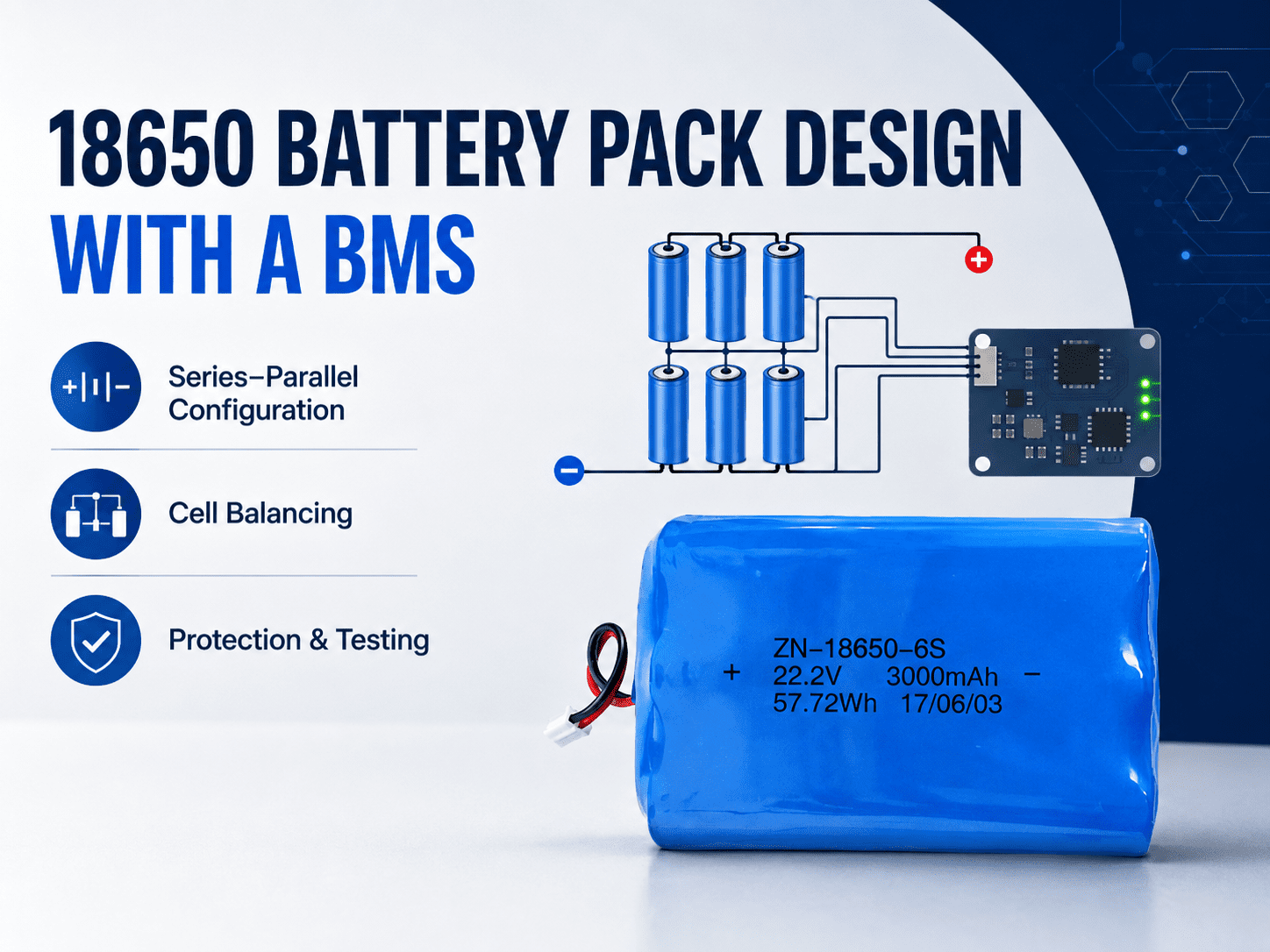

Designing an 18650 battery pack with a BMS requires more than connecting several cells together. The pack must match the device’s voltage, capacity, current, dimensions, charging method, operating temperature, and protection requirements.
A reliable design combines properly matched cells, the correct series-parallel configuration, a suitable battery management system, cell balancing, mechanical protection, and controlled validation testing.
An 18650 battery pack is made by connecting cylindrical 18650 lithium-ion cells in series, parallel, or a combination of both.
Series connections increase voltage.
Parallel connections increase capacity and current capability.
A BMS monitors and protects the battery pack during charging and discharging.
For example, a 3S2P battery pack contains three series groups, with two cells connected in parallel within each group. The pack contains six cells in total.
A properly designed BMS may provide:
Cell overcharge protection
Cell over-discharge protection
Overcurrent protection
Short-circuit protection
Overtemperature protection
Low-temperature charging protection
Cell voltage monitoring
Cell balancing
Communication or fuel-gauge functions
The BMS is not a charger or a voltage converter. It cannot replace a properly designed charger, suitable cells, correct wiring, or adequate mechanical protection.
Battery design should begin with the device rather than with the available battery cell.
Before selecting a cell or BMS, define:
Required operating voltage
Minimum and maximum input voltage
Desired operating time
Continuous current
Peak or startup current
Charging current
Available installation space
Connector and cable requirements
Operating temperature
Expected cycle life
Communication requirements
Certification and transportation requirements
The device may require a regulated 12 V output, an 11.1 V nominal battery, or a wider input range. These requirements are not interchangeable.
The design should account for:
Nominal battery voltage
Maximum charging voltage
Minimum operating voltage
BMS overvoltage cutoff
BMS undervoltage cutoff
Voltage drop under load
Voltage requirements of any DC-DC converter
The selected series count determines the pack’s nominal, full-charge, and cutoff voltage; the 18650 battery voltage guide shows how these values change across common pack configurations.
A device may draw little current during normal operation but require a high current pulse when a motor, transmitter, pump, or wireless module starts.
The design should distinguish between:
Continuous operating current
Startup current
Short-term peak current
Charging current
Standby current
Average current during the complete duty cycle
A BMS that supports the average current but cannot handle the peak current may disconnect the pack during startup.
High-power equipment may also require a high-discharge battery instead of a standard energy-focused 18650 cell.
The physical design should consider more than the diameter and length of the cells. It must also include:
Cell spacing
Insulation materials
Nickel or copper busbars
BMS board dimensions
Protection components
Thermistors
Cables and connectors
Enclosure walls
Mounting points
Heat-dissipation space
A battery may have the correct electrical specifications but still fail to fit inside the device after the BMS, wiring, and insulation are added.
Cells should be selected according to the actual load profile and operating environment.
Important specifications include:
Cell chemistry
Nominal voltage
Rated capacity
Maximum continuous discharge current
Pulse discharge capability
Recommended charging current
Operating temperature range
Cycle-life conditions
Maximum charge voltage
Discharge cutoff conditions
Cell dimensions
Internal resistance
The cell manufacturer’s datasheet should take priority over general online specifications. Two 18650 cells may have the same physical size but completely different capacity, discharge performance, and charging limits.
Cells used in the same pack should normally have the same:
Manufacturer
Model
Chemistry
Rated capacity
Production batch, where possible
Age and usage history
Mixing new and used cells, different brands, or different capacity models can create voltage imbalance and uneven current sharing.
A weaker cell may reach the overcharge or undervoltage threshold before the other cells. The BMS may then disconnect the entire pack even though the overall pack voltage appears acceptable.
For OEM production, incoming cells should be checked for:
Open-circuit voltage
Capacity
Internal resistance
Physical damage
Insulation condition
Lot consistency
Recovered or unverified cells should not be used in a commercial battery pack.
The series-parallel configuration is normally written as S and P. The S/P notation determines how voltage, capacity, and current capability are combined. These relationships are illustrated through common series and parallel 18650 battery configurations.
S represents the number of series-connected cell groups.
P represents the number of cells connected in parallel in each group.
The basic relationships are:
Pack nominal voltage ≈ Series count × Cell nominal voltage
Pack capacity ≈ Parallel count × Cell capacity
Total cell count = Series count × Parallel count
Current capability also increases with the parallel count, but the actual result depends on the cell’s discharge rating, BMS rating, welds, wires, connectors, and thermal conditions.
Configuration | Total Cells | Typical Nominal Voltage | Capacity Compared with One Cell |
|---|---|---|---|
1S1P | 1 | One cell voltage | 1× |
2S1P | 2 | Approximately 7.2–7.4 V | 1× |
2S2P | 4 | Approximately 7.2–7.4 V | 2× |
3S2P | 6 | Approximately 10.8–11.1 V | 2× |
4S2P | 8 | Approximately 14.4–14.8 V | 2× |
6S2P | 12 | Approximately 21.6–22.2 V | 2× |
4S3P | 12 | Approximately 14.4–14.8 V | 3× |
The exact voltage depends on the cell datasheet and the charging system used for the pack.
Assume the selected 18650 cell has:
Nominal voltage: 3.6 V
Capacity: 2.5 Ah
Maximum continuous discharge: 10 A
A 3S2P pack would provide approximately:
Nominal voltage: 10.8 V
Capacity: 5 Ah
Energy: approximately 54 Wh
Total cells: 6
Theoretical parallel current capability: approximately 20 A before considering the BMS, wiring, temperature, and safety margins
If the cell’s specified nominal voltage is 3.7 V, the pack would generally be described as an 11.1 V nominal pack instead.
The BMS for this example must be designed for a 3-series-cell configuration. A 4S BMS is not suitable simply because it has a higher voltage rating.
In a 3S2P pack, the BMS usually monitors three series groups rather than six completely independent cell voltages.
The two cells in each parallel group share the same electrical voltage. The BMS monitors the voltage of each series group and balances the groups during charging.
This makes cell matching and parallel-group construction important. A poor connection, damaged cell, or high-resistance weld inside one parallel group can cause uneven current distribution.
Capacity is normally expressed in ampere-hours, while energy is expressed in watt-hours.
The approximate energy calculation is:
Pack energy in Wh ≈ Nominal voltage × Capacity in Ah
For the 3S2P example:
10.8 V × 5 Ah = approximately 54 Wh
Estimated runtime can then be calculated as:
Runtime in hours ≈ Usable battery energy in Wh ÷ Device power in W
If the device consumes 10 W continuously:
54 Wh ÷ 10 W = approximately 5.4 hours
In practice, the usable runtime will be lower because of:
DC-DC converter losses
BMS cutoff limits
Voltage drop under load
Cell temperature
Aging
High discharge rate
Safety reserve
Changes in the device’s power consumption
For variable-load devices, average power over the complete operating cycle is more useful than maximum power alone. For a more complete estimate, combine nominal voltage with usable energy, conversion efficiency, cutoff limits, temperature, and the actual load profile in 18650 battery pack capacity and runtime calculations.
The 18650 battery pack calculator can provide an initial estimate of series count, parallel count, pack voltage, capacity, energy, and runtime.
The BMS should be selected after the series-parallel configuration has been determined.
A BMS specification should match the following parameters.
The BMS must match the number of series groups:
2S pack → 2S BMS
3S pack → 3S BMS
4S pack → 4S BMS
6S pack → 6S BMS
The series count is more important than the total number of cells. A 3S2P pack still requires a 3S BMS.
The BMS continuous discharge rating should exceed the device’s continuous current. The peak rating should also cover startup and transient current.
The design should consider the complete current path, including:
Cell discharge rating
BMS MOSFET rating
Nickel or copper interconnects
Fuses
Wires
Connectors
PCB traces
Enclosure temperature
A BMS may have a high nominal current rating but still require derating when installed in a small, poorly ventilated enclosure.
The BMS must support the intended charging current. The charger, cell, BMS, connector, and wiring should all be compatible.
Charging current should be chosen according to the cell’s charging specification and the required service life. A faster charge is not automatically a better charge if it creates excessive heat or accelerates cell aging.
The following BMS parameters require careful review:
Cell overvoltage threshold
Cell undervoltage threshold
Overcurrent threshold
Short-circuit response
Overtemperature threshold
Low-temperature charging limit
Recovery conditions
Protection delay time
Balancing start voltage
Balancing current
These values must be compatible with the cell datasheet and the BMS specification. A universal set of protection thresholds is not suitable for every 18650 cell.
Cell monitoring, charge and discharge control, and fault handling form the core of battery management system structure.
Some applications only need basic protection. Others require:
State-of-charge estimation
State-of-health monitoring
Battery authentication
SMBus, I⊃2;C, CAN, or UART communication
Remaining-runtime calculation
Fault logging
Host-device communication
Medical equipment, industrial devices, and smart portable products may require a smart BMS instead of a basic protection board.
A BMS normally monitors individual series groups and disconnects the battery when an unsafe condition is detected.
Protection Function | What It Detects | Typical BMS Response |
|---|---|---|
Overcharge protection | A cell group reaches an excessive voltage | Stops or disconnects charging |
Over-discharge protection | A cell group falls below its permitted voltage | Disconnects the load |
Overcurrent protection | Discharge current exceeds the limit | Opens the discharge path |
Short-circuit protection | A rapid abnormal current event | Disconnects the pack quickly |
Overtemperature protection | Cell or MOSFET temperature is too high | Stops charging or discharging |
Low-temperature charging protection | Charging occurs below the permitted temperature | Blocks charging |
Cell imbalance monitoring | Series groups develop different voltages | Activates balancing or triggers a fault |
A pack-level voltage reading cannot always reveal the condition of each series group. One weak group may reach its protection limit while the total pack voltage still appears normal.
For that reason, multi-cell packs need reliable cell-group sensing and protection logic rather than simple total-voltage monitoring.
Cells in a series pack do not remain perfectly identical throughout their service life.
Voltage imbalance can develop because of:
Small manufacturing differences
Unequal internal resistance
Different starting states of charge
Uneven temperature
Aging
Self-discharge differences
Inconsistent weld or connector resistance
Repeated high-current operation
The weakest series group can limit the usable capacity of the entire pack. It may reach the upper voltage limit during charging or the lower voltage limit during discharge before the other groups. Because differences in capacity, internal resistance, and voltage affect both current sharing and protection timing, cell matching in an 18650 battery pack should be treated as part of the design process.
Passive balancing is the simpler approach. It reduces the voltage of a higher-voltage cell group by converting a small amount of excess energy into heat.
Its main advantages are:
Simple circuit design
Lower cost
Easy integration
Wide availability
Suitability for many compact battery packs
The limitation is that the excess energy is lost as heat. Passive balancing can also take a relatively long time when the imbalance is significant.
Active balancing transfers energy from a higher-voltage group to a lower-voltage group instead of dissipating all of the excess energy as heat.
This approach can offer:
Lower balancing losses
Better efficiency in larger packs
More effective use of available capacity
Better suitability for demanding cycling conditions
The tradeoffs include:
Higher cost
More complex control circuitry
Additional design and validation work
More space and thermal considerations
Passive balancing is often suitable for compact, cost-sensitive packs with well-matched cells. Active balancing becomes more attractive when the pack is large, frequently cycled, space-constrained, or required to maintain tight long-term voltage consistency.
No. Balancing can correct limited differences between healthy cells, but it cannot repair a damaged, aged, or abnormally self-discharging cell.
If one series group repeatedly drifts away from the others, inspect:
Cell capacity
Internal resistance
Leakage or self-discharge
Weld quality
BMS sensing wires
Temperature differences
Connector resistance
Repeated imbalance is usually a sign that the cell, connection, or pack design needs attention. Increasing the balancing current alone may not solve the problem.
Electrical performance is only one part of a reliable 18650 battery pack.
Commercial battery packs generally use controlled spot welding or another qualified interconnection method. Directly soldering to cylindrical lithium-ion cells can transfer excessive heat to the cell and create long-term reliability risks.
The interconnection design should control:
Weld strength
Current-path resistance
Heat generation
Vibration resistance
Tab and busbar dimensions
Fuse-link behavior
Production repeatability
The positive terminal of an 18650 cell should be protected with suitable insulation components, such as insulating rings and fish-paper protection.
The pack may also require:
Cell separators
Insulating sheets
Terminal barriers
Anti-abrasion materials
Flame-retardant materials
Protection against cell movement
Clearance around the BMS board
A loose cell or damaged insulation can create an internal short circuit.
Thermal design should consider both the cells and the BMS.
The design may include:
Thermistors attached to representative cell locations
Temperature monitoring near the hottest area
Heat paths away from MOSFETs
Ventilation or enclosure heat transfer
Spacing between heat-generating components
Protection against external heat sources
The thermistor location should reflect the actual thermal risk. Placing the sensor far from the cells may produce an inaccurate temperature reading.
Cable and connector selection should consider:
Continuous current
Peak current
Cable length
Voltage drop
Temperature
Mechanical movement
Mating cycles
Locking requirements
Polarity protection
A connector rated for the average current may still fail under repeated startup pulses or elevated temperature.
A production-ready pack should be validated electrically, mechanically, thermally, and functionally.
Before assembly, testing 18650 battery capacity and health provides the capacity, internal-resistance, and voltage data needed for cell matching.
Cell identity
Open-circuit voltage
Capacity
Internal resistance
Physical condition
Insulation
Matching between cells
After assembly, verify:
Total pack voltage
Voltage of every series group
Correct BMS wire sequence
Charging behavior
Discharging behavior
Overcharge protection
Over-discharge protection
Overcurrent protection
Short-circuit response in a controlled laboratory setup
Temperature protection
Balancing behavior
Connector polarity
Communication functions, if applicable
The pack should also be tested inside the final device.
Relevant tests may include:
Startup and peak-load testing
Continuous runtime
Charging time
Operation at low and high temperatures
Enclosure temperature
Vibration and drop testing
Cycle testing
Standby-current testing
Long-duration storage
Transportation and certification testing
Testing should proceed through sample, pilot, and production stages. A battery that performs well in an open laboratory setup may behave differently inside a compact enclosure.
The BMS should follow the series count, current, charging method, temperature requirements, and communication needs. Choosing a generic BMS first often creates integration problems.
Total voltage does not show whether one series group is significantly weaker than the others. Individual group monitoring is essential for multi-cell packs.
Different capacities, internal resistance, or aging levels can cause uneven current sharing and premature protection trips.
A BMS can protect and monitor the pack, but it does not replace a charger with a chemistry- and series-matched charging profile. The charger must still provide the specified voltage, current, CC/CV control, and termination behavior for the selected pack.
A device may work during normal operation but shut down when a motor, transmitter, pump, or processor creates a short current surge.
Cell and BMS ratings can be reduced by high ambient temperature, poor ventilation, and a compact enclosure.
A BMS may include a balancing function, but that does not automatically prove that the balancing current, activation voltage, timing, and temperature behavior are suitable for the application.
A battery manufacturer can develop a more accurate solution when the initial requirements are complete.
A useful specification package should include:
Requirement | Example Information |
|---|---|
Application | Medical monitor, GPS tracker, industrial instrument, handheld device |
Voltage | Required operating range and nominal voltage |
Capacity | Desired Ah, Wh, or runtime |
Load | Continuous current, peak current, duty cycle |
Charging | Charger type, charging voltage, charging current |
Configuration | Preferred or required S/P arrangement |
Dimensions | Maximum length, width, height, and available tolerances |
Connector | Connector model, cable length, polarity, locking requirement |
Temperature | Operating and charging temperature range |
BMS | Protection, balancing, communication, fuel-gauge requirements |
Environment | Vibration, humidity, dust, water, altitude |
Production | Prototype quantity, pilot run, annual volume |
Compliance | Required testing, transport, or market certifications |
When these requirements are defined, ZERNE can develop custom 18650 battery pack solutions around the required voltage, capacity, dimensions, connector, BMS, and production conditions. For projects that need a finished pack rather than loose cells, ZERNE’s 18650 Battery Pack options can be configured around the required electrical and mechanical specifications.
The total number of cells is calculated as:
Total cells = Series count × Parallel count
For example, a 3S2P pack requires six cells.
A 3S2P pack normally requires a BMS designed for three series groups. The parallel count affects capacity and current capability, while the BMS series rating must match the number of series groups.
The BMS current rating must also match the pack’s continuous and peak load requirements.
Most rechargeable multi-cell lithium-ion packs require a suitable protection and monitoring system. The exact architecture may be a BMS, PCM, or a more advanced smart battery system depending on the application.
Commercial equipment should use a protection design based on its actual risk profile rather than a generic board chosen only by voltage.
Only a BMS with a balancing function can balance series groups. Even then, balancing is normally designed to correct limited differences between healthy groups.
It cannot repair a damaged or severely aged cell.
It is generally not recommended. Cells in the same pack should match in model, chemistry, capacity, age, and electrical condition.
Using mismatched cells can cause uneven charging, reduced capacity, overheating, and early protection trips.
A 3S2P pack has the same nominal voltage as a 3S1P pack, but approximately twice the capacity and greater current capability when the cells are properly matched.
It also contains twice as many cells and requires more physical space.
Neither option is suitable for every application.
Passive balancing is often appropriate for compact, cost-sensitive packs with well-matched cells. Active balancing may be worthwhile when efficiency, capacity utilization, pack size, or long-term imbalance performance is especially important.
No. A BMS monitors and protects the battery. It does not function as a boost converter.
If the device requires a regulated output voltage, a separate DC-DC converter may be needed.
The pack should first be tested at the cell and prototype level, followed by controlled charging, discharging, protection, balancing, thermal, mechanical, and application tests.
The final test plan should reflect the cell datasheet, BMS specification, device requirements, and applicable compliance standards.
A reliable 18650 battery pack with a BMS starts with the device requirements. The design should then move through cell selection, series-parallel configuration, capacity and current calculations, BMS selection, protection design, balancing, mechanical integration, and validation testing.
The key principles are:
Match the pack voltage to the device’s complete operating range.
Use cells with compatible specifications and electrical condition.
Select the BMS according to series count, current, charging, temperature, and communication requirements.
Monitor individual series groups instead of relying only on total pack voltage.
Validate balancing and protection under realistic operating conditions.
Treat mechanical construction, connectors, insulation, and thermal design as part of battery safety.
For equipment developers that need a pack adapted to specific voltage, capacity, dimensions, connector, BMS, and production requirements, a customized battery design can reduce integration risk from prototype through mass production.
