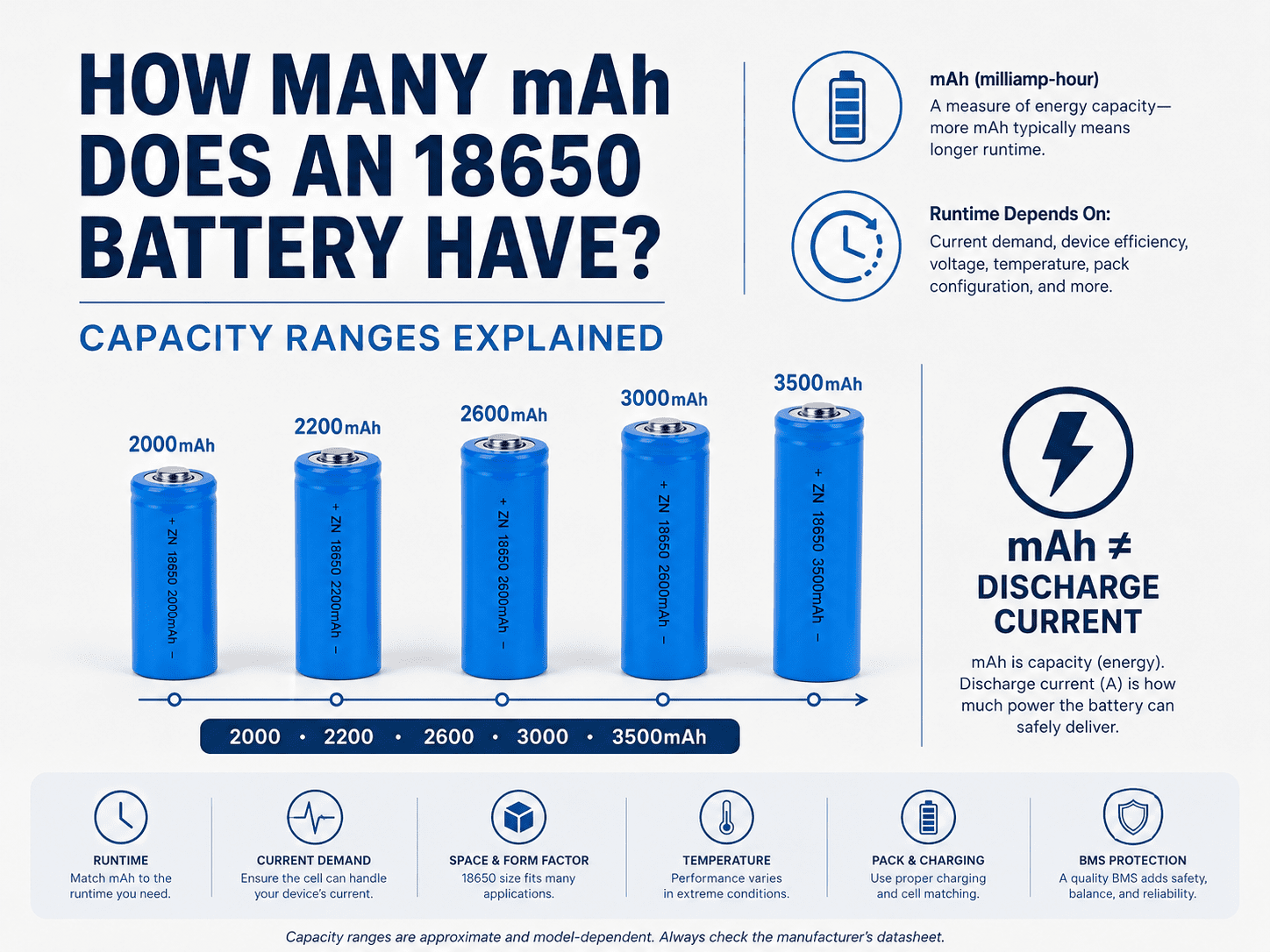

Most 18650 lithium-ion batteries have a capacity between approximately 2,000mAh and 3,500mAh. The most common capacity options include 2000mAh, 2200mAh, 2600mAh, 3000mAh, and 3500mAh.
A higher mAh rating generally means that the cell can store more charge and may provide longer runtime. However, capacity is not the same as discharge current. A 3500mAh 18650 battery does not automatically provide more current than a 2600mAh high-drain cell.
The correct capacity depends on the equipment’s:
Required runtime
Continuous current
Peak current
Available installation space
Weight target
Operating temperature
Battery pack configuration
Charging and protection requirements
For OEM applications, capacity should be selected together with the complete device load profile rather than treated as an independent specification.
Capacity | Capacity in Ah | Approximate Energy at 3.7V | General Selection Direction |
|---|---|---|---|
2000mAh | 2.0Ah | 7.4Wh | Compact or higher-current designs |
2200mAh | 2.2Ah | 8.14Wh | Moderate runtime and practical cost |
2600mAh | 2.6Ah | 9.62Wh | Balanced capacity and current |
3000mAh | 3.0Ah | 11.1Wh | General-purpose higher runtime |
3500mAh | 3.5Ah | 12.95Wh | Higher energy in the standard format |
These energy values are calculated using nominal voltage:
Energy (Wh) = Voltage (V) × Capacity (Ah)
The actual capacity and discharge performance depend on the cell model, test current, cutoff voltage, temperature, and manufacturer specifications.
mAh means milliampere-hours. It describes the amount of electrical charge a battery can deliver under specified test conditions.
For example, a 3000mAh battery may theoretically provide:
3000mA for 1 hour
1500mA for 2 hours
1000mA for 3 hours
These examples are simplified. Real operating time depends on voltage, discharge current, temperature, cutoff voltage, internal resistance, and device efficiency.
The mAh rating does not directly indicate:
Maximum discharge current
Battery voltage
Charging speed
Cycle life
Internal resistance
Safety performance
A 3000mAh cell with a low discharge rating may be unsuitable for a high-power device, while a lower-capacity high-drain cell may handle that application more effectively.
The conversion between milliampere-hours and ampere-hours is:
1Ah = 1000mAh
Common examples include:
2000mAh = 2.0Ah
2200mAh = 2.2Ah
2600mAh = 2.6Ah
3000mAh = 3.0Ah
3500mAh = 3.5Ah
Ampere-hours are often more convenient when calculating battery pack capacity.
For example, a 3S2P battery pack using 3000mAh cells has:
3.0Ah × 2P = 6Ah
The series count affects the voltage, while the parallel count affects the ampere-hour capacity.
Once the cell rating is used to size a complete pack, the estimate also has to include nominal voltage, usable energy, system efficiency, and device power. These inputs are used in 18650 battery pack capacity and runtime calculations.
A 2000mAh 18650 battery has a nominal capacity of 2.0Ah.
At a nominal voltage of 3.7V, its approximate energy is:
3.7V × 2.0Ah = 7.4Wh
A 2000mAh cell may be considered when the design prioritizes:
Lower cost
Higher current capability
Compact energy requirements
Lower battery weight
A specific cell chemistry or discharge profile
A lower capacity does not automatically mean lower performance. Some 2000mAh cells are designed for higher discharge current than larger-capacity energy cells.
The cell’s continuous and peak current ratings should be checked before selecting it for a motor, power tool, robotics product, or other high-load equipment.
A 2200mAh battery provides 2.2Ah of nominal capacity.
Its approximate nominal energy at 3.7V is:
3.7V × 2.2Ah = 8.14Wh
A 2200mAh cell may be used when the product requires a practical balance between:
Moderate runtime
Current performance
Cell cost
Standardized pack dimensions
Long-term availability
The actual suitability depends on the specific model. Two 2200mAh cells may have different internal resistance, discharge ratings, and cycle-life characteristics.
A 2600mAh 18650 battery has a nominal capacity of 2.6Ah.
Its approximate energy is:
3.7V × 2.6Ah = 9.62Wh
2600mAh cells are commonly considered a balanced option for applications requiring a combination of:
Moderate-to-long runtime
Practical current capability
Standard cell dimensions
Cost control
Stable supply
This capacity may be appropriate for portable instruments, handheld products, compact industrial equipment, and medium-power electronics, provided that the current rating matches the load.
A 3000mAh cell provides 3.0Ah of nominal capacity.
At 3.7V, the approximate energy is:
3.7V × 3.0Ah = 11.1Wh
A 3000mAh cell is often selected when runtime is more important than the highest possible current output.
It may be suitable for:
Portable monitoring equipment
Handheld devices
Medical and healthcare equipment
Wearable products
GPS and IoT devices
General-purpose battery packs
The 3000mAh 18650 battery provides a reference point for evaluating capacity, voltage, and performance parameters within the standard 18650 format.
However, a 3000mAh rating alone does not confirm whether the cell can support a specific device. Continuous current, pulse current, temperature, and cutoff conditions must also be reviewed.
A 3500mAh 18650 battery provides 3.5Ah of nominal capacity.
Its approximate energy at 3.7V is:
3.7V × 3.5Ah = 12.95Wh
A 3500mAh cell is often selected when the design prioritizes:
Higher energy per cell
Longer runtime
Fewer parallel cells
Compact energy storage
Reduced total cell count for a target capacity
The 3500mAh 18650 battery can be considered for products that need higher capacity within the standard 18650 form factor.
However, high-capacity cells may not provide the highest discharge current. A 3500mAh cell should not be selected for a high-drain device without checking its continuous and pulse-current ratings.
Capacity and discharge current describe different aspects of cell performance.
Capacity indicates how much charge the cell can store and deliver during a specified test.
It is expressed in:
mAh
Ah
Discharge current indicates how much current the cell can supply at a given time.
It is expressed in:
A
C-rate
A cell can have high capacity but a moderate current rating, or lower capacity but a high current rating.
Manufacturers may design cells for different priorities.
A high-capacity cell may use more active material to maximize energy storage. A high-drain cell may use an internal structure designed to reduce resistance and support higher current.
These design priorities can create a tradeoff:
Cell Type | Main Priority | Possible Characteristics |
High-capacity cell | Longer runtime | Higher mAh, moderate current |
High-drain cell | Power output | Lower or moderate mAh, higher current |
Balanced cell | General performance | Moderate capacity and current |
Specialized cell | Application-specific performance | Defined voltage, thermal, or cycle requirements |
The correct choice depends on whether the device needs more operating time or more instantaneous power.
When instantaneous power matters more than runtime, compare high-drain 18650 battery options by continuous current, peak current, voltage sag, and thermal limits rather than mAh alone.
C-rate compares discharge current with battery capacity.
The formula is:
C-rate = Discharge current (A) ÷ Capacity (Ah)
For a 3000mAh cell:
3000mAh = 3Ah
If the cell is discharged at 6A:
6A ÷ 3Ah = 2C
For a 3500mAh cell discharged at the same 6A:
6A ÷ 3.5Ah ≈ 1.71C
The lower C-rate does not automatically mean that the 3500mAh cell is safer or better. The cell must still be rated for the actual current and operating conditions.
C-rate should also be distinguished from the manufacturer’s continuous discharge rating. A mathematical C-rate calculation does not replace the cell datasheet.
Estimate how many hours the device should operate between charges.
Consider:
Normal operating power
Standby power
Startup demand
Duty cycle
Wireless transmission
Display or sensor operation
Conversion efficiency
A device that operates intermittently may require less capacity than a device with the same peak power running continuously.
The basic energy requirement is:
Required energy (Wh) = Device power (W) × Required runtime (h)
For example, a 10W device that must operate for 6 hours requires approximately:
10W × 6h = 60Wh
If you want to compare different cell capacities and pack configurations, the 18650 battery pack calculator can estimate pack energy and runtime before the design is finalized.
The actual battery should provide more than 60Wh to account for:
Conversion losses
Usable capacity limits
Battery aging
Temperature
Voltage cutoff
Load variation
A high-capacity cell may not be suitable if the device requires high current.
Confirm:
Continuous operating current
Startup current
Peak current
Pulse duration
BMS current rating
Connector and wiring limits
If current demand is high, a lower-capacity high-drain cell or a battery pack with more parallel cells may be more appropriate.
Higher-capacity 18650 cells can reduce the number of parallel cells required for a target energy level, but the final pack still needs space for:
Cell holders
BMS
Insulation
Connectors
Wires
Housing
Thermal components
The capacity selection should be coordinated with the complete battery pack design.
Capacity can change with temperature and aging.
The selected cell should be evaluated under:
Minimum operating temperature
Maximum operating temperature
Expected charge and discharge current
Required cycle life
Storage conditions
Product service life
A cell that provides excellent capacity at room temperature may deliver less usable energy in a cold environment or after repeated cycles.
The capacity printed on a label is not a substitute for a controlled capacity test.
A proper test should use:
A compatible charging system
A defined rest period
A controlled discharge current
A specified cutoff voltage
Consistent temperature
Recorded discharge time and capacity
Actual results should be compared with the rated capacity under similar test conditions.
A capacity result can be affected by:
Discharge current
Cutoff voltage
Test temperature
Charging method
Rest time
Cell age
Internal resistance
For incoming inspection, used-cell screening, or OEM cell matching, a consistent 18650 battery capacity and health testing process provides more useful information than the printed mAh value alone.
Assuming every 18650 battery has the same capacity.
Treating 3500mAh as automatically better than 3000mAh.
Confusing mAh with maximum discharge current.
Comparing cells tested under different conditions.
Ignoring the C-rate and continuous current rating.
Using rated capacity as guaranteed usable capacity.
Forgetting system efficiency when estimating runtime.
Ignoring temperature and battery aging.
Choosing capacity before checking the device’s current demand.
Selecting a cell without confirming long-term supply.
Mixing cells with different capacities in the same pack.
Using a general capacity range instead of the actual cell datasheet.
Most commonly available 18650 lithium-ion batteries have capacities from approximately 2000mAh to 3500mAh. The exact range depends on the cell model, manufacturer, chemistry, and test conditions.
Not always. A 3500mAh cell may provide longer runtime, while a 3000mAh or 2600mAh cell may offer better current performance. The correct choice depends on the device load and operating requirements.
A 3000mAh battery equals 3Ah:
3000mAh ÷ 1000 = 3Ah
No. Capacity and discharge current are different specifications. A high-capacity cell may provide moderate current, while a lower-capacity high-drain cell may support a higher current.
A 3500mAh cell stores more charge and may provide longer runtime under the same load. A 2000mAh cell may be selected when the design prioritizes current capability, cost, weight, or a specific cell chemistry.
At a nominal voltage of 3.7V:
3.7V × 3Ah = 11.1Wh
The actual usable energy may be lower because of current, temperature, cutoff voltage, aging, and system efficiency.
Capacity should not be the only selection factor. A high-drain cell with a suitable continuous-current rating may be more appropriate than a higher-capacity energy cell.
They should not be mixed in the same battery pack without a design and matching process specifically intended for them. Different capacities can cause uneven charging, discharging, and cell aging.

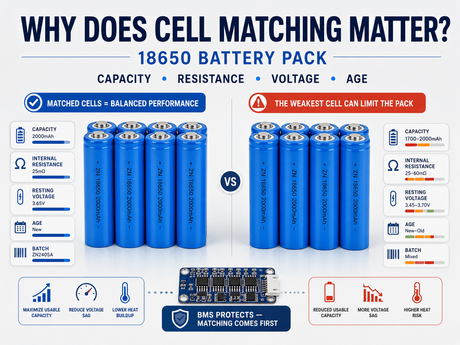

For a series or parallel pack, cell matching in an 18650 battery pack should also compare voltage, internal resistance, age, and production batch before cells are combined.
Start with the required runtime and device power, then check continuous and peak current, space, temperature, charging, BMS, cycle life, and production requirements. Capacity should be selected as part of the complete pack design.
It may, depending on the cell construction and materials. Weight should be checked from the actual cell specification rather than estimated from capacity alone.

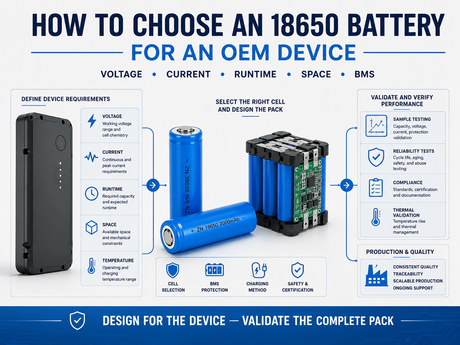

For an OEM device, capacity selection should be completed together with cell and pack engineering.
That decision should be checked against the device’s voltage, continuous and peak current, dimensions, charging method, protection requirements, and validation plan. The broader OEM 18650 battery selection process also has to account for these system constraints, not just the mAh label.
The project may require customized:
Cell capacity
Series and parallel configuration
Voltage
Continuous current
Peak current
Dimensions
Connector
BMS
Housing
Temperature monitoring
Production tolerance
Capacity pages such as the 3000mAh and 3500mAh models can provide starting points, but the final selection should be verified against the equipment’s real load and mechanical limits.
A battery pack manufacturer can also compare several capacity options during the sample stage and evaluate the tradeoff between runtime, current, size, weight, and cost.
Once the electrical targets are confirmed, custom 18650 battery solutions can be evaluated around the required capacity, current, dimensions, and protection requirements.
A typical 18650 battery has a capacity between approximately 2000mAh and 3500mAh. Common options include:
2000mAh
2200mAh
2600mAh
3000mAh
3500mAh
The mAh rating indicates capacity, but it does not determine the cell’s maximum discharge current. A high-capacity cell may provide longer runtime while a lower-capacity high-drain cell may perform better in a high-power application.
When selecting an 18650 battery, consider:
Required runtime
Device power
Continuous and peak current
Energy requirements
Available space
Weight
Temperature
Charging method
BMS protection
Cell availability
Required service life
For OEM products, the best capacity is the one that meets the complete electrical and mechanical requirements of the device while maintaining reliable performance throughout its intended operating life.
