To calculate the capacity and runtime of an 18650 battery pack, you need to consider the cell capacity, series and parallel configuration, nominal voltage, device power, system efficiency, and usable energy.
The basic formulas are:
Pack capacity (Ah) = Cell capacity (Ah) × Parallel count
Pack energy (Wh) = Nominal voltage (V) × Pack capacity (Ah)
Estimated runtime (h) = Usable pack energy (Wh) × System efficiency ÷ Device power (W)

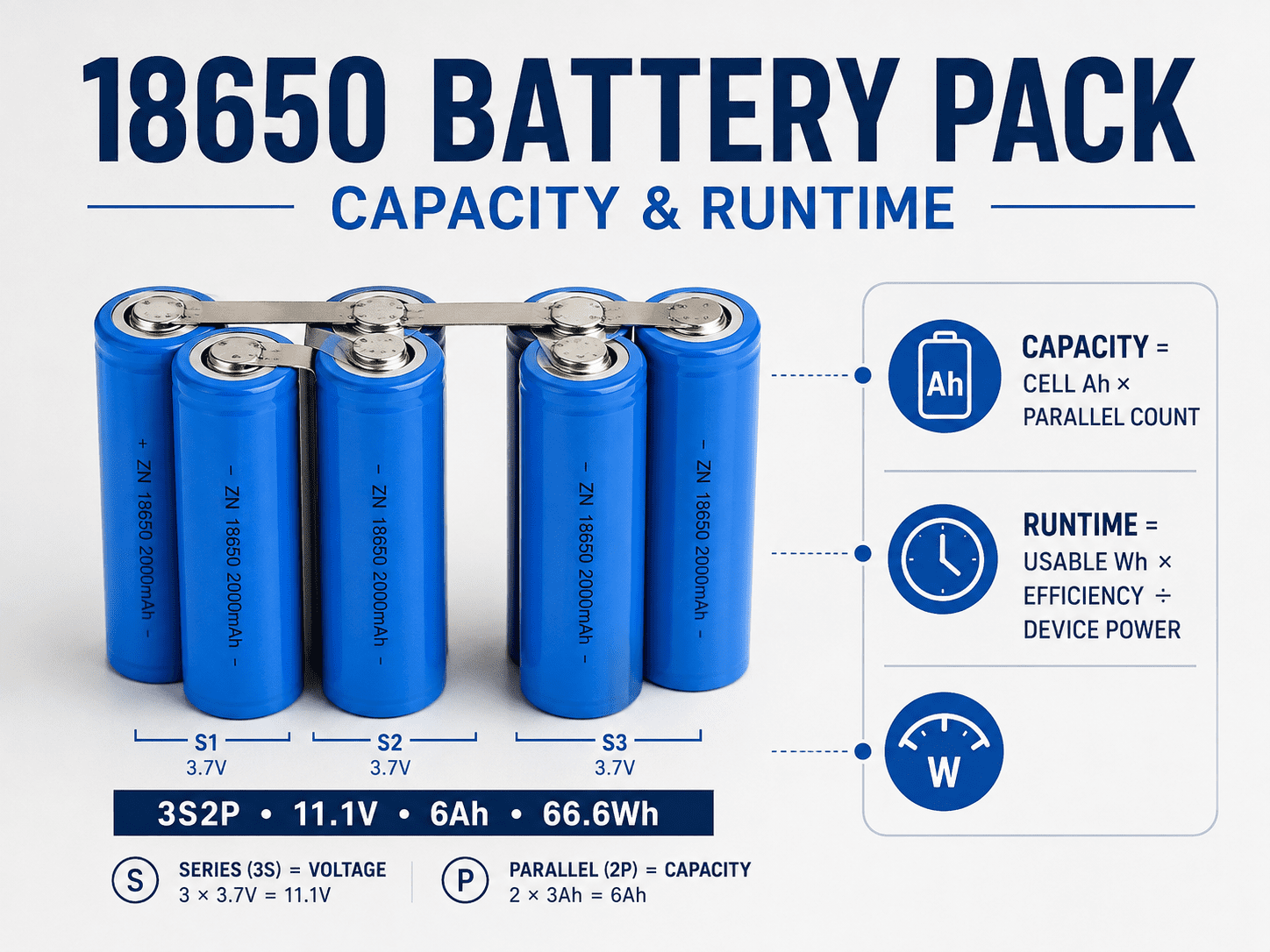

For example, a 3S2P battery pack using 3000mAh 18650 cells has:
Nominal voltage: 11.1V
Capacity: 6Ah
Nominal energy: 66.6Wh
If the device consumes 10W and the system efficiency is 90%, the theoretical runtime is approximately 5.99 hours before considering reserve capacity, battery aging, temperature, and voltage cutoff.
These calculations provide an initial estimate. The actual runtime should be confirmed through testing with the target equipment and load profile. That verification should include both pack-level load testing and the cell-level checks described in 18650 battery capacity and health testing.
The following examples use 3000mAh cells and a nominal cell voltage of 3.7V.
Configuration | Total Cells | Nominal Voltage | Pack Capacity | Nominal Energy |
|---|---|---|---|---|
3S1P | 3 | 11.1V | 3Ah | 33.3Wh |
3S2P | 6 | 11.1V | 6Ah | 66.6Wh |
3S3P | 9 | 11.1V | 9Ah | 99.9Wh |
For a 10W device with 90% system efficiency:
Configuration | Nominal Energy | Estimated Runtime |
3S1P | 33.3Wh | Approximately 3.0 hours |
3S2P | 66.6Wh | Approximately 6.0 hours |
3S3P | 99.9Wh | Approximately 9.0 hours |
These results assume that the full nominal capacity is available. In practical use, the available runtime may be lower because of the discharge cutoff, temperature, aging, voltage conversion, and load changes.
These reference values are useful for checking the formulas before entering a custom configuration.
Battery capacity is commonly expressed in milliampere-hours, or mAh, and ampere-hours, or Ah.
The conversion is:
1Ah = 1000mAh
Examples:
2000mAh = 2Ah
2600mAh = 2.6Ah
3000mAh = 3Ah
3500mAh = 3.5Ah
When calculating a battery pack, it is usually easier to convert the cell capacity from mAh to Ah first.
For example:
3000mAh ÷ 1000 = 3Ah
The capacity figure indicates how much electrical charge a cell can deliver under specified test conditions. It does not directly indicate the pack voltage, maximum current, or runtime. Common 18650 capacity ranges and the difference between capacity and discharge current are summarized in how many mAh an 18650 battery has.
A 3000mAh cell does not automatically deliver 3A or 30A. Capacity and discharge current are different specifications.
A cell’s current capability depends on:
Cell design
Internal resistance
Continuous discharge rating
Peak discharge rating
Temperature
BMS and wiring limitations
Capacity is used to estimate how long a battery can operate a load. Current capability determines whether the cell can safely support that load.
For capacity calculations, the key distinction is simple: series and parallel 18650 battery connections determine how voltage, capacity, and current are distributed across the pack.

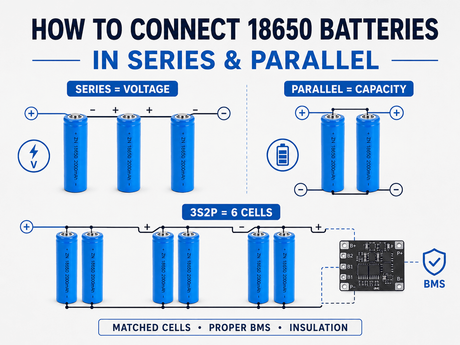

Series connections increase voltage.
Parallel connections increase capacity.
Series connections do not multiply ampere-hour capacity.
Parallel connections do not increase the nominal voltage of the cell group.
When identical cells are connected in series, the voltage adds together while the ampere-hour capacity remains similar to that of one cell in the series string.
For example, using 3000mAh cells:
1S1P: 3.7V, 3Ah
2S1P: 7.4V, 3Ah
3S1P: 11.1V, 3Ah
4S1P: 14.8V, 3Ah
The energy increases because the voltage increases:
11.1V × 3Ah = 33.3Wh
When identical cells are connected in parallel, the voltage remains at the nominal voltage of one cell while the ampere-hour capacity increases.
Using 3000mAh cells:
1S1P: 3.7V, 3Ah
1S2P: 3.7V, 6Ah
1S3P: 3.7V, 9Ah
The parallel count is therefore the main factor used in pack capacity calculations.
Using 3000mAh, 3.7V cells:
Three cells total
Three series groups
One cell in each group
Nominal voltage: 11.1V
Capacity: 3Ah
Energy: 33.3Wh
Six cells total
Three series groups
Two cells in parallel in each group
Nominal voltage: 11.1V
Capacity: 6Ah
Energy: 66.6Wh
Nine cells total
Three series groups
Three cells in parallel in each group
Nominal voltage: 11.1V
Capacity: 9Ah
Energy: 99.9Wh

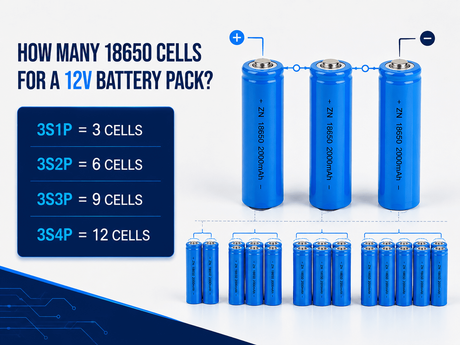

The 3S configuration is commonly described as a 12V-class lithium-ion battery pack; the 12V 18650 battery pack example shows how series count, nominal voltage, and cell count relate.
The basic capacity formula is:
Pack capacity (Ah) = Cell capacity (Ah) × Parallel count
For 3000mAh cells:
Configuration | Cell Capacity | Parallel Count | Pack Capacity |
3S1P | 3Ah | 1P | 3Ah |
3S2P | 3Ah | 2P | 6Ah |
3S3P | 3Ah | 3P | 9Ah |
The series count does not appear in the capacity formula because series connections mainly affect voltage.
If a different cell capacity is used, the result changes accordingly.
For example, a 3S2P pack using 3500mAh cells has:
3.5Ah × 2 = 7Ah
The pack still has a nominal voltage of approximately 11.1V, but its capacity increases from 6Ah to 7Ah compared with a 3S2P pack using 3000mAh cells.
Capacity in Ah does not tell you the total energy unless voltage is included.
The energy formula is:
Pack energy (Wh) = Nominal voltage (V) × Pack capacity (Ah)
Examples:
11.1V × 3Ah = 33.3Wh
11.1V × 6Ah = 66.6Wh
11.1V × 9Ah = 99.9Wh
When comparing different battery configurations, watt-hours are usually more useful than ampere-hours because they include both voltage and capacity.
For example, a 3.7V 6Ah battery and an 11.1V 6Ah battery do not store the same amount of energy:
3.7V × 6Ah = 22.2Wh
11.1V × 6Ah = 66.6Wh
The voltage must always be included in the calculation.
Runtime calculations require the device’s power consumption.
If the device power is already provided in watts, use that value directly.
If the device’s voltage and current are provided, use:
Device power (W) = Device voltage (V) × Device current (A)
For example:
Device input voltage: 12V
Operating current: 1.5A
12V × 1.5A = 18W
The estimated runtime can then be calculated from the pack energy and the 18W load.
Many devices do not consume a constant amount of power. A GPS tracker, wireless device, medical instrument, or robotic system may have different operating modes.
A practical estimate should consider:
Startup power
Continuous operating power
Standby power
Motor or actuator peaks
Wireless transmission periods
Display or sensor activity
Duty cycle
For a variable load, use the average power rather than the highest short-term power value.
For example, if a device consumes 12W during active operation but remains in a 2W standby mode for half of the time, its average power will be lower than 12W. Using only the maximum load could underestimate runtime, while using only standby power could produce an unrealistic result.
The basic runtime formula is:
Runtime (h) = Pack energy (Wh) × System efficiency ÷ Device power (W)
For a 3S2P pack using 3000mAh cells:
Nominal energy: 66.6Wh
Device power: 10W
System efficiency: 90%
66.6Wh × 0.90 ÷ 10W = 5.99 hours
The estimated runtime is approximately 6 hours under these conditions.
Using the same 66.6Wh battery pack and 90% system efficiency:
Device Load | Estimated Runtime |
5W | Approximately 11.99 hours |
10W | Approximately 5.99 hours |
20W | Approximately 3.00 hours |
30W | Approximately 2.00 hours |
The relationship is not always perfectly linear in real use because higher current loads can reduce usable capacity and increase voltage drop.
The battery pack may not connect directly to the device. Many products use:
DC-DC converters
Voltage regulators
Inverters
Motor controllers
Protection components
Power management circuits
Each component can introduce energy loss.
If the nominal battery energy is 66.6Wh and the system efficiency is 90%:
66.6Wh × 90% = 59.94Wh usable after conversion losses
For a 10W load:
59.94Wh ÷ 10W = 5.99 hours
If the efficiency falls to 80%:
66.6Wh × 80% ÷ 10W = 5.33 hours
This difference can be significant in applications that operate for many hours or have high conversion losses.
Rated capacity is not always fully available in an operating device.
The actual usable capacity may be reduced by:
BMS cutoff voltage
Device undervoltage protection
High discharge current
Cell aging
Low temperature
Internal resistance
Voltage converter requirements
Battery pack imbalance
A device may stop working before every cell has delivered its full datasheet capacity because the pack voltage has reached the system’s minimum input voltage. The 18650 battery voltage guide explains how nominal, full-charge, and cutoff values define the usable voltage range in a lithium-ion pack.
A more conservative formula is:
Runtime = Nominal energy × Usable capacity fraction × System efficiency ÷ Device power
Using the same 3S2P pack:
Nominal energy: 66.6Wh
Estimated usable capacity fraction: 85%
System efficiency: 90%
Device power: 10W
66.6Wh × 85% × 90% ÷ 10W = 5.09 hours
This estimate is lower than the theoretical 5.99 hours because it allows for reserve energy and the pack’s actual operating limits.
The usable capacity fraction should be based on testing whenever possible. It should not be treated as a universal value for every battery pack.
The calculated result is only an estimate. Actual runtime may change because of:
Low temperatures can reduce available capacity and increase internal resistance. High temperatures can accelerate aging and may cause the protection system to limit operation.
As cells age, their capacity may decrease and internal resistance may increase. The effects of temperature, depth of discharge, load, and storage on service life are discussed in how long 18650 batteries last. A pack made with older cells may provide less runtime than a pack using new cells with the same rated capacity.
High current can cause greater voltage sag and heat generation. The equipment may reach its low-voltage limit earlier than expected. For high-current equipment, the cell’s continuous and peak discharge limits should be checked through high-drain 18650 battery selection, rather than inferred from capacity alone.
A device with motors, wireless communication, displays, or changing operating modes may draw more power at certain times.
Long wires, small conductors, poor solder joints, and undersized connectors can create additional voltage drop and energy loss.

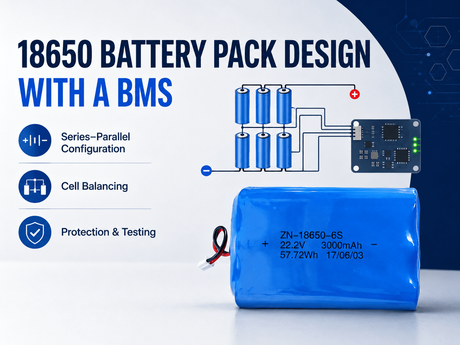

Differences between series groups can reduce the usable portion of the pack. One group may reach its protection limit before the other groups. Series-group balance, protection thresholds, and temperature monitoring are part of the BMS design for an 18650 battery pack. Cell capacity, internal resistance, voltage, and batch differences also affect pack balance; cell matching for an 18650 battery pack explains how these variables are controlled before assembly.

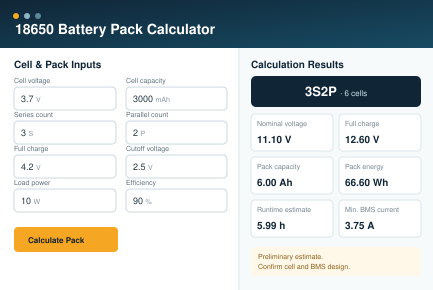

The 18650 Battery Pack Calculator can be used to estimate key pack parameters before selecting a final configuration.
Typical inputs include:
Cell capacity
Cell nominal voltage
Series count
Parallel count
Device load power
System efficiency
Typical outputs include:
Total cell count
Pack nominal voltage
Full-charge voltage
Cutoff voltage
Pack capacity
Pack energy
Estimated runtime
The calculator is useful during the early design stage, but the final battery pack should still be tested with the actual device, wiring, converter, and operating environment.
For an OEM project, capacity calculation is only one part of the specification. The cell and pack must also be selected against voltage, continuous and peak current, runtime, available space, charging, BMS, thermal conditions, and sample validation; how to choose an 18650 battery for an OEM device frames these requirements at the product level.
The final pack design should also confirm:
Required nominal voltage
Maximum charging voltage
Continuous load current
Peak load current
Target runtime
Available installation space
Operating temperature
Connector type
Wire length and gauge
BMS requirements
Sample test conditions
Production tolerance
The selected cell capacity should not be maximized without checking current capability and available space. A higher-capacity cell may have a lower discharge rating, while a high-current cell may provide less capacity.
For customized battery packs, ZERNE’s 18650 battery pack solutions and custom 18650 battery solutions can be evaluated against the required voltage, capacity, current, BMS, connectors, enclosure, and sample-testing requirements.
Using mAh without converting it to Ah.
Multiplying capacity by the series count.
Forgetting that parallel count increases capacity.
Calculating runtime from voltage without including capacity.
Treating nominal energy as fully usable energy.
Ignoring DC-DC converter efficiency.
Using maximum device power when average power is required, or the opposite.
Ignoring startup and peak current.
Applying the same runtime estimate to different temperatures.
Assuming a higher mAh rating automatically means higher current capability.
Ignoring voltage cutoff and device shutdown limits.
Using a theoretical calculation without testing the complete pack.
Multiply the capacity of one cell in ampere-hours by the number of cells connected in parallel:
Pack capacity = Cell capacity × Parallel count
For example, a 3S2P pack using 3000mAh cells has a capacity of 6Ah.
No. Series connections mainly increase voltage. The ampere-hour capacity remains similar to that of one cell in the series string.
Yes. Parallel cells add their capacity together while maintaining the same nominal voltage.
Using 3000mAh cells, a 3S2P pack has approximately:
11.1V × 6Ah = 66.6Wh
The actual usable energy may be lower because of cutoff voltage, efficiency, temperature, and aging.
Using a nominal energy of 66.6Wh and 90% system efficiency:
66.6Wh × 90% ÷ 10W ≈ 5.99 hours
The actual runtime may be lower when reserve capacity, aging, and voltage cutoff are included.
mAh or Ah describes electrical charge capacity. Wh includes both capacity and voltage:
Wh = V × Ah
Watt-hours are usually more useful for comparing the total energy of battery packs with different voltages.
The battery may stop supplying power when the pack reaches the BMS or device cutoff voltage. This means some of the nominal capacity may remain unavailable under the selected operating conditions.
Usually it can provide more energy when used under suitable conditions, but runtime also depends on current rating, temperature, cell age, conversion efficiency, and the device load.
No. The calculation should be used for early design and comparison. The final runtime should be verified with a complete battery pack and the actual device under representative operating conditions.
Calculating 18650 battery pack capacity and runtime requires more than multiplying the cell’s mAh rating.
The main formulas are:
Pack capacity = Cell capacity × Parallel count
Pack energy = Nominal voltage × Pack capacity
Runtime = Usable energy × System efficiency ÷ Device power
For a 3S pack, the series count establishes the voltage class. The parallel count determines the capacity and affects the available current. A 3S1P pack using 3000mAh cells provides approximately 3Ah, while 3S2P provides 6Ah and 3S3P provides 9Ah.
A realistic runtime estimate should also account for usable capacity, cutoff voltage, conversion losses, temperature, battery aging, current demand, and changing device loads.
For OEM battery development, calculations provide the starting point. Prototype testing with the actual equipment is still required before the battery pack is approved for production.
