A safe 18650 battery recharge starts with identifying the cell or battery pack correctly. The label “18650” mainly describes the cylindrical cell format; it does not provide the complete charging specification.
Before charging, confirm the battery chemistry, cell configuration, recommended charging current, and required charging voltage. A conventional single-cell lithium-ion 18650 battery should be charged with a dedicated Li-ion charger that uses controlled constant-current and constant-voltage charging. A multi-cell battery pack requires a charger matched to its series configuration and a suitable battery management system (BMS).
Do not connect a bare 18650 cell directly to a USB adapter, generic power supply, or improvised wiring. The correct charger must control both voltage and current and must stop or reduce charging when the battery reaches its charging limit.
A safe 18650 battery recharge uses a charger matched to the cell chemistry, series configuration, full-charge voltage, and permitted current. A standard single-cell Li-ion 18650 normally uses controlled constant-current and constant-voltage charging, while a multi-cell pack requires a charger designed for its series count and compatible BMS. Use this checklist before starting:
Check | Safe practice |
|---|---|
Battery chemistry | Confirm whether the cell is standard Li-ion, LiFePO4, or another chemistry |
Cell configuration | Identify whether it is a single cell, 1S pack, or multi-cell pack |
Charger | Match the charger to the chemistry, series count, and charging current |
Cell condition | Do not charge damaged, swollen, leaking, or overheated cells |
Charging process | Use controlled pre-charge, constant-current, constant-voltage, and termination stages when required |
Charging environment | Charge on a stable, dry, ventilated, non-flammable surface |
Monitoring | Stop charging if the cell becomes unusually hot, smells abnormal, or changes shape |
The charger should be selected from the battery specifications, not only from the physical size of the cell.
The term “18650” refers mainly to the physical format of a cylindrical cell. Different 18650 cells may have different:
Battery chemistries
Nominal voltages
Full-charge voltages
Capacities
Maximum charging currents
Discharge currents
Operating temperature ranges
Protection requirements
Most commonly used 18650 cells are lithium-ion cells, but not every 18650 cell follows the same charging profile. For example, a standard Li-ion cell and a LiFePO4 cell require different charging voltages and charging controls.
The cell datasheet should be the starting point for charger selection. Do not assume that a charger is compatible simply because the battery fits inside the charging slot.
Before connecting a charger, determine which type of battery you have:
A single loose 18650 cell
A protected single cell
A 1S battery pack
A 2S, 3S, or higher-series battery pack
A battery pack with an integrated BMS and charging port
A device with a built-in charging circuit
A protected cell may include a small protection circuit, but that circuit does not replace a proper charger. It may interrupt charging when a protection threshold is reached, yet it does not provide the complete charging profile required by the cell. This distinction matters when choosing between protected and unprotected 18650 cells for a device or battery pack.
Do not continue charging a cell if you notice:
A torn or damaged outer wrapper
A missing positive-terminal insulating ring
Severe dents or deformation
Leakage, swelling, or an unusual odor
A history of short circuit or reverse connection
Rapid temperature rise during charging
Signs of corrosion
Extremely low voltage outside the manufacturer’s recommended range
A damaged wrapper can allow the metal casing to contact another conductive surface and create a short circuit. If a cell has been physically damaged, replacing it is safer than attempting to recover it.
A cell that reads 0V or has been deeply over-discharged should not be treated as a normal rechargeable cell. The reading may be related to a protection cutoff, a damaged connection, a measurement problem, or an internal failure.
Do not bypass the charger’s pre-charge and protection functions or force current into an unknown cell. The acceptable recovery range depends on the cell model and manufacturer’s instructions. If the cell’s condition cannot be verified, isolate it and replace it or send it for appropriate battery assessment and recycling.
A suitable lithium-ion charger normally manages several charging stages. The exact thresholds and current values depend on the cell model and chemistry.
Some chargers begin with a low-current pre-charge when the battery voltage is below the normal fast-charge threshold.
This stage is intended for an undercharged cell that remains within an acceptable safety range. It is not a way to restore every deeply discharged or damaged battery. If the cell becomes hot, remains unrecognized, or shows physical damage, charging should stop.
During the constant-current stage, the charger supplies a controlled current to the battery.
The charging current must remain within the cell manufacturer’s limits. A higher current may shorten charging time, but it can also increase heat and reduce battery life if the cell is not designed for it.
Do not use the cell’s maximum discharge current as its charging current. These are separate specifications.
When the cell reaches its specified charging voltage, the charger changes to constant-voltage control. The charger maintains the voltage while the charging current gradually decreases.
This tapering stage is important because the battery is not charged at the maximum current all the way to full capacity. The charger should end the cycle when the current falls below its termination threshold or when another approved termination condition is reached.
The selected chemistry and series count determine the charging voltage. Nominal voltage, full-charge voltage, and cutoff voltage should be interpreted together rather than chosen from the pack’s marketing label alone.
The charger must support the chemistry of the battery being charged.
Battery type | Required charging system |
Conventional Li-ion 18650 cell | Li-ion charger with the correct cell voltage |
LiFePO4 18650 cell | LiFePO4-compatible charger |
1S Li-ion battery pack | 1S Li-ion charging circuit or charger |
2S or 3S Li-ion battery pack | Charger matched to the series count and pack BMS |
Custom battery pack | Charger specified for the complete pack design |
A LiFePO4 cell should not be charged with a standard Li-ion charger simply because both cells use the 18650 format.
The charger must be compatible with the number of cells connected in series.
A single-cell charger is intended for one cell or a 1S pack. It should not be connected directly to a 2S, 3S, or higher-series pack.
For a multi-cell pack, the charger must work with:
The number of cells in series
The pack’s full-charge voltage
The BMS charging limits
The required charging current
The pack’s charging connector
A battery pack described as a “12V battery” may use three Li-ion cells in series, but the correct charger still depends on the actual cell chemistry, series configuration, and BMS design.
Charging current is usually expressed in amperes or as a C-rate.
The basic C-rate formula is:
C-rate = Charging current (A) ÷ Battery capacity (Ah)For example, charging a 3Ah cell at 1.5A represents approximately 0.5C. Whether that current is appropriate depends on the cell’s datasheet.
For a battery pack, use the lowest applicable limit among:
The cell’s recommended charging current
The total parallel-group charging capability
The BMS charging-current rating
The charger output
The wiring, connector, and thermal design limits
Parallel cells may increase the total charging capability, but the complete pack still needs to be validated as a system.
Charging temperature limits depend on the specific 18650 cell and should be confirmed from the manufacturer’s datasheet. Do not apply one universal temperature range to every 18650 battery.
Charging a cell below its permitted temperature range may increase the risk of lithium plating and permanent performance loss. Charging at excessive temperatures can accelerate aging, increase internal stress, and create abnormal heat.
If the cell is very cold, hot, or has recently been exposed to a high-temperature environment, allow it to return to an approved charging condition before starting the cycle. Stop charging if the temperature rises sharply or continues to increase abnormally.
A suitable charger should include protections appropriate for the application, such as:
Overcharge protection
Reverse-polarity protection
Short-circuit protection
Over-temperature protection
Input overvoltage protection
Charging timeout protection
Controlled charge termination
Battery fault detection
Independent channel control for multi-slot chargers
For OEM products, the charger should be evaluated together with the battery pack and BMS. A charger that works for a loose single cell may not be suitable for an integrated industrial battery pack.
A USB input can be part of a proper 18650 charging circuit, but a USB cable or power adapter alone is not a charger for a bare cell. A USB adapter provides power, but it is not automatically an 18650 battery charger.
USB charging is suitable only when the product includes a properly designed Li-ion charging circuit between the USB input and the battery. The charging circuit must regulate the current and voltage and manage the end of the charging cycle.
Do not connect a bare 18650 cell directly to:
A USB cable
A phone charger
A USB-C power adapter
A generic DC adapter
An unconfigured bench power supply
USB-C Power Delivery can provide different output levels, but it still does not replace the battery charging circuit required by the cell.
A TP4056-type module may be suitable for a compatible single-cell lithium-ion application, but it is not a universal charger for every 18650 cell or battery pack.
Before using such a module, confirm its charging voltage, charging current, protection arrangement, thermal conditions, and compatibility with the cell chemistry. A 1S charging module must not be used for a 2S, 3S, or higher-series battery pack.
It should also not be used to force-charge a damaged, unknown, swollen, leaking, or deeply over-discharged cell. For an OEM product or a finished battery pack, the charging circuit, BMS, connector, and battery cells should be evaluated as one complete system.
Confirm the following information before charging:
Battery chemistry
Nominal capacity
Recommended charging current
Maximum charging current
Required charging voltage
Charging temperature range
Single-cell or multi-cell configuration
Whether the battery includes a protection circuit or BMS
If the specifications are missing or unclear, do not guess the charging parameters.
Check the cell wrapper, positive terminal, negative terminal, and charger contacts.
Make sure:
The wrapper is intact
The insulating ring is present
The cell is not swollen or dented
The charger contacts are clean
The charger cable is not damaged
The charger is designed for the battery chemistry
Also confirm that the cell’s physical format matches the charger. Protected 18650 cells may be longer than unprotected cells because of the added protection circuit. Flat-top and button-top terminals may also make different contact with the charger.
Do not force a cell into a slot that is too short, too narrow, or unable to maintain stable contact. The charger must match both the electrical specifications and the physical dimensions of the battery.
Place the cell into the charger according to the positive and negative markings.
Do not force an oversized or undersized cell into the charging slot. Do not continue if the charger becomes hot, sparks, or fails to recognize the battery.
When using a multi-slot charger, follow the manufacturer’s instructions about whether different cells can be charged at the same time. Do not mix cells with different specifications unless the charging equipment is specifically designed to manage them independently.
Charge the battery on a stable, dry, and non-flammable surface.
Keep the charger away from:
Paper and fabrics
Direct sunlight
High-temperature equipment
Water and condensation
Enclosed spaces with poor ventilation
Flammable chemicals
Do not cover the charger during operation. Heat produced by the charger and battery must be able to dissipate.
Watch the charger during the initial part of the charging cycle, especially when using a new battery or charger.
Pay attention to:
The charger’s indicator or display
Unusual temperature rise
Abnormal odor
Hissing or crackling sounds
Battery deformation
A charging time that is much longer or shorter than expected
A small temperature increase may occur during normal charging. A sharp temperature rise or a cell that becomes too hot to touch is not normal.
Allow the charger to complete its programmed charging cycle.
Do not remove the battery early if the application requires a full charge, and do not continue charging with an improvised power source after the charger indicates completion.
Charging completion should be determined by the charger’s termination logic and the battery specifications, not by a fixed timer alone.
After charging is complete, remove a loose cell from the charger.
If the battery will not be used immediately:
Keep the terminals protected from metal objects
Store the cell in a suitable battery case
Avoid high temperatures and moisture
Follow the cell manufacturer’s storage recommendations
Do not store damaged cells with usable batteries
If the cell will not be used immediately, follow the recommended storage practices for 18650 batteries, including the appropriate state of charge, temperature, and terminal protection.
Charging time depends on the battery capacity, starting state of charge, charging current, cell temperature, cell age, and charger design.
A useful planning formula is:
Estimated charging time ≈
[Battery capacity (Ah) × Fraction of capacity to replace]
÷ Charging current (A)
+ Constant-voltage taper timeThe constant-voltage stage adds time because the charging current gradually decreases near full charge. Charging time should therefore be estimated from capacity and current, while also allowing for the constant-voltage taper and system conditions.
The following table is an estimation for a 3000mAh cell. The selected current must be allowed by the specific cell datasheet.
Charging current | Approximate constant-current time | Practical full-charge estimate |
0.5A | About 6 hours | About 6.5–8 hours |
1A | About 3 hours | About 3.5–5 hours |
2A | About 1.5 hours | About 2–3 hours |
These figures are planning estimates rather than universal charging times. A cell may take longer when:
It starts at a very low state of charge
The charger reduces current because of heat
The cell is aged or has increased internal resistance
The charger uses a conservative termination threshold
The cell is being charged at a low temperature
The battery pack requires balancing
A charger rated at 2A does not mean every 3000mAh 18650 cell can safely accept 2A.
For a battery pack, use the pack’s Ah capacity rather than the capacity of one cell. Before estimating pack charging time, check the pack’s series count, parallel count, capacity, and energy with the 18650 battery pack calculator.
Estimated pack charging time ≈
Pack capacity (Ah) ÷ Charger current (A)
+ Constant-voltage and balancing timeFor example, a 3S2P pack made from 3000mAh cells has a nominal capacity of approximately 6Ah. With a 1A charger, the constant-current portion may take roughly six hours, followed by additional constant-voltage and balancing time.
The actual charging time also depends on:
The BMS charging-current limit
Cell-to-cell voltage differences
Balancing current
Pack temperature
Charger efficiency
Connector and wiring resistance
The initial state of charge
The total number of cells alone does not determine charging time.
A multi-cell battery pack needs a charger matched to its series configuration.
For example:
A 1S pack requires a 1S charging system
A 2S pack requires a 2S charging system
A 3S pack requires a 3S charging system
Higher-series packs require chargers designed for their specific configuration
Do not choose a charger only by the pack’s marketing voltage. Confirm the actual series count and full-charge specification.
A BMS can monitor cell groups and provide functions such as:
Overcharge protection
Over-discharge protection
Overcurrent protection
Short-circuit protection
Temperature monitoring
Cell balancing
However, a BMS does not automatically turn a generic power adapter into a complete battery charger. The charger and BMS must be designed to work together.
If a BMS prevents charging, do not bypass it without diagnosing the cause. The problem may be related to cell imbalance, over-temperature, incorrect wiring, or a damaged cell. If the charger still refuses to start after these checks, stop trying to force another cycle and inspect the charger, contacts, protection circuit, and battery condition.
Use the charging port specified by the battery manufacturer.
Do not:
Connect a charger directly to individual cells in a finished pack
Bypass the BMS
Charge through an unapproved connector
Use the discharge port unless the pack is designed for charge and discharge through the same port
Alter the balance wiring without engineering validation

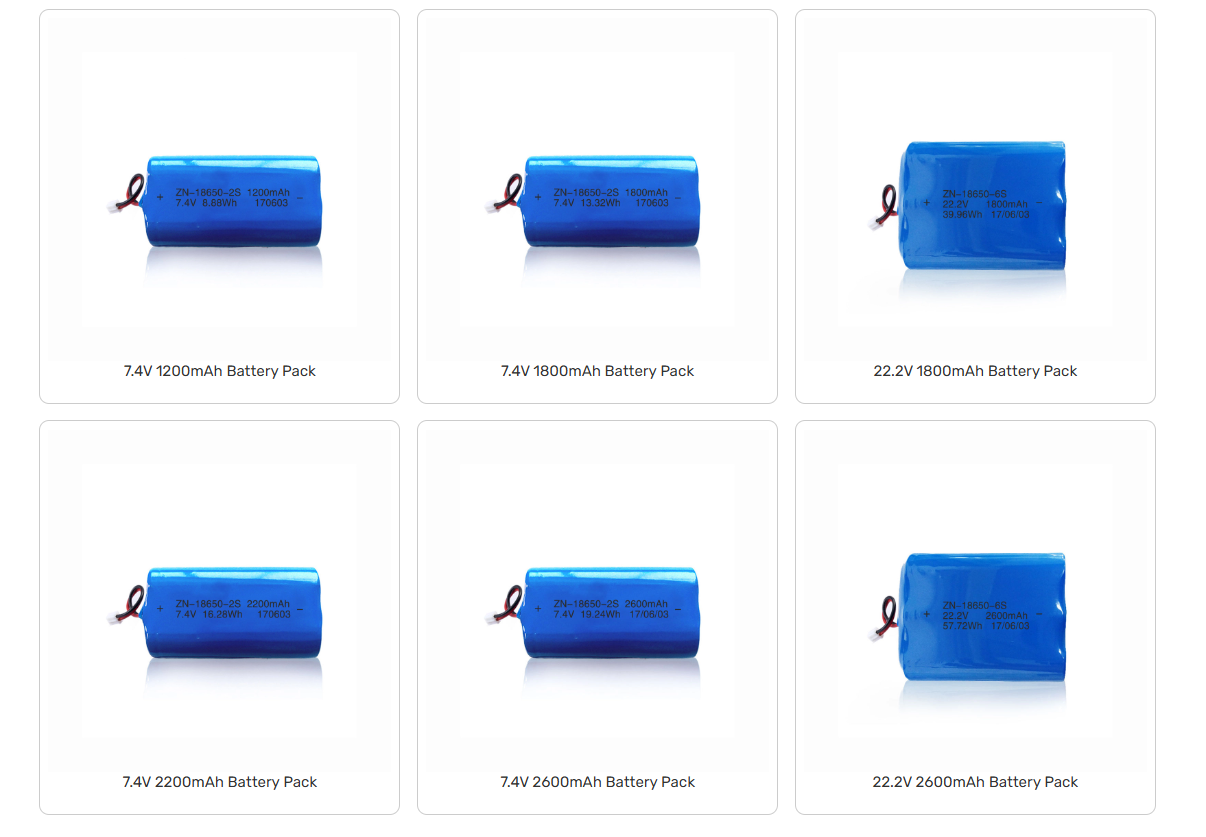

When a pack must combine matched cells, BMS integration, a defined charging interface, a custom connector, and a specific enclosure, these requirements are best evaluated as one complete design. ZERNE supports custom 18650 battery pack development for these applications.
Stop the charging process if the battery becomes unusually hot or the temperature continues to rise.
Other warning signs include:
Swelling
Hissing
Smoke
Strong chemical odor
Leakage
Discoloration
Charger error
Sudden loss of contact
Rapid or abnormal charging
If there is smoke, fire, or a rapid thermal reaction, do not attempt to handle, puncture, or carry the battery. Move away from the area and follow the appropriate emergency and hazardous-battery procedures.
A battery that has overheated during charging should not simply be placed back into the charger after it cools. It should be inspected or replaced.
A power adapter may provide the correct nominal voltage but still lack current control, charge termination, temperature monitoring, and battery fault detection.
A standard Li-ion charger is not automatically suitable for LiFePO4 or other chemistries.
A single-cell charger cannot properly charge a 2S, 3S, or higher-series pack.
The BMS protects and monitors the pack, but it does not replace a correctly configured charger.
A damaged wrapper, dented casing, swelling, leakage, or abnormal heat is a reason to stop using the cell.
Do not mix cells with different capacities, brands, models, ages, or charge histories in the same pack.
Loose 18650 cells should not be left charging while you are asleep or away from the charging area. Use a charger with appropriate automatic controls and follow the battery manufacturer’s instructions.
A 0V reading does not always identify the exact cause. It may result from a protection cutoff, poor contact, a measurement problem, or internal cell failure. Do not force-charge a 0V or deeply over-discharged cell without confirming its condition and the manufacturer’s instructions. If the cell is damaged or its condition is unknown, isolate and replace it.
A TP4056-type module may be suitable for a compatible single-cell lithium-ion application. It is not suitable for every 18650 cell, chemistry, or battery pack. Confirm the module’s voltage, current, protection, and thermal requirements, and never use a 1S module to charge a 2S, 3S, or higher-series pack.
Only when the product includes a proper Li-ion charging circuit between the USB input and the battery. A bare 18650 cell should not be connected directly to a USB charger or cable.
You need a charger that matches the battery chemistry, cell count, charging voltage, and permitted charging current. A single-cell Li-ion charger is suitable only for compatible single-cell or 1S Li-ion applications.
A 3000mAh cell may take roughly three to five hours with a 1A charger, including the constant-voltage stage. The exact time depends on the cell, starting charge level, temperature, and charger termination settings.
It is better not to leave a loose cell charging overnight or while you are away. Use a charger with automatic termination, place it on a safe surface, and follow the manufacturer’s charging instructions.
Use the charger’s completion indicator and the battery specifications. Charging time alone is not a reliable way to determine whether a cell is full.
Do not use improvised wiring, a USB cable, or a generic power supply to charge an 18650 cell. A proper charging circuit is required to control current, voltage, and charging termination.
No. A 3S battery pack needs a charger designed for a 3S configuration and a compatible BMS. A single-cell charger does not provide the correct pack charging control.
A protected cell can be charged only with a charger compatible with the cell chemistry and specifications. The protection circuit adds a safety function, but it does not replace the charger.
Possible causes include excessive charging current, a damaged cell, high internal resistance, a poor connection, an incompatible charger, or a temperature-related fault. Stop charging if the heat is excessive or continues to increase.
For a commercial product, safe charging depends on more than the cell itself. The battery, BMS, charger, connector, enclosure, and charging environment should be evaluated as one system.
ZERNE can support projects involving:
Cell selection
Series and parallel configuration
Capacity and current planning
BMS selection
Charging interface design
Connector and cable customization
Mechanical protection and insulation
Sample development
Battery testing
Certification and transport documentation
The right starting point is the device’s voltage, capacity, load current, operating time, available installation space, charging method, and target-market requirements. ZERNE can use these inputs to evaluate a custom 18650 battery pack for the product.
Charging an 18650 battery safely requires the right charger, the correct charging process, and a battery in good condition.
Always confirm the cell chemistry and specifications before charging. Use a controlled charger with appropriate current and voltage regulation. Inspect the cell before use, monitor the charging process, and stop immediately if the battery becomes unusually hot, swollen, damaged, or emits an abnormal odor.
For multi-cell battery packs, match the charger to the series configuration and use a properly designed BMS. Safe charging is a system-level requirement, not something that can be solved by selecting an adapter with the right label.
