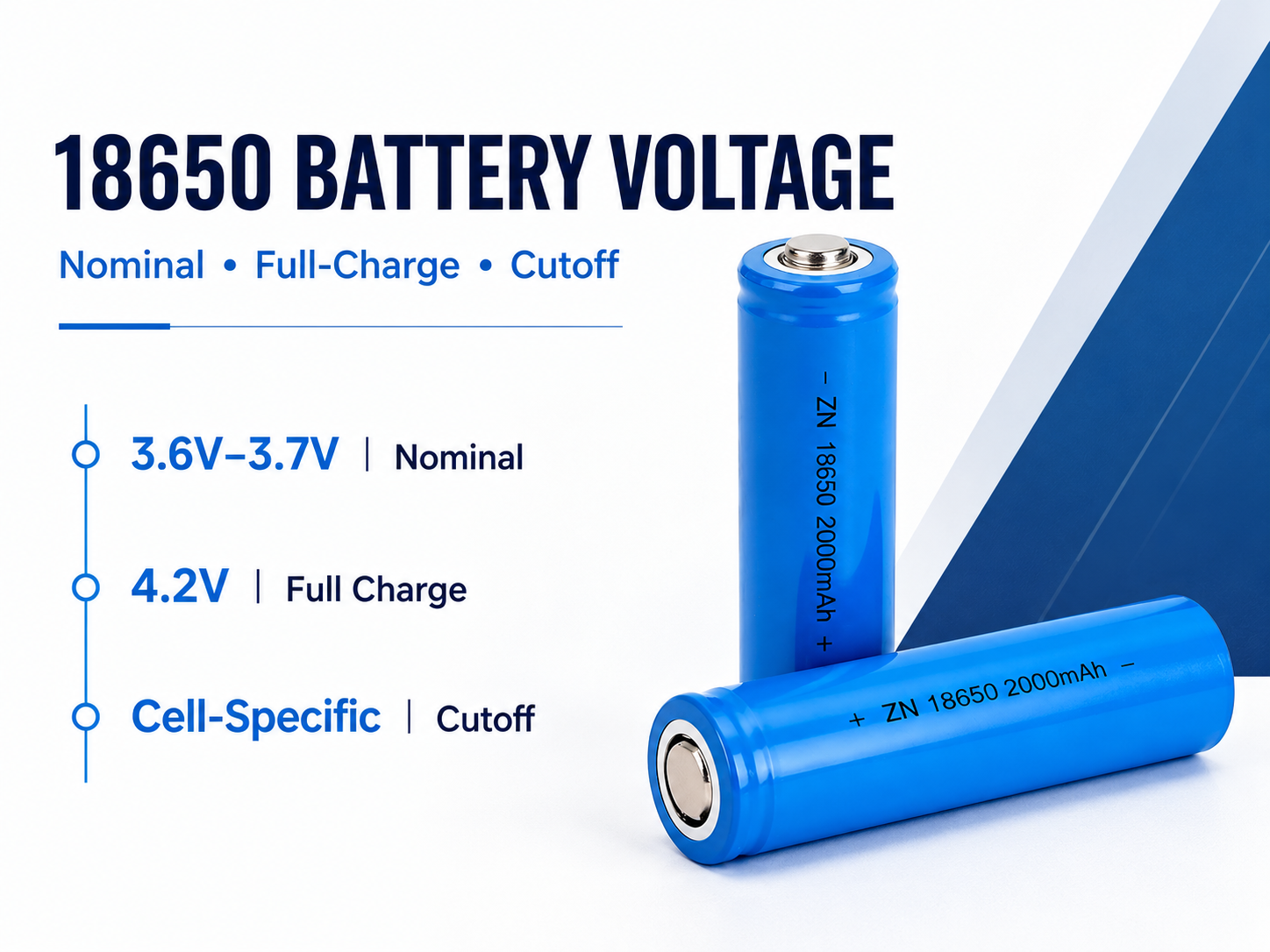

The voltage of an 18650 battery is commonly described as 3.6V or 3.7V nominal. Many standard lithium-ion cells reach 4.2V at full charge, while the discharge cutoff depends on the cell model, operating conditions, and battery management system.
In simple terms:
Voltage Term | Typical Value | Meaning |
|---|---|---|
Nominal voltage | 3.6V or 3.7V | The rated voltage used to describe normal operation |
Full-charge voltage | Usually 4.2V | The voltage reached at the end of a complete charge |
Cutoff voltage | Depends on the cell specification | The lowest permitted discharge limit |
2S pack nominal voltage | Around 7.2V–7.4V | Two cells or cell groups connected in series |
3S pack nominal voltage | Around 10.8V–11.1V | Three cells or cell groups connected in series |
4S pack nominal voltage | Around 14.4V–14.8V | Four cells or cell groups connected in series |
The selected cell’s datasheet is the reference for the actual voltage. The term “18650” identifies the cell format, but it does not define every electrical parameter.
“18650” primarily identifies the physical format of a cylindrical lithium-ion cell:
Approximately 18 mm in diameter
Approximately 65 mm in length
Cylindrical cell construction
This means that 18650 is a size designation rather than a complete electrical specification. Two 18650 cells can have different capacities, discharge rates, internal resistances, and cutoff limits.
ZERNE’s 18650 lithium-ion battery cells are available in different capacity and performance options for industrial and OEM applications.
The number 18650 does not automatically tell you:
The exact nominal voltage
The maximum charging current
The continuous discharge current
The capacity
The internal resistance
The discharge cutoff voltage
The operating temperature range
These specifications must be checked separately.
The nominal voltage is the rated voltage used to represent the normal operating range of a battery cell. Most standard lithium-ion 18650 cells are labeled with a nominal voltage of either 3.6V or 3.7V.
Both 3.6V and 3.7V labels are used for standard lithium-ion 18650 cells. In many cases, the difference comes from how nominal voltage is calculated or reported rather than from a meaningful difference in the cell’s normal operating class.
For most standard lithium-ion applications, the two labels refer to the same nominal voltage class. The selected model’s specifications should guide the final design.
The more important factors include:
Cell chemistry
Operating voltage range
Capacity
Continuous discharge current
Charging requirements
Temperature range
Cycle-life requirements
Requirements of the target device
A cell should not be selected only by comparing the 3.6V or 3.7V label. The selected model’s datasheet is the final reference for the actual operating limits.
Many standard lithium-ion 18650 cells use 4.2V as the full-charge voltage.
This does not mean that the battery is a 4.2V battery. Instead:
3.6V or 3.7V is the nominal voltage.
4.2V is the voltage reached at the end of a full charge.
The voltage gradually decreases as the cell discharges.
A standard lithium-ion cell is normally charged using a constant-current and constant-voltage process. The charger supplies a controlled current first. As the cell approaches its charge voltage, the charger holds the specified voltage while the current gradually decreases.
The charging voltage and current must match the selected cell. Do not apply a 4.2V charging profile to a cell with a different chemistry or charge limit.
The 4.2V charge limit is the focus of Why the Maximum Voltage of a Lithium-Ion Battery Cannot Exceed 4.2V.
The cutoff voltage is the lowest voltage used to stop or limit battery discharge. It is also called the discharge cutoff voltage or end-of-discharge voltage.
There is no fixed cutoff voltage for every 18650 battery.
The correct value depends on:
Cell chemistry
Cell model
Manufacturer specifications
Discharge current
Operating temperature
Required cycle life
BMS settings
Requirements of the application
Some 18650 cells list 2.5V as the lower discharge limit under specified test conditions. That figure applies to the relevant cell and test setup; it should not be copied to every 18650 battery.
For an OEM battery pack, set the cutoff from the selected cell’s specifications and the complete system design—not from a generic “18650 dead voltage” value.
Excessive discharge can cause:
Reduced usable capacity
Higher internal resistance
Lower power output
Increased risk during subsequent charging
Permanent damage in severe cases
A battery that causes a device to shut down is not necessarily completely empty. The device may stop working because of its own low-voltage protection, voltage drop under load, or disconnection by the battery pack BMS.
The voltage of an 18650 cell is not constant throughout its discharge cycle.
A typical voltage pattern may look like this:
Battery State | Typical Voltage Behavior | Explanation |
High state of charge | Above the nominal voltage | A large portion of the usable energy remains |
Normal operating range | Around the nominal voltage | The cell is operating within its rated range |
Low state of charge | Below the nominal voltage | The remaining capacity is decreasing |
Near cutoff | Approaching the specified lower limit | Continued discharge may damage the cell |
The measured voltage can also change depending on whether the battery is:
At rest
Being charged
Supplying current to a load
Operating at a low temperature
Connected through a long or high-resistance cable
A cell may show a relatively normal open-circuit voltage but experience a significant voltage drop when a high current is drawn. This is one reason voltage alone cannot fully describe the health or performance of an 18650 battery.
Capacity, internal resistance, discharge rate, temperature, and cycle life should also be evaluated.
When 18650 cells are connected in series, their voltages add together.
Configuration | Nominal Voltage | Full-Charge Voltage for Standard 4.2V Cells |
1S | Approximately 3.6V–3.7V | Approximately 4.2V |
2S | Approximately 7.2V–7.4V | Approximately 8.4V |
3S | Approximately 10.8V–11.1V | Approximately 12.6V |
4S | Approximately 14.4V–14.8V | Approximately 16.8V |
6S | Approximately 21.6V–22.2V | Approximately 25.2V |
The values in the table apply to standard lithium-ion cells with a 4.2V charge limit. The selected cell’s specifications and the charging system determine the final values.
ZERNE’s 18650 lithium battery pack solutions include configurations such as 2S, 3S, 4S, and 6S packs for different voltage and capacity requirements.
Series connections increase voltage.
Common series configurations include:
A 2S pack uses two cells or two cell groups in series.
A 3S pack uses three cell groups in series.
A 4S pack uses four cell groups in series.
The total voltage depends on the voltage of each cell and the state of charge.
Parallel connections increase capacity and current capability while keeping the nominal voltage approximately the same.
Common parallel configurations include:
1S2P means one series group and two cells in parallel.
3S2P means three series groups, with two cells in parallel in each group.
4S2P means four series groups, with two cells in parallel in each group.
Battery packs using series and parallel connections require appropriate cell matching, protection, and BMS design. When a project requires a specific voltage and capacity, an 18650 battery pack calculator can help estimate the required series and parallel configuration.
A battery management system does not change the nominal voltage of an 18650 cell, but it controls when the battery pack is allowed to charge or discharge.
A BMS may provide protection against:
Cell overcharge
Cell over-discharge
Overcurrent
Short circuit
Overtemperature
Low-temperature charging
Cell imbalance
For a multi-cell 18650 battery pack, the BMS also monitors the voltage of individual series groups. If one group reaches an unsafe limit earlier than the others, the BMS may stop charging or disconnect the load.
The BMS protection parameters must be compatible with:
Cell voltage range
Number of cells in series
Maximum charging voltage
Required discharge current
Device operating voltage
Thermal conditions
Cell monitoring, protection thresholds, and charge and discharge control all fit within the battery management system structure.
A complete 18650 battery pack design with a BMS should bring these functions together with cell matching, series and parallel configuration, and pack-level protection.
Many standard lithium-ion 18650 cells use a charge voltage of 4.2V per cell.
However, the complete charging system must also match:
Number of cells in series
Cell chemistry
Maximum charging current
Charger design
BMS protection settings
Device requirements
A standard 2S pack reaches approximately 8.4V at full charge, while a 3S pack reaches approximately 12.6V. A single-cell charger cannot be connected directly to a multi-cell pack.
A suitable charger or charging circuit must be matched to the specific battery configuration. The charger should not be selected only because its label says “18650” or “3.7V.”
Voltage is only one part of the process; the charger, current limit, termination stage, and charging environment also determine how an 18650 battery is safely recharged.
A voltage measurement can provide a quick indication of the battery’s present electrical state, but it cannot fully determine battery health.
When checking an 18650 cell or pack, distinguish between:
Open-circuit voltage
Voltage under load
Voltage during charging
Voltage after resting
Voltage difference between cells in the same pack
For OEM applications, a complete battery evaluation may also include:
Capacity testing
Internal resistance testing
Discharge testing
Cycle-life testing
Temperature monitoring
BMS protection testing
A normal open-circuit reading does not confirm capacity or internal resistance. Capacity, internal resistance, and cycle behavior require separate testing, which is covered in How to Test 18650 Battery Capacity and Health.
Choosing the right 18650 battery voltage begins with the electrical requirements of the device rather than the cell name.
Important questions include:
Check the device input voltage, peak voltage, minimum operating voltage, and acceptable voltage tolerance.
A compact device may use a single 3.6V or 3.7V cell. A higher-voltage device may require cells connected in series.
Capacity affects runtime. When cells are connected in parallel, the total capacity increases while the nominal voltage remains approximately the same.
ZERNE supplies 18650 cells in different capacity ranges, including 2000mAh, 2200mAh, 2600mAh, 3000mAh, and 3500mAh options. The appropriate capacity depends on the device’s power demand, required runtime, available space, and thermal conditions.
A high-power device may require a high-discharge 18650 cell even if its nominal voltage is the same as a standard-capacity cell.
Devices with high current demand may require a high-discharge battery rather than a standard 18650 cell. The correct choice depends on continuous current, peak current, operating temperature, and required cycle life.
Multi-cell packs normally require suitable monitoring and protection. The BMS must match the series configuration and the cell characteristics.
The final battery solution may also need:
Custom dimensions
Specific wire length
A particular connector
Temperature sensors
Insulation materials
Mechanical support
Cell matching and pack balancing
ZERNE provides custom 18650 battery pack solutions with different series and parallel configurations, protection options, connectors, and capacity requirements.
High-power devices need a cell that can handle the required current without excessive voltage drop or heat. The selection also depends on discharge rate, operating temperature, and cycle life; How to Choose a High-Drain 18650 Battery discusses these factors in greater detail.
Most standard lithium-ion 18650 cells are labeled with a nominal voltage of 3.6V or 3.7V. The selected model determines the actual voltage range and electrical performance.
A standard lithium-ion 18650 cell is commonly charged to approximately 4.2V. Check the selected cell’s charging specification before choosing a charger.
No. 3.7V is a nominal voltage, while 4.2V is the typical full-charge voltage for many standard lithium-ion cells.
The cutoff voltage depends on the selected cell, discharge conditions, and BMS settings. Use the cell manufacturer’s specified limit rather than assuming one value for all 18650 cells.
Two 18650 cells connected in series typically provide approximately 7.2V–7.4V nominal and approximately 8.4V at full charge.
Three cells connected in series typically provide approximately 10.8V–11.1V nominal and approximately 12.6V at full charge.
No. Many standard lithium-ion cells use a 4.2V charge voltage, but the correct value depends on the cell chemistry and charging specification.
A BMS does not change the nominal cell voltage. It monitors and protects the battery pack by limiting charging or discharging when the system reaches defined protection thresholds.
An 18650 battery is usually described as a 3.6V or 3.7V nominal cell. Many standard lithium-ion cells reach approximately 4.2V at full charge, while the cutoff voltage depends on the cell model, discharge conditions, and BMS settings.
The 18650 format alone is not enough to determine the correct charging voltage, cutoff voltage, capacity, or discharge current. For OEM battery projects, the complete solution should be selected by evaluating:
Cell voltage range
Capacity
Discharge current
Charging requirements
Number of cells in series and parallel
BMS protection
Available space
Connector requirements
Operating temperature
