Choosing an 18650 battery for an OEM device requires more than selecting the highest capacity or the lowest price. The cell must match the equipment’s voltage range, power demand, runtime, installation space, charging method, operating temperature, protection system, and production requirements.

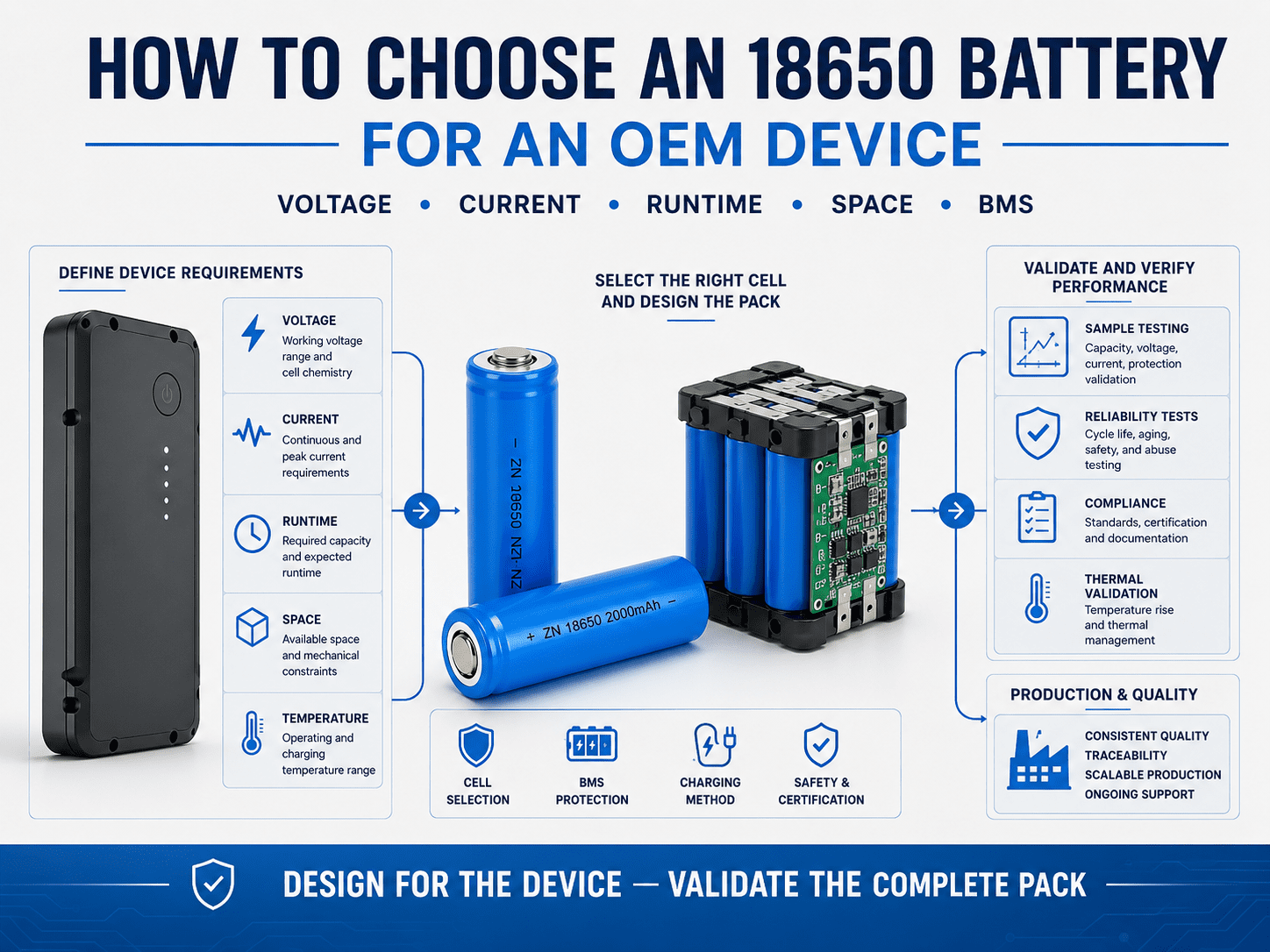

A suitable OEM battery design normally starts with the device rather than the cell. The engineering team should first define the load profile and available space, then select an 18650 cell and battery pack configuration that can meet those requirements safely and consistently.
The main parameters include:
Working voltage
Continuous and peak current
Required runtime
Cell capacity
Cell dimensions
Charging conditions
BMS and protection
Operating temperature
Certification requirements
Sample testing and mass production capability
ZERNE’s 18650 lithium battery solutions can support applications such as medical equipment, wearables, portable devices, handheld products, and other compact electronic systems.
OEM Requirement | Information to Confirm | Battery Selection Impact |
|---|---|---|
Working voltage | Minimum and maximum device input voltage | Determines cell and pack voltage |
Continuous current | Normal operating current | Determines continuous discharge rating |
Peak current | Startup or short-duration load | Determines pulse-current capability |
Runtime | Required operating hours | Determines capacity and parallel count |
Installation space | Cell compartment and housing dimensions | Determines cell layout and pack structure |
Charging method | Charger type, current, and voltage | Determines charging compatibility |
Protection | Overcharge, over-discharge, short circuit, temperature | Determines BMS requirements |
Operating temperature | Ambient and internal pack temperature | Affects cell selection and thermal design |
Certification | Target market and equipment category | Affects testing and documentation |
Production volume | Prototype, pilot, and mass-production needs | Affects supplier and process selection |
There is no universal “best” 18650 battery for every OEM product. The right cell is the one that meets the complete electrical, mechanical, thermal, and commercial requirements of the equipment.
The first step is to understand how the equipment consumes power.
A device may not use the same current continuously. It may have separate operating modes, such as:
Startup
Normal operation
Standby
Wireless transmission
Motor or actuator movement
Display operation
Sensor sampling
Charging or data communication
The battery must support the highest realistic demand, not only the average current.
If the device voltage and current are known, power can be calculated as:
Power (W) = Voltage (V) × Current (A)
For example:
Device voltage: 12V
Continuous current: 1A
12V × 1A = 12W
If the equipment draws 2A during startup, the battery pack and BMS must also tolerate the short-duration 24W demand.
The following values should be documented independently:
Continuous operating current
Maximum normal current
Startup current
Peak pulse current
Duration of each peak
Frequency of peak events
Minimum battery voltage during the load
A cell with a suitable capacity may still be unsuitable if its continuous discharge rating is too low. Similarly, a cell that supports a brief pulse may not be suitable for repeated or sustained high-current operation.
The device’s full input-voltage range should be confirmed before selecting the 18650 cell or pack structure.
Do not select a battery only because the equipment is described as a “12V,” “24V,” or “3.7V” product. The design team should verify:
Minimum operating voltage
Maximum permitted input voltage
Normal operating voltage
Device shutdown voltage
Charging voltage
Voltage conversion requirements
A single 18650 lithium-ion cell typically operates within a changing voltage range. If the device requires a higher voltage, multiple cells may be used in a series configuration or combined with a suitable voltage converter. The series and parallel arrangement determines how the pack meets voltage, capacity, and current targets; connecting 18650 batteries in series and parallel is therefore part of the early OEM design stage.
Before finalizing the cell, compare the equipment’s voltage window with the nominal, full-charge, and cutoff voltage limits of an 18650 battery.
For OEM design, the device should be tested across the expected battery voltage range.
For example, an electronic controller may operate correctly at the pack’s nominal voltage but shut down prematurely when the battery voltage falls under load. This can reduce the practical runtime even when the battery has remaining capacity.
If the voltage range is too wide for the device, the design may require:
A regulated DC-DC converter
A voltage monitoring circuit
A different battery pack configuration
A revised device power-management system
Capacity determines how much electrical charge the cell or battery pack can provide under specified test conditions.
For a battery pack:
Pack capacity (Ah) = Cell capacity (Ah) × Parallel count
Battery energy can be estimated as:
Pack energy (Wh) = Nominal voltage (V) × Pack capacity (Ah)
Estimated runtime is:
Runtime (h) = Usable pack energy (Wh) × System efficiency ÷ Device power (W)
For example, a battery pack with:
Nominal energy: 66.6Wh
Usable capacity factor: 85%
System efficiency: 90%
Device load: 10W
would provide an estimated runtime of:
66.6Wh × 85% × 90% ÷ 10W ≈ 5.09 hours
18650 battery pack capacity and runtime calculations can help convert the equipment’s power and runtime targets into a preliminary pack-capacity requirement.
The rated capacity is not always fully available in the final product. Usable capacity can be reduced by:
High discharge current
Low temperature
Cell aging
BMS cutoff voltage
Device undervoltage protection
Converter efficiency
Internal resistance
Battery pack imbalance
A practical OEM design should include an appropriate reserve instead of sizing the pack exactly to the theoretical runtime.
Current capability is one of the most important parameters in OEM cell selection.
Continuous current is the current the cell can provide during normal operation under specified conditions.
The selected cell should support the device’s continuous current with appropriate margin. The final current capability must also consider:
BMS rating
Nickel strip or busbar size
Wire gauge
Connector rating
Cell temperature
Enclosure heat dissipation
Number of parallel cells
Peak current may occur during:
Motor startup
Wireless transmission
LED activation
Pump or actuator startup
CPU or processor load changes
Sudden mechanical movement
The peak-current rating must be evaluated together with pulse duration and frequency. A short pulse occurring once during startup is different from a high-current event repeated every few seconds.
Some 18650 cells prioritize energy capacity, while others prioritize high-current performance.
A high-capacity cell may be suitable for:
Portable monitoring equipment
Wearables
Low- to medium-power electronics
Devices requiring longer runtime
A high-drain cell may be more suitable for:
Motorized equipment
Robotics
High-power portable tools
Devices with repeated current pulses
The cell format alone does not determine its current performance. The actual datasheet and the device load profile should be used for selection. For equipment with repeated or high-power loads, choosing a high-drain 18650 battery requires comparing continuous current, pulse capability, voltage sag, and heat—not capacity alone.
A standard 18650 cell is approximately 18mm in diameter and 65mm in length. Actual dimensions may vary depending on:
Manufacturer
Terminal structure
Protective wrapper
Protection circuit
Positive terminal design
Production tolerance
These variations are why OEM teams should verify 18650 battery dimensions, size, diameter, and length against the finished compartment instead of relying only on the nominal 18 × 65 mm format.
A protected 18650 cell may be longer than an unprotected cell. The finished battery pack will also require space for:
Cell holders
Insulation
BMS
Temperature sensors
Wires
Connectors
Housing
Mechanical supports
The difference between protected and unprotected 18650 batteries also affects the available length, protection architecture, and device fit.
The available space should be measured in three dimensions:
Length
Width
Height
The design should also account for assembly clearance and mechanical tolerance. A cell arrangement that fits in a digital drawing may not be practical after adding insulation, wiring, BMS components, and connectors.
The cell layout affects:
Pack dimensions
Heat dissipation
Connection length
BMS location
Connector placement
Mechanical strength
Assembly time
The battery pack should be designed together with the equipment enclosure rather than added after the mechanical design is complete.
The charging system must match the cell chemistry, series count, maximum charging voltage, and charging current.
Before selecting a charger, confirm:
Cell chemistry
Battery pack series count
Maximum charging voltage
Recommended charging current
Charger output characteristics
BMS compatibility
Device charging interface
The charging method should also match the product’s operating conditions. A medical device, wearable product, and industrial instrument may have different requirements for charging time, temperature monitoring, and user access.
The charger should not be selected based only on a general voltage label. The battery pack, charger, BMS, and device charging circuit need to be treated as one system. This system-level check should include safe 18650 battery charging, including charger compatibility, charging current, charging time, and monitoring.
A battery management system helps monitor and protect a rechargeable battery pack.
The required functions may include:
Overcharge protection
Over-discharge protection
Overcurrent protection
Short-circuit protection
Temperature monitoring
Cell balancing
Charge control
Discharge control
Communication functions for smart battery systems
The BMS should match:
Battery pack series count
Continuous current
Peak current
Charging current
Cell chemistry
Temperature sensors
Device communication requirements
The BMS should not be added after the cell has been selected without reviewing the complete design. Its dimensions, current rating, protection thresholds, and connection method can affect the battery pack structure. These decisions should be made together with the 18650 battery pack BMS design, especially when the pack includes multiple series groups or high-current loads.
Temperature affects capacity, current capability, charging performance, internal resistance, and service life.
The design team should identify:
Minimum ambient temperature
Maximum ambient temperature
Internal enclosure temperature
Charging temperature
Discharging temperature
Storage temperature
Heat generated by the device
Heat generated by the battery pack
High-current operation can produce additional heat inside the pack. If the pack is installed in a sealed enclosure, the temperature may rise faster than expected.
Possible design responses include:
Selecting a cell with suitable temperature characteristics
Reducing current demand
Increasing the number of parallel cells
Improving heat dissipation
Adding a temperature sensor
Revising the enclosure
Adjusting protection limits
Temperature validation should be performed using a complete sample pack rather than an individual cell alone.
Certification requirements depend on the equipment, destination market, battery configuration, transportation method, and intended application.
The project may require documentation related to:
Battery safety
Transportation
Environmental compliance
Product safety
Electromagnetic compatibility
Material restrictions
Factory quality systems
Possible requirements may include transportation testing, product-level safety evaluation, environmental declarations, and market-specific compliance documents. The applicable requirements should be confirmed at the beginning of the project rather than after mass production begins.
Certification planning can affect:
Cell selection
BMS design
Housing materials
Labeling
Packaging
Test samples
Production records
Shipping arrangements
For medical, industrial, wearable, and portable products, the battery documentation may also need to be coordinated with the equipment manufacturer’s technical file.
A sample battery pack should be tested in the actual equipment before the design is approved.
Electrical validation may include:
Nominal voltage
Full-charge voltage
Continuous current
Peak current
Runtime
Voltage drop
Charging behavior
BMS protection
Connector performance
Measured capacity, internal resistance, and load performance should come from a consistent 18650 battery capacity and health testing process.
Mechanical validation may include:
Installation fit
Connector position
Wire routing
Housing clearance
Vibration resistance
Drop or impact conditions
Assembly tolerance
Service access
Depending on the application, testing may include:
High-temperature operation
Low-temperature operation
Charge and discharge at temperature limits
Storage testing
Cycle-life testing
Humidity exposure
Vibration testing
The battery should be tested with the complete device because the actual results can differ from a cell or battery analyzer test.
The product-level test should confirm:
Actual runtime
Device shutdown behavior
Peak-load response
Charging time
Temperature rise
Communication or power-management behavior
User operation and maintenance requirements
Choosing a cell based only on capacity.
Ignoring startup and peak current.
Using nominal voltage without checking the full operating range.
Assuming every 18650 cell has the same dimensions.
Forgetting the added length of protected cells.
Selecting a charger before confirming the battery pack structure.
Treating the BMS as a separate afterthought.
Ignoring the temperature inside the equipment enclosure.
Mixing cells with different models or performance characteristics.
Estimating runtime from rated capacity alone.
Skipping sample testing before production.
Waiting until mass production to review certification requirements.
Selecting a cell that is unavailable for long-term supply.
Failing to define production tolerances and quality records.
Medical equipment may require:
Stable runtime
Reliable protection
Controlled charging
Low self-discharge
Traceable production
Consistent cell performance
Application-specific documentation
The battery pack must be validated under the equipment’s actual operating conditions.
Wearable products typically prioritize:
Compact dimensions
Low weight
Suitable energy density
Low heat generation
Comfortable mechanical integration
Reliable charging
The available space may be more important than the maximum possible capacity.
Portable equipment may require a balance between:
Runtime
Weight
Current capability
Durability
Connector design
Charging time
Housing space
The pack should be designed around both typical operation and occasional peak loads.
Industrial devices may place greater emphasis on:
High current
Shock and vibration resistance
Temperature range
Connector durability
Long cycle life
BMS protection
Serviceability
A high-capacity cell is not always the right choice if the equipment requires repeated high-current operation.
A complete OEM battery project may include:
Cell model selection
Capacity and current evaluation
Battery pack structure
BMS integration
Connector and wire customization
Mechanical design
Sample production
Product-level validation
Certification support
Batch production
Once the voltage, capacity, current, dimensions, and protection requirements are defined, they can be developed into an 18650 battery pack solution for the target device.
For products with specific electrical, mechanical, or environmental requirements, custom 18650 battery solutions can connect cell selection with pack design, testing, and mass production planning.
Start by defining the device voltage range, continuous and peak current, required runtime, available space, charging method, temperature range, protection requirements, and production targets. Then compare suitable cell models against these requirements.
No. A high-capacity cell may have a lower discharge-current rating. The correct cell must balance capacity, current, dimensions, temperature, cycle life, and device requirements.
The number depends on the required voltage and capacity. Series count affects voltage, while parallel count affects capacity and current capability. The complete pack should also include space for the BMS, wiring, insulation, and housing.
Use the device power and required runtime as a starting point:
Required energy (Wh) = Device power (W) × Runtime (h)
Then account for system efficiency, usable capacity, battery aging, temperature, and voltage cutoff.
Continuous current is the normal current required during operation. Peak current is a short-duration demand such as motor startup or wireless transmission. Both values must be supported by the cell, BMS, wiring, and connector.
Most multi-cell rechargeable lithium-ion battery packs require suitable protection and monitoring. The required BMS functions depend on the pack configuration, current, charging method, temperature, and product design.
They are critical. The cell holder, enclosure, BMS, insulation, connectors, and wiring must all fit inside the equipment. Protected cells may also be longer than standard unprotected cells.
Test the sample in the actual device for voltage, current, runtime, charging, temperature, mechanical fit, protection behavior, and environmental performance before approving mass production.
They should not be mixed casually. Different models may have different capacity, resistance, current, charging, and thermal characteristics. Cells should be selected and matched as part of one controlled pack design. In production projects, cell matching in an 18650 battery pack should be based on measured capacity, internal resistance, voltage, age, and batch—not only the printed model.
Useful information includes:
Device application
Input voltage range
Continuous and peak current
Required runtime
Charging method
Battery compartment dimensions
Connector type
Operating temperature
Target quantity
Certification or market requirements
Choosing an 18650 battery for an OEM device is a system-design decision rather than a simple cell purchase.
The selection should begin with the equipment’s:
Voltage range
Power profile
Continuous and peak current
Runtime target
Installation space
Charging method
BMS and protection requirements
Operating temperature
Certification needs
Production plan
The selected cell should be validated in a complete battery pack and tested with the actual device before mass production.
A well-designed OEM battery solution balances electrical performance, mechanical fit, safety, reliability, certification, supply continuity, and manufacturing consistency.
