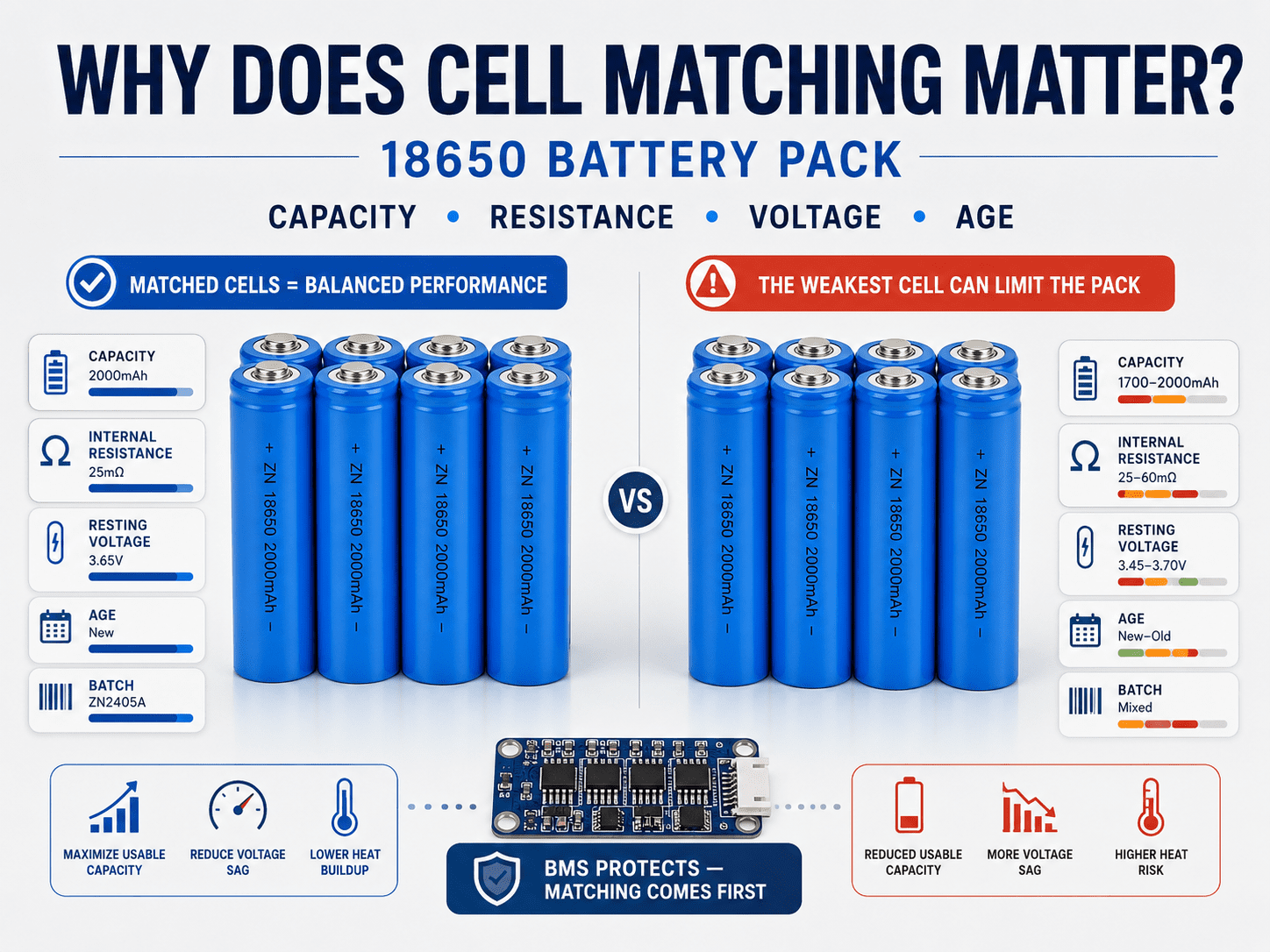

Cell matching is the process of selecting 18650 cells with similar electrical and physical characteristics before assembling them into a battery pack.
It matters because cells in the same pack do not always age, charge, or discharge at the same rate. If one cell has lower capacity or higher internal resistance than the others, it may reach its voltage limit earlier. This can reduce the usable capacity of the entire pack, increase heat generation, trigger BMS protection, and create safety concerns.
Using cells with the same 18650 format is not enough. A reliable battery pack should use cells with compatible:
Model and chemistry
Capacity
Internal resistance
Open-circuit voltage
Age and cycle history
Production batch
Physical condition
A BMS can monitor and protect the battery pack, but it cannot correct a poor cell-matching process. Good matching must be completed before the cells are assembled.
Matching Factor | What Can Happen If Cells Differ |
|---|---|
Capacity | The weakest cell or series group limits usable pack capacity |
Internal resistance | Higher voltage sag and greater heat generation |
Voltage or state of charge | Uneven charging and discharging |
Age and cycle history | Different aging rates and self-discharge behavior |
Production batch | Variations in capacity and resistance |
Physical condition | Higher risk of damage or inconsistent performance |
Cell matching is especially important in series battery packs, high-current applications, and OEM products that require stable runtime over repeated charge and discharge cycles.
The label “18650” only describes the approximate cylindrical cell format. It does not guarantee that two cells have the same electrical performance.
Two cells may both be labeled 18650 but have different:
Nominal capacity
Continuous discharge current
Internal resistance
Chemistry
Charge limits
Cutoff voltage
Cycle life
Production age
For example, a high-capacity 18650 cell may be designed for longer runtime, while a high-drain cell may prioritize current output. Using them together can create an uneven load distribution.
Cells should not be mixed simply because:
They look the same
They have the same nominal voltage
They came from the same device
Their initial voltage readings are similar
They use the same physical holder
The complete cell specification and measured performance must be considered before assembly.
In a series battery pack, the same current flows through each series group. If one group has lower capacity than the others, it may reach the discharge cutoff earlier.
When that happens, the BMS may stop the entire pack even though the other groups still contain usable energy.
For example, consider three series groups with slightly different usable capacities:
Series Group | Usable Capacity |
Group 1 | 3.0Ah |
Group 2 | 2.9Ah |
Group 3 | 2.6Ah |
The pack cannot reliably use the full capacity of the two stronger groups because Group 3 may reach the low-voltage limit first. That weakest-group effect changes the pack’s usable energy and runtime; 18650 battery pack capacity and runtime calculations show how to account for those limits.
The practical capacity of a series pack is therefore influenced by the weakest group and by the difference between the groups.
A battery pack built with unmatched capacity may initially appear to work normally, but the operating time can become shorter than expected.
Capacity imbalance can result in:
Earlier low-voltage protection
Reduced usable energy
Uneven charge time
More frequent BMS shutdown
Greater stress on the weaker group
Faster performance degradation
Capacity and resistance data from a standardized 18650 battery capacity and health test provide a more reliable basis for grouping cells than label information or open-circuit voltage alone.
A simple way to describe the spread between cells is:
Capacity variation (%) = (Maximum capacity − Minimum capacity) ÷ Average capacity × 100%
For OEM production, the acceptable variation should be defined according to:
Pack configuration
Load current
Required runtime
Cell chemistry
Product lifetime
Safety requirements
There is no single capacity-matching percentage that applies to every application.
Internal resistance describes the opposition to current flow inside a cell. It affects how much the cell voltage falls when current is drawn.
The approximate voltage drop can be expressed as:
Voltage drop = Current × Internal resistance
If a cell with higher resistance is used in a high-current application, its voltage may fall more sharply than the voltage of the other cells.
Suppose two cells supply the same current:
Cell A internal resistance: 20mΩ
Cell B internal resistance: 40mΩ
Load current: 5A
The simplified voltage drop would be:
Cell A: 5A × 0.020Ω = 0.10V
Cell B: 5A × 0.040Ω = 0.20V
Cell B experiences twice the voltage drop under the same current. It may reach the pack’s low-voltage limit earlier and reduce the available runtime.
Internal resistance also affects heat generation:
Heat loss = Current² × Resistance
At the same current, a cell with higher resistance generates more heat.
This can cause:
Higher cell temperature
Greater voltage loss
Reduced efficiency
Faster aging
More uneven performance between cells
The difference becomes more significant in high-current applications. A cell with slightly higher resistance may still be acceptable in a low-power device, but it may be unsuitable for a high-drain battery pack. When the pack must deliver substantial current, choosing a high-drain 18650 battery requires comparing current capability, voltage sag, and thermal behavior—not capacity alone.
Parallel cells are intended to share the load. However, cells with different resistance do not always share current evenly.
A lower-resistance cell may carry more current, while a higher-resistance cell may heat more quickly. This can create uneven aging within the same parallel group.
For this reason, resistance matching is important even when cells are connected in parallel.
Voltage differences can exist before assembly because cells may have different:
States of charge
Self-discharge rates
Internal resistance
Capacity
Storage histories
During charging, one series group may reach its upper voltage limit before the others.
If the BMS detects that one group has reached its overcharge threshold, it may stop the charging process even though the other groups are not fully charged. The charger still has to match the pack’s series count, full-charge voltage, chemistry, and charge-current limits; safe 18650 battery charging covers the charging process and the checks that reduce avoidable imbalance.
This can lead to:
Incomplete charging
Reduced pack capacity
Longer charging cycles
Repeated BMS protection
Greater imbalance over time
During discharge, the weakest series group may reach the cutoff voltage before the other groups.
The entire battery pack may then stop supplying power even though some groups still have remaining capacity.
This is one reason a battery pack can show a reasonable total voltage but still provide less runtime than expected.
Measuring the open-circuit voltage before assembly is useful, but it does not prove that cells are matched.
Two cells may have similar voltage at rest while differing significantly in:
Capacity
Internal resistance
Self-discharge rate
Load performance
Voltage matching should therefore be combined with capacity and resistance testing. For series packs, nominal, full-charge, and cutoff values also affect how imbalance appears; the 18650 battery voltage guide sets out those operating limits.
The cells should normally have the same:
Manufacturer
Model
Chemistry
Nominal voltage
Charging limits
Discharge limits
Different chemistry or cell models may require different charging and protection settings.
Cells should have similar measured capacity under the same test conditions.
Do not compare capacity results obtained using different:
Discharge currents
Cutoff voltages
Temperatures
Rest periods
Testing equipment
Resistance should be measured using the same method and equipment.
The test conditions should also be consistent in terms of:
State of charge
Temperature
Rest time
Probe or holder contact
Pulse duration
A resistance value should be compared with other cells of the same model rather than with a general number from a different cell type.
Before assembly, the cells should be at a similar state of charge.
The voltage should be measured after a consistent rest period. A reading taken immediately after charging may include surface-charge effects and may not represent the stable cell voltage.
Cells with similar age and usage history are easier to match.
The cycle history can affect:
Capacity
Internal resistance
Self-discharge
Heat generation
Voltage recovery
A new cell and a cell that has already completed many charge cycles may behave very differently even if both have the same original capacity rating. Cycle count is only one part of service life; temperature, load, depth of discharge, and storage conditions also influence how long 18650 batteries last.
Cells from the same model and production batch may have more consistent characteristics, although batch origin alone does not replace electrical testing.
For OEM production, the following information should be recorded:
Cell model
Production date
Batch number
Supplier information
Measured capacity
Measured resistance
Inspection result
New and used cells should generally not be combined in the same battery pack.
An older cell may have:
Lower capacity
Higher internal resistance
Greater self-discharge
More cycle wear
Different voltage recovery
Greater heat generation
When connected with new cells, the older cell may reach its charge or discharge limit earlier. The new cells cannot compensate for the weaker cell because all groups remain electrically connected.
Mixing new and old cells can lead to:
Reduced usable pack capacity
Uneven voltage distribution
Shorter service life
More frequent BMS protection
Greater thermal imbalance
Difficult troubleshooting
If used cells must be evaluated, they should be tested, classified, and assembled only with other cells that have similar measured characteristics. Storage history should be recorded as part of that assessment, because storing 18650 batteries safely helps limit unnecessary self-discharge, moisture exposure, and accidental short circuits.
Start with cells that have traceable information:
Manufacturer
Model
Chemistry
Batch
Rated capacity
Rated current
Avoid unknown cells with incomplete labels or unclear storage history.
Check for:
Damaged wrappers
Missing insulating rings
Dents
Corrosion
Leakage
Swelling
Burn marks
Deformed terminals
Any cell with serious physical damage should be removed from the matching process.
Test the cells using the same method for:
Capacity
Internal resistance
Resting voltage
Self-discharge behavior
Temperature under load
The resulting data can then be used to identify cells with similar electrical behavior rather than grouping them only by appearance or printed rating.
Cells can be placed into groups according to their measured results.
For example:
High-capacity group
Medium-capacity group
Lower-capacity group
Low-resistance group
Higher-resistance group
Reject group
The exact acceptance limits should be determined by the battery pack design.
Cells used in the same parallel group should have similar capacity and resistance. Series groups should also be balanced against one another. For example, a 3S2P pack combines three series groups with two parallel cells in each group, so the series and parallel arrangement of 18650 batteries should be defined before matching limits are set.
The assembly team should record which cells were placed into each group so that the pack remains traceable.
After assembly, test the complete battery pack for:
Voltage
Capacity
Runtime
Temperature
Charge and discharge behavior
BMS protection
Connector and wire performance
The completed pack should be tested under the actual equipment load rather than evaluated only from individual cell data.
A BMS can monitor cell groups and provide protection against conditions such as:
Overcharge
Over-discharge
Overcurrent
Short circuit
Excessive temperature
Cell voltage imbalance
Even a well-designed BMS for an 18650 battery pack cannot increase the capacity of a weak cell or reduce the internal resistance of a damaged one.
The BMS may stop the pack when it detects an imbalance, but it cannot:
Increase the capacity of a weak cell
Reduce the internal resistance of a damaged cell
Make new and old cells perform equally
Correct uneven aging
Guarantee equal current sharing
The BMS should therefore support a controlled cell-matching process rather than replace it.
Before production, the OEM and battery manufacturer should agree on:
Minimum capacity
Maximum capacity variation
Maximum resistance variation
Permitted voltage difference
Test temperature
Charge and discharge conditions
Cell age limit
Batch requirements
Reject criteria
The values should be based on the equipment’s current, runtime, safety requirements, and expected service life. These criteria should be set alongside the device’s operating voltage, available space, charging method, thermal limits, and validation plan; choosing an 18650 battery for an OEM device brings those product-level requirements together.
Every batch should be tested using consistent:
Equipment
Current
Voltage limits
Temperature
Rest period
Data-recording method
Changing the test method can make results difficult to compare between production batches.
A production record may include:
Record Item | Purpose |
Cell model and batch | Traceability |
Cell identification number | Individual tracking |
Capacity result | Energy consistency |
Resistance result | Current and thermal consistency |
Voltage result | State-of-charge comparison |
Matching group | Assembly control |
Inspector and date | Quality accountability |
Final pack result | Production validation |
A new production batch should not automatically be treated as identical to an earlier batch.
Changes in materials, production conditions, storage time, or supplier arrangements can affect performance. New batches should be screened using the agreed process before being released for pack assembly.
Matching cells only by their nominal voltage.
Mixing different manufacturers or cell models.
Combining high-capacity and high-drain cells without testing.
Mixing new cells with used cells.
Ignoring internal resistance.
Using capacity data from different test conditions.
Assuming that the BMS will correct poor cell selection.
Connecting cells with different states of charge.
Ignoring the production batch and storage history.
Using one acceptance standard for every battery application.
Testing individual cells but not testing the finished pack.
Failing to keep matching and production records.
Cell matching is the process of selecting 18650 cells with similar capacity, internal resistance, voltage, age, model, and usage history before assembling them into a battery pack.
In a series pack, the same current passes through each group. A weaker group may reach the overcharge or discharge cutoff before the others, reducing the usable capacity of the entire pack.
It is generally not recommended. Different brands and models may have different capacity, resistance, charging, and discharge characteristics.
They should generally not be mixed. Used cells may have lower capacity, higher resistance, and different self-discharge behavior than new cells.
No. A BMS provides monitoring and protection, but it cannot correct differences in capacity, internal resistance, or aging between cells.
At a minimum, match the cell model, chemistry, capacity, internal resistance, resting voltage, age, and production batch. The priority may vary by application.
Higher internal resistance causes greater voltage sag and heat generation under load. In a pack, this can create uneven current and temperature distribution.
Yes. Similar open-circuit voltage does not prove that cells have the same capacity, resistance, or self-discharge rate.
OEM matching normally includes source control, visual inspection, capacity testing, resistance testing, voltage classification, binning, traceable records, and final battery pack validation.
Reliable cell matching is part of the complete battery pack development process.
ZERNE can support OEM requirements including:
Cell selection
Cell performance screening
Capacity and resistance matching
Series and parallel pack design
BMS integration
Connector and wire customization
Sample production
Pack testing
Batch production control
When these requirements are defined, they can be incorporated into 18650 battery pack solutions with the required voltage, capacity, current, dimensions, connector, and protection functions.
For projects with specific performance and mechanical requirements, custom 18650 battery solutions can integrate cell matching into the wider OEM design and production process.
Cell matching matters because the performance of an 18650 battery pack depends on the relationship between its individual cells.
Capacity differences can reduce runtime. Internal resistance differences can increase voltage sag and heat. Voltage and state-of-charge differences can cause uneven charging and discharging. Age and batch differences can lead to different rates of degradation.
A reliable matching process should compare:
Cell model and chemistry
Measured capacity
Internal resistance
Resting voltage
Self-discharge behavior
Age and cycle history
Production batch
Physical condition
A BMS provides essential protection, but it cannot replace careful cell selection. For OEM production, defined acceptance criteria, standardized testing, traceable records, and finished-pack validation are necessary for stable and safe battery performance.
