Views: 0 Author: ZERNE Battery Technical Content Team Publish Time: 2026-07-09 Origin: Site

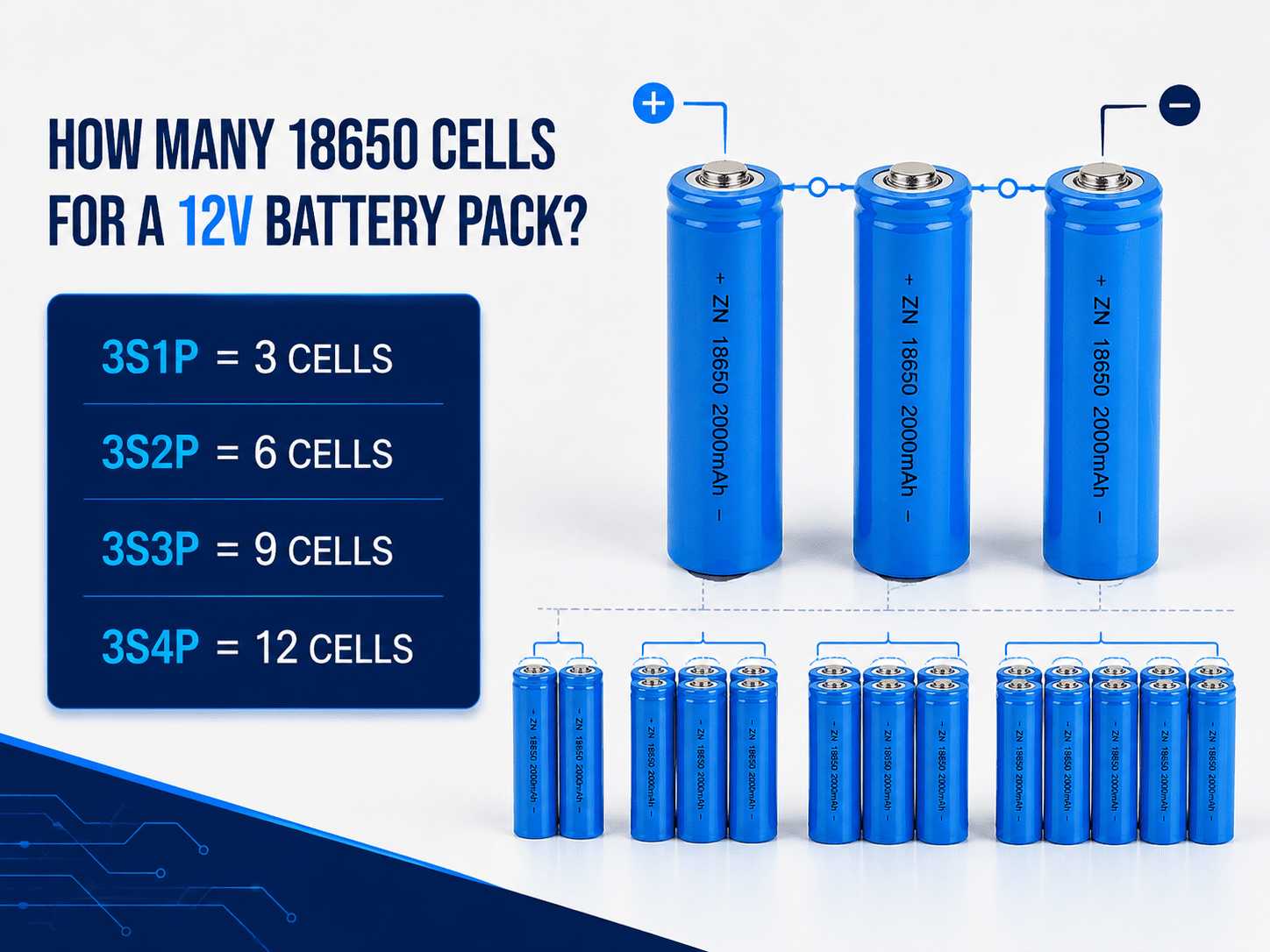

A standard 12V-class battery pack made with 18650 lithium-ion cells usually requires three cells or three parallel cell groups connected in series.
The minimum configuration is 3S1P, which contains three 18650 cells. If higher capacity or current capability is required, additional cells can be connected in parallel:
3S1P = 3 cells
3S2P = 6 cells
3S3P = 9 cells
3S4P = 12 cells
A 3S battery pack normally has a nominal voltage of 10.8V or 11.1V and a full-charge voltage of 12.6V. It is commonly called a 12V lithium-ion battery pack because it belongs to the 12V voltage class.
However, a “12V battery pack” does not maintain exactly 12.0V throughout its entire discharge cycle. The voltage starts near 12.6V when fully charged and gradually decreases as the cells discharge.
For voltage alone, three 18650 lithium-ion cells connected in series are normally required. The total number of cells depends on the number of parallel cells added for capacity and current.
Configuration | Total Cells | Nominal Voltage | Full-Charge Voltage | Capacity with 3000mAh Cells |
|---|---|---|---|---|
3S1P | 3 | 10.8V–11.1V | 12.6V | 3Ah |
3S2P | 6 | 10.8V–11.1V | 12.6V | 6Ah |
3S3P | 9 | 10.8V–11.1V | 12.6V | 9Ah |
3S4P | 12 | 10.8V–11.1V | 12.6V | 12Ah |
The basic formula is:
Total cells = Series count × Parallel count
For a typical 12V-class lithium-ion battery pack:
Total cells = 3 × Parallel count
Therefore, the answer to “how many 18650 cells for 12V battery” is usually three cells for voltage, with more cells added when the application requires greater capacity or current.
A single 18650 lithium-ion cell generally has a nominal voltage of 3.6V or 3.7V. When three cells are connected in series, their voltages add together:
3.6V × 3 = 10.8V nominal voltage
3.7V × 3 = 11.1V nominal voltage
4.2V × 3 = 12.6V full-charge voltage
The exact nominal voltage depends on the cell manufacturer and cell chemistry. For example, a representative high-drain 18650 specification uses 3.6V nominal voltage and 4.2V charging voltage. The selected cell’s datasheet should always be used for final design limits. Molicel’s INR-18650-P28A data sheet provides an example of these specifications.
The selected cell’s voltage limits should be used for the final design; the 18650 battery voltage guide shows how nominal, full-charge, and cutoff values relate to a 3S pack.
A 3S pack is normally called a 12V lithium-ion battery pack because its operating range is intended for equipment in the 12V class.
Its actual voltage changes during operation:
Fully charged: approximately 12.6V
Nominal voltage: approximately 10.8V or 11.1V
Discharged voltage: depends on the selected cell and BMS cutoff setting
If a device requires a stable 12.0V output, a 3S battery pack alone may not be sufficient. A DC-DC regulator may be needed to maintain a controlled output voltage as the battery voltage changes.
The device’s permitted input-voltage range should be checked before selecting the battery configuration.
A 4S 18650 battery pack contains four series-connected cell groups:
3.6V × 4 = 14.4V nominal voltage
3.7V × 4 = 14.8V nominal voltage
4.2V × 4 = 16.8V full-charge voltage
For this reason, 4S packs are generally considered 14.4V or 14.8V battery packs rather than 12V packs.
A 4S configuration should not be connected directly to equipment designed only for a 12V-class input unless the equipment manufacturer specifically confirms that the higher voltage is acceptable.
The series count determines the battery pack voltage.
A basic starting formula is:
Series count = Required nominal voltage ÷ Cell nominal voltage
For a 12V-class pack using 3.7V cells:
12V ÷ 3.7V ≈ 3.24
Because a battery pack cannot use a fractional series count, the usual configuration is 3S.
The calculation should not be treated as simple mathematical rounding alone. The final series count must also match:
The device’s minimum and maximum input voltage
The cell’s nominal and full-charge voltage
The device’s low-voltage shutdown point
The BMS protection settings
The charger output voltage
For most standard 12V lithium-ion applications, 3S is the most common choice.
The parallel count determines the battery pack’s capacity.
Pack capacity = Cell capacity × Parallel count
For 3000mAh cells:
3S1P = 3000mAh = 3Ah
3S2P = 6000mAh = 6Ah
3S3P = 9000mAh = 9Ah
3S4P = 12000mAh = 12Ah
The series count does not increase capacity in ampere-hours. It increases voltage. The parallel count increases capacity while keeping the same series voltage.
This distinction is also important when reading configurations such as 3S2P and 4S2P; series and parallel 18650 battery configurations shows how the two counts work together.
For example, both a 3S1P pack and a 3S4P pack are 3S packs with a nominal voltage of approximately 10.8V or 11.1V. The difference is that the 3S4P pack contains four cells in each parallel group and therefore provides approximately four times the capacity of a 3S1P pack using identical cells.
Parallel cells also increase the theoretical current capability of a battery pack.
Parallel current capability = Cell continuous current × Parallel count
If one 18650 cell has a continuous discharge rating of 10A:
3S1P: approximately 10A
3S2P: approximately 20A
3S3P: approximately 30A
These figures are theoretical estimates. Actual pack current capability may be lower because of:
BMS current rating
Nickel strip or busbar size
Weld quality
Wire gauge
Connector rating
Cell temperature
Cell aging
Internal resistance
Enclosure heat dissipation
Continuous current and peak current must also be evaluated separately. A cell may support a short-duration peak current that it cannot sustain continuously.
The total number of cells is calculated as:
Total cells = Series count × Parallel count
Because a typical 12V-class pack uses 3S:
Total cells = 3 × Parallel count
Examples:
3S1P = 3 × 1 = 3 cells
3S2P = 3 × 2 = 6 cells
3S3P = 3 × 3 = 9 cells
3S4P = 3 × 4 = 12 cells
For a quick check of the required series and parallel counts, capacity, energy, and runtime, use the 18650 battery pack calculator.
A 3S1P battery pack contains three 18650 cells.
It provides:
The smallest cell count for a 12V-class configuration
Capacity equal to one cell
Low weight and compact dimensions
Limited runtime
Limited current capability
This configuration may be suitable for low-power electronics, compact instruments, and applications with short operating periods.
A 3S2P battery pack contains six cells, arranged as three series groups with two parallel cells in each group.
Compared with 3S1P, it provides approximately twice the capacity and theoretical current capability. A 3S2P 18650 battery pack is often a practical balance between runtime, size, weight, and cost.
Typical applications include portable equipment, measurement instruments, barcode scanners, small industrial devices, and compact backup systems.
A 3S3P battery pack contains nine cells.
It provides higher capacity and current capability than 3S1P or 3S2P configurations. It may be suitable for devices that require longer runtime or higher operating current.
The larger cell count requires more attention to:
Cell arrangement
Heat dissipation
BMS placement
Wiring layout
Mechanical support
Insulation and protection
A 3S4P battery pack contains 12 cells.
It offers higher energy storage and greater theoretical current capability while remaining within the 3S voltage class. It may be used in higher-power equipment or applications requiring longer operation between charges.
Before choosing 3S4P, confirm that the enclosure has enough room for the cells, BMS, insulation, wiring, temperature sensors, connectors, and structural supports.
Runtime can be estimated using battery energy and device power:
Runtime ≈ Usable battery energy ÷ Device power
Battery energy can be estimated as:
Pack energy = Nominal voltage × Pack capacity
For example, consider a 3S2P pack using 3000mAh cells:
Nominal voltage: 11.1V
Pack capacity: 6Ah
Nominal energy: 11.1V × 6Ah = 66.6Wh
Device power: 10W
System efficiency: 90%
Estimated runtime:
66.6Wh × 90% ÷ 10W ≈ 5.99 hours
The actual operating time may be shorter because of:
Variable device load
DC-DC conversion losses
Battery aging
Low or high temperature
BMS cutoff voltage
Cell internal resistance
Connector resistance
Wire voltage drop
Capacity test conditions
For an OEM design, runtime should be verified with a representative prototype under the actual load profile. The calculation should also account for usable energy, conversion efficiency, cutoff voltage, temperature, and the actual load profile; the 18650 battery pack capacity and runtime method puts these variables together.
The battery pack should be sized according to both normal and temporary current demand.
Confirm the equipment’s:
Continuous operating current
Startup current
Peak current
Motor or actuator surge current
Wireless transmission peaks
BMS continuous-current rating
BMS peak-current rating
If the application requires higher current, increasing the parallel count is usually more relevant than increasing the series count. High-drain cells may also be required; high-drain 18650 battery selection focuses on continuous current, peak current, and thermal limits.
Adding series cells raises voltage but does not automatically increase the current available to the load.
The physical design must include more than the cells themselves. Allow space for:
Cell diameter and length
Cell spacing
Insulation sheets
Nickel strips or copper busbars
BMS circuit board
Temperature sensors
Wires and connectors
Housing and fixing structures
Clearance for assembly and servicing
A theoretical 3S2P design may not fit the intended enclosure after the BMS, protection materials, wiring, and connector are included.
A 3S1P, 3S2P, 3S3P, and 3S4P battery pack all contain three series groups. Therefore, they generally require a 3S BMS.
The BMS should match:
Three-series-cell configuration
Continuous discharge current
Peak discharge current
Charging current
Overcharge protection
Over-discharge protection
Overcurrent protection
Short-circuit protection
Temperature protection
Cell balancing requirements
A 3S pack still requires the BMS to match its current, charging, protection, and balancing requirements; these choices are part of the BMS design for an 18650 battery pack. The BMS current rating should be evaluated at the pack level. A BMS with an unsuitable current rating can limit performance or trigger protection during normal operation. Battery-management systems may also monitor cell voltage, pack current, and temperature as part of their protection strategy.
A standard 3S lithium-ion battery pack normally requires a charging system designed for a 12.6V maximum charging voltage.
The charger must match:
Battery chemistry
Series count
Maximum charging voltage
Charging current
BMS requirements
Cell manufacturer specifications
Do not assume that an ordinary 12V lead-acid battery charger is suitable for a 3S lithium-ion pack. Its output voltage and charging method may be different. The 12.6V setting identifies the pack’s maximum charging voltage, but the charger, current limit, termination stage, and charging environment also determine whether the pack can be safely recharged.
A charger IC designed for multi-cell lithium-ion batteries distinguishes the charging voltage for different series counts, including 12.6V for 3S and 16.8V for 4S.
The three series groups in a 3S pack may develop different voltages because of:
Cell capacity variation
Different internal resistance
Uneven temperature
Different aging conditions
Connection resistance
Uneven current distribution
If one series group reaches an overcharge or over-discharge threshold before the others, the BMS may stop charging or discharging the entire pack.
Cell balancing helps keep the series groups within a suitable voltage relationship. This is why cell matching in an 18650 battery pack should be completed before assembly, rather than treated as a later balancing step. The required balancing method depends on the pack design, cell characteristics, operating current, cost target, and reliability requirements.
Once the required series count, capacity, current, dimensions, and protection functions are clear, the battery pack can be developed as an integrated product rather than as a group of loose cells.
ZERNE’s 18650 battery pack solutions can be evaluated for requirements such as:
3S1P, 3S2P, 3S3P, and other configurations
Customized voltage and capacity
BMS or PCM protection
Connector and wire selection
Battery housing and mechanical dimensions
Temperature sensing
Sample testing
Certification and volume production
Users who have calculated the required 3S configuration can then select a practical pack based on runtime, current demand, available space, and operating conditions.
Several design mistakes are common when building a 12V battery pack with 18650 cells:
Assuming that a 12V pack always outputs exactly 12.0V.
Using a 4S pack as a direct replacement for a 3S 12V-class pack.
Calculating voltage without calculating capacity.
Ignoring startup and peak current.
Selecting a charger only because it is labeled “12V.”
Using a 4S BMS with a 3S battery pack.
Mixing different cell models, capacities, ages, or states of charge.
Checking only total pack voltage instead of monitoring each series group.
Ignoring heat generated by cells, the BMS, wires, and connectors.
Starting mass production before completing prototype and load testing.
The cells should be matched before assembly, and the completed pack should be tested under the actual electrical and mechanical conditions of the target device.
A standard 12V-class 18650 lithium-ion battery pack usually uses three cells or three parallel cell groups connected in series. The minimum configuration is 3S1P with three cells. The total count increases with the parallel count.
Yes. Three compatible 18650 lithium-ion cells can be connected in series to create a 3S pack. The pack normally has a nominal voltage of 10.8V or 11.1V and a full-charge voltage of approximately 12.6V.
A 3S2P battery pack contains six 18650 cells. It consists of three series groups, with two cells connected in parallel within each group.
Usually not. A 4S pack normally has a nominal voltage of 14.4V or 14.8V and a full-charge voltage of 16.8V. Check the equipment’s permitted input range before using it.
If each cell has a capacity of 3000mAh, a 3S2P pack provides approximately 6000mAh, or 6Ah. The actual capacity depends on the selected cells, testing conditions, temperature, and discharge current.
A standard 12V-class 3S battery pack normally requires a 3S BMS. The BMS must also match the pack’s continuous current, peak current, charging current, protection thresholds, temperature requirements, and balancing needs.
A standard 3S lithium-ion battery pack normally requires a charger or charging system with a 12.6V maximum charging voltage. The charging current must be compatible with the cells and BMS.
No. A single 18650 cell normally has a nominal voltage of approximately 3.6V or 3.7V. Three cells in series are usually required for a 12V-class pack. A boost converter can raise the voltage from one cell, but this creates a different electrical design.
The required cell count depends on the capacity of each cell. With 3000mAh cells, seven cells in parallel are needed to reach at least 20Ah:
20Ah ÷ 3Ah ≈ 6.67
The configuration would therefore be approximately 3S7P, containing 21 cells. The final design must also confirm current, space, BMS, thermal, and runtime requirements.
No. A 3S lithium-ion pack normally ranges from approximately 12.6V when fully charged to a lower voltage during discharge. A regulated DC-DC converter may be required when the device needs a stable output.
A standard 12V-class 18650 lithium-ion battery pack normally uses a 3S configuration:
3S1P = 3 cells
3S2P = 6 cells
3S3P = 9 cells
3S4P = 12 cells
The series count determines voltage, while the parallel count determines capacity and theoretical current capability.
A typical 3S pack uses a 3S BMS and a charging system matched to a 12.6V full-charge voltage. The final configuration should also account for device power, peak current, required runtime, available space, temperature, wiring, connectors, and protection requirements.
For OEM applications, prototype testing is essential before volume production.
