An 18650 battery is made of several precisely engineered components, including a cathode, anode, separator, electrolyte, current collectors, steel casing, terminal assembly, and insulating materials. The cell is manufactured through electrode preparation, coating, drying, winding, electrolyte filling, sealing, formation, aging, grading, and final testing.
The term “18650” describes the cylindrical cell format, not one specific battery chemistry. Different 18650 cells may use different cathode materials, electrode designs, additives, and manufacturing processes. These differences affect capacity, discharge current, cycle life, thermal behavior, and overall reliability.
For OEM projects, understanding what is inside an 18650 cell helps engineers evaluate whether a supplier can provide consistent quality rather than simply comparing capacity labels or unit prices.

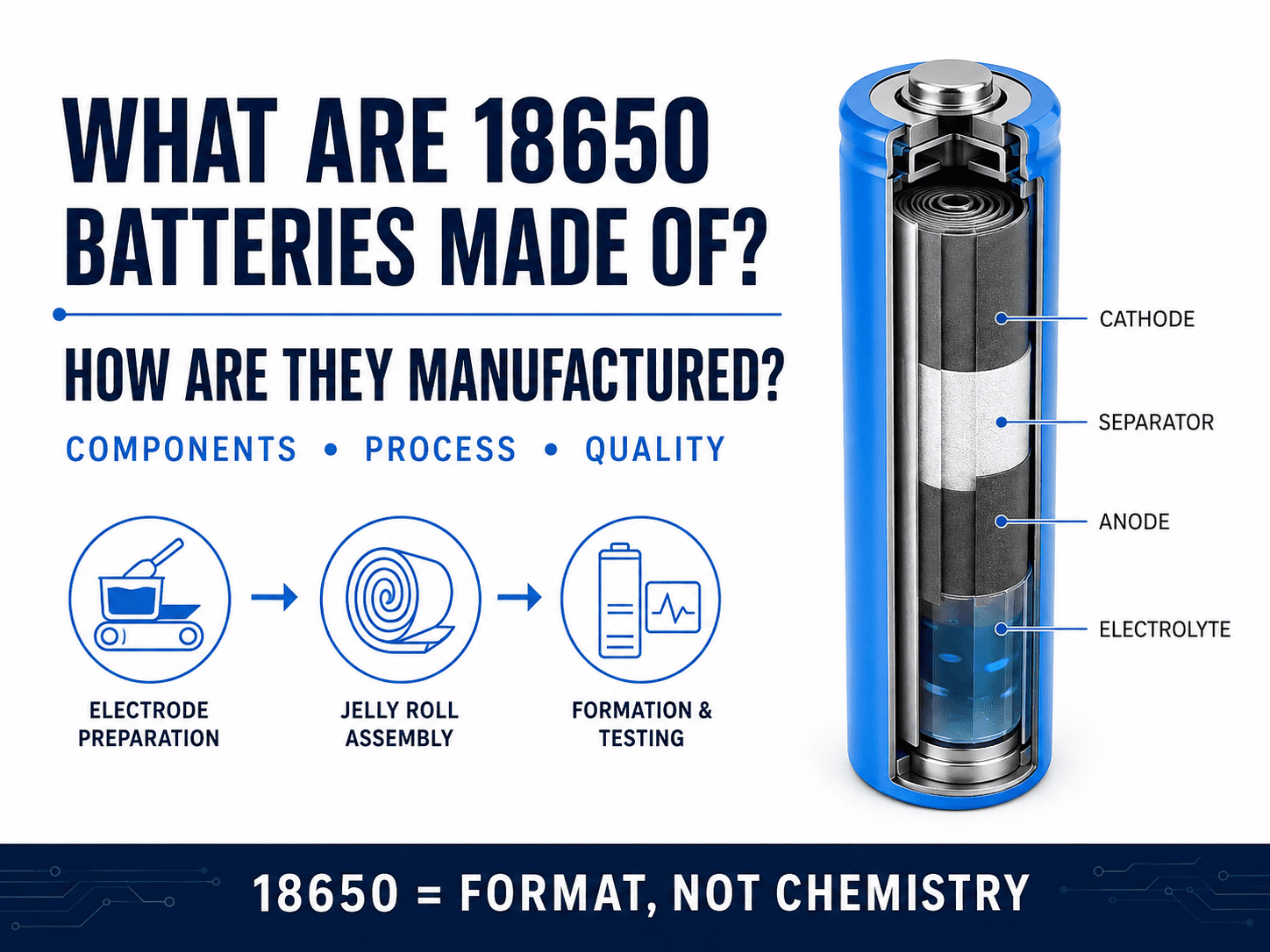

The main components of an 18650 lithium-ion cell are shown below.
Component | Typical Materials | Main Function |
|---|---|---|
Cathode | Lithium-containing oxide or phosphate materials | Stores and releases lithium ions during operation |
Anode | Graphite, carbon, or graphite blended with silicon | Stores lithium ions during charging |
Separator | Microporous polymer film, sometimes ceramic-coated | Prevents direct contact between the electrodes |
Electrolyte | Lithium salt, organic solvents, and additives | Allows lithium-ion movement between electrodes |
Cathode current collector | Aluminum foil | Conducts electrons from the cathode |
Anode current collector | Copper foil | Conducts electrons from the anode |
Conductive additives and binders | Conductive carbon and polymer binders | Improve conductivity and electrode adhesion |
Steel casing | Cylindrical steel can | Protects the internal roll and provides mechanical strength |
Top cap and safety parts | Cap, gasket, vent, and other safety components | Seal the cell and manage abnormal pressure or current conditions |
Insulation | Wrapper, top insulator, and internal insulating parts | Prevents unintended electrical contact |
An 18650 lithium battery is therefore a complete electrochemical assembly rather than a simple container filled with lithium material.
The cathode is the positive electrode during discharge. It contains a lithium-based active material that releases lithium ions during discharge and accepts them during charging.
Common cathode material families used in lithium-ion cells include:
Lithium cobalt oxide, or LCO
Lithium nickel manganese cobalt oxide, or NMC
Lithium nickel cobalt aluminum oxide, or NCA
Lithium manganese oxide, or LMO
Lithium iron phosphate, or LFP
Not every chemistry is used in every 18650 cell. The selected cathode affects the cell’s operating voltage, energy density, discharge capability, thermal characteristics, cost, and cycle life.
Cathode powder is normally combined with a conductive additive and a binder before it is coated onto aluminum foil. The active material stores energy, the conductive additive improves electron movement, and the binder helps keep the coating attached to the foil.
A cathode designed for high energy density may prioritize capacity and compact energy storage. A power-oriented cathode and electrode design may instead focus on lower resistance and higher current output. These objectives often require different material ratios, coating thicknesses, and manufacturing controls. These material and performance trade-offs are also reflected in ICR, IMR and INR 18650 batteries, although the designation still needs to be checked against the model-specific datasheet.
The anode is the negative electrode during discharge. Graphite is the most common anode material in conventional lithium-ion 18650 cells. It may be produced from natural graphite, synthetic graphite, or a combination of carbon-based materials.
Some newer cell designs use silicon-enhanced graphite. Silicon can increase theoretical capacity, but it also expands and contracts significantly during cycling. As a result, silicon-containing anodes require careful material formulation and process control.
The anode is coated onto copper foil. During charging, lithium ions move through the electrolyte and become stored within the anode structure. During discharge, these ions move back toward the cathode.
Anode performance influences:
Usable capacity
Charging behavior
Internal resistance
Cycle life
Low-temperature performance
Risk of lithium plating under unsuitable charging conditions
This is why a higher capacity rating does not automatically mean that one cell is better for every application.
The separator is a thin, microporous film placed between the cathode and anode. Its main purpose is to prevent the electrodes from touching each other and creating an internal short circuit.
At the same time, the separator must allow lithium ions to pass through its pores. It therefore needs to provide both electrical isolation and ionic transport.
Many separators are made from polyolefin materials such as polyethylene or polypropylene. Some designs also use a ceramic coating to improve dimensional stability and thermal performance.
Separator quality depends on factors such as:
Thickness uniformity
Porosity
Mechanical strength
Thermal shrinkage
Pore structure
Resistance to tearing during winding
Even a small defect, wrinkle, or misalignment can affect cell safety and consistency. Separator handling is especially important during the winding process because the material must remain correctly positioned throughout the cylindrical electrode roll.
The electrolyte enables lithium ions to move between the cathode and anode. It commonly contains a lithium salt, often lithium hexafluorophosphate, dissolved in organic solvents with carefully selected additives.
The electrolyte must provide sufficient ionic conductivity while remaining compatible with the electrode materials and operating voltage range.
Electrolyte formulation can affect:
Internal resistance
Charging performance
Cycle life
Gas generation
Low-temperature behavior
High-temperature stability
Formation of the solid-electrolyte interphase
The electrolyte is also sensitive to moisture and contamination. For this reason, electrolyte filling is normally performed in a controlled production environment. Poor moisture control can lead to unwanted reactions, increased gas generation, higher resistance, and reduced long-term reliability.
The active electrode materials do not normally carry current by themselves efficiently enough for a practical cell. They are applied to metal foils that act as current collectors.
Typical current collector materials are:
Aluminum foil for the cathode
Copper foil for the anode
The electrode coating also includes conductive carbon and a polymer binder. Conductive carbon creates additional electron pathways through the coating, while the binder holds the active particles together and attaches them to the metal foil.
The balance between active material, conductive additive, binder, solvent, coating weight, and porosity is important. Excessive binder may reduce active material content. Insufficient binder may cause poor adhesion or cracking. An uneven conductive network can increase resistance and create local heating.
The internal electrode assembly is placed inside a cylindrical steel can. The steel casing provides:
Mechanical protection
Dimensional stability
Resistance to external impact
A sealed environment for the electrolyte and electrode roll
A consistent cylindrical form for pack assembly
The top of the cell usually includes a terminal cap, gasket, insulating parts, and pressure-management features. Depending on the cell design, the cap assembly may include a pressure vent, current-interrupt device, positive temperature coefficient element, or other protective components.
The exact design varies by manufacturer and model. The steel casing itself should not be treated as a complete safety system. Cell safety depends on the chemistry, electrode design, separator, sealing process, protection components, charging conditions, and final application.
Two cells can share the same 18650 dimensions but have very different performance characteristics.
Energy-focused cells are designed to store more energy in the available cylindrical volume. They may use high-capacity electrode materials and optimized coating designs.
These cells can be suitable for:
Portable electronics
Backup equipment
Long-runtime instruments
Low-to-moderate power battery packs
However, the highest capacity cell is not necessarily the best choice for a device with high startup current or continuous heavy loads.
Power-focused cells are designed to deliver higher current with lower voltage drop and lower internal resistance. They may use different active material ratios, thinner electrodes, stronger current pathways, or other design adjustments.
These cells may be more suitable for:
Power tools
Motor-driven equipment
High-power portable devices
Devices with short-duration current peaks
The trade-off may involve lower nominal capacity, higher cost, or different thermal requirements. For devices with sustained or pulsed high-current demand, high-drain 18650 battery selection should be based on the cell’s actual current rating, internal resistance, voltage sag, and thermal limits.
The 18650 format only describes the approximate cylindrical size. It does not identify:
Cathode chemistry
Anode formulation
Rated capacity
Continuous discharge current
Maximum charging current
Cutoff voltage
Internal resistance
Cycle-life conditions
Safety design
OEM teams should therefore evaluate the complete datasheet and test conditions instead of selecting a cell based only on the 18650 name or printed capacity.
The manufacturing process normally includes electrode preparation, cell assembly, electrolyte filling, formation, aging, grading, and final inspection.
Manufacturers first inspect incoming active materials, conductive additives, binders, metal foils, separators, electrolytes, and casing parts.
Important controls may include:
Material identity
Purity and moisture content
Particle size distribution
Foil thickness
Separator dimensions
Supplier batch information
Packaging condition
Consistent raw materials are necessary for consistent cell performance. A supplier that cannot maintain material traceability may have difficulty identifying the cause of batch-to-batch variation.
Cathode and anode materials are mixed separately.
A typical electrode slurry contains:
Active material
Conductive additive
Binder
Solvent
The mixing process must achieve a uniform distribution of all ingredients. Poor dispersion can create areas with different resistance, weak adhesion, or uneven electrochemical activity.
Mixing time, order of addition, viscosity, temperature, and moisture control can all influence the final coating quality.
The cathode slurry is coated onto aluminum foil, while the anode slurry is coated onto copper foil.
The coating machine controls parameters such as:
Coating thickness
Loading weight
Coating width
Edge alignment
Surface uniformity
Line speed
Uniform coating is essential because differences in active material loading can create capacity imbalance and uneven current distribution inside the cell.
The coated foils pass through drying equipment to remove the processing solvent. Drying must be controlled carefully.
Insufficient drying can leave residual solvent or moisture. Excessive or uneven drying may cause cracking, poor adhesion, or changes in electrode structure.
After drying, the electrodes may undergo vacuum drying to further reduce moisture before cell assembly.
Calendering compresses the coated electrode between rollers. This process controls electrode density, thickness, porosity, and surface smoothness.
The correct balance is important. Excessive compression may restrict electrolyte penetration, while insufficient compression may reduce energy density or weaken the electrode structure.
The large coated rolls are then slit into narrower strips. The edges must be controlled carefully because metal burrs can damage the separator or contribute to an internal short circuit.
The anode, separator, and cathode are arranged in layers and wound into a cylindrical structure commonly called a jelly roll.
The winding process must control:
Electrode alignment
Winding tension
Separator overlap
Tab position
Roll diameter
Edge condition
Misalignment or excessive tension can create uneven pressure and nonuniform current distribution. The finished roll is then inserted into the steel can.
The electrode tabs are welded to the appropriate current paths and terminal components. Welding quality affects electrical resistance, mechanical strength, and heat generation during high-current operation.
The assembly may also include:
Insulating discs
Gaskets
Top cap components
Protective vents
Internal spacers
The steel can is then closed using a controlled sealing or crimping process.
The sealed electrode assembly is filled with electrolyte, often under vacuum or controlled pressure conditions.
The electrolyte must wet the porous electrodes and separator thoroughly. Incomplete wetting can increase resistance and reduce usable capacity.
This stage requires careful control of:
Electrolyte quantity
Filling pressure
Filling time
Moisture level
Cell temperature
Sealing conditions
Formation is the first controlled charging and discharging stage of the cell. It helps establish the electrochemical interfaces required for stable operation, including the solid-electrolyte interphase on the anode.
Formation parameters may include:
Initial charging current
Voltage limits
Rest periods
Temperature
Number of cycles
Charging and discharging sequence
This stage has a major influence on initial performance, gas generation, internal resistance, and long-term stability.
After formation, cells normally rest for a controlled period. During aging, manufacturers may monitor voltage retention, self-discharge, internal resistance, and other indicators.
Cells are then tested and graded according to parameters such as:
Capacity
Open-circuit voltage
Internal resistance
Charge acceptance
Discharge performance
Physical dimensions
Weight
Leakage or sealing condition
Cells with similar electrical characteristics can be grouped for battery pack production. This is particularly important for multi-cell packs because variation between cells can affect balance, runtime, current sharing, and service life. Capacity, internal resistance, voltage retention, and self-discharge should be checked under consistent conditions; these are the core measurements in 18650 battery capacity and health testing. Grouping cells with similar electrical results is the starting point for cell matching in an 18650 battery pack, especially when several cells will operate in series or parallel.
Manufacturing Control | Potential Effect on Cell Performance |
Electrode coating uniformity | Capacity consistency and resistance distribution |
Moisture control | Electrolyte stability, gas generation, and cycle life |
Calendering accuracy | Energy density, porosity, and electrolyte wetting |
Winding alignment | Internal short-circuit risk and current uniformity |
Welding quality | Voltage drop, heat generation, and mechanical reliability |
Electrolyte filling | Initial resistance and usable capacity |
Formation conditions | Initial performance and long-term stability |
Aging and grading | Early defect detection and cell matching |
Batch traceability | Root-cause analysis and production control |
A capable supplier should be able to explain not only which cell model is being offered, but also how its materials, production lots, testing conditions, and process changes are controlled.
For an OEM project, supplier evaluation should cover both the cell specification and the manufacturing system. The following information is particularly useful:
Exact cell model and chemistry
Rated capacity and test conditions
Continuous and peak discharge current
Recommended charging current
Operating temperature range
Cutoff voltage and voltage limits
Internal resistance test method
Capacity tolerance between cells
Production batch identification
Quality inspection records
Sample testing process
Change-control procedure
Available certifications and compliance documents
Production capacity and expected supply continuity
For medical equipment, handheld devices, industrial instruments, and similar products, these questions should be answered before choosing an 18650 battery for an OEM device.
An 18650 cell is the individual cylindrical electrochemical unit. A battery pack combines multiple cells with electrical connections, insulation, protection electronics, structural parts, wiring, and connectors.
A complete 18650 battery pack may also require:
Series and parallel configuration
PCM or BMS protection
Cell balancing
Temperature sensing
Nickel strip or busbar welding
Custom connectors
Housing or enclosure
Thermal management
Output and charging cables
A high-quality cell can still perform poorly if the pack uses weak welds, unsuitable protection settings, poor cell matching, or inadequate thermal design.
Most OEM projects do not require a supplier to create a completely new cathode, anode, or electrolyte formulation. Changing active materials normally requires extensive laboratory validation, safety testing, production qualification, and regulatory review.
In many projects, customization is more practical at the cell-selection and pack-design level. The supplier may select a qualified cell according to the required capacity, discharge current, temperature range, dimensions, and service life, then customize the pack structure around the device.
Projects may require custom 18650 battery solutions that include:
Cell model selection
Series and parallel configuration
Protection circuit design
Connector and cable integration
Pack dimensions
Enclosure design
Thermal and mechanical support
Sample development and validation
Mass-production quality control
The 18650 format does not identify the cathode, anode, electrolyte, or performance category. Always check the model-specific datasheet.
Capacity is only one parameter. A cell with higher mAh may have a lower allowable discharge current or different temperature limits.
A clean wrapper and attractive label cannot confirm capacity, internal resistance, safety, or manufacturing consistency.
Capacity and discharge-current ratings are meaningful only when the test current, temperature, cutoff voltage, and charging method are clearly stated.
Cells with different capacities, internal resistance, age, or chemistry should not be casually mixed in the same pack.
A supplier may be able to sell individual cells but lack the equipment or process control needed for reliable pack assembly. Cell manufacturing and pack manufacturing should be evaluated separately.
An 18650 battery contains a cathode, anode, separator, electrolyte, aluminum and copper current collectors, conductive additives, binders, a steel casing, terminal components, and insulation.
No. 18650 describes a cylindrical form factor. Cells with the same dimensions may use different cathode chemistries and may be designed for high capacity, high power, long cycle life, or other requirements.
Graphite is the most common anode material. Some cells use graphite blended with silicon or other carbon-based materials to achieve specific capacity and performance objectives.
The cathode may use lithium cobalt oxide, NMC, NCA, LMO, LFP, or another qualified lithium-containing material. The exact chemistry depends on the cell design and application requirements.
The steel casing protects the wound electrode assembly, provides mechanical strength, supports consistent dimensions, and helps create a sealed cylindrical cell structure.
The separator electrically isolates the cathode and anode while allowing lithium ions to move through its micropores. It is an important component for both cell performance and internal safety.
Formation is the initial controlled charge and discharge process. It helps establish stable electrochemical interfaces and allows the manufacturer to identify cells with abnormal electrical behavior before shipment.
An OEM buyer should review the cell datasheet, test conditions, material and batch traceability, production controls, formation process, capacity grading, internal-resistance testing, sample results, and quality documentation.
In principle, material formulations can be developed for specialized applications, but this is a major engineering and qualification project. For most OEM products, selecting a qualified cell model and customizing the battery pack is more practical.
An 18650 battery is made from a carefully balanced combination of electrochemical materials, current collectors, separator film, electrolyte, steel casing, sealing parts, and insulation. Its performance depends not only on the selected chemistry, but also on coating uniformity, moisture control, winding accuracy, welding, electrolyte filling, formation, aging, and final grading.
For OEM buyers, the most important question is not simply “What is the capacity of this 18650 cell?” It is whether the supplier can control materials and manufacturing processes consistently from sample development through mass production. That capability determines whether similar-looking cells can deliver predictable capacity, current performance, safety, and service life in the finished product.
