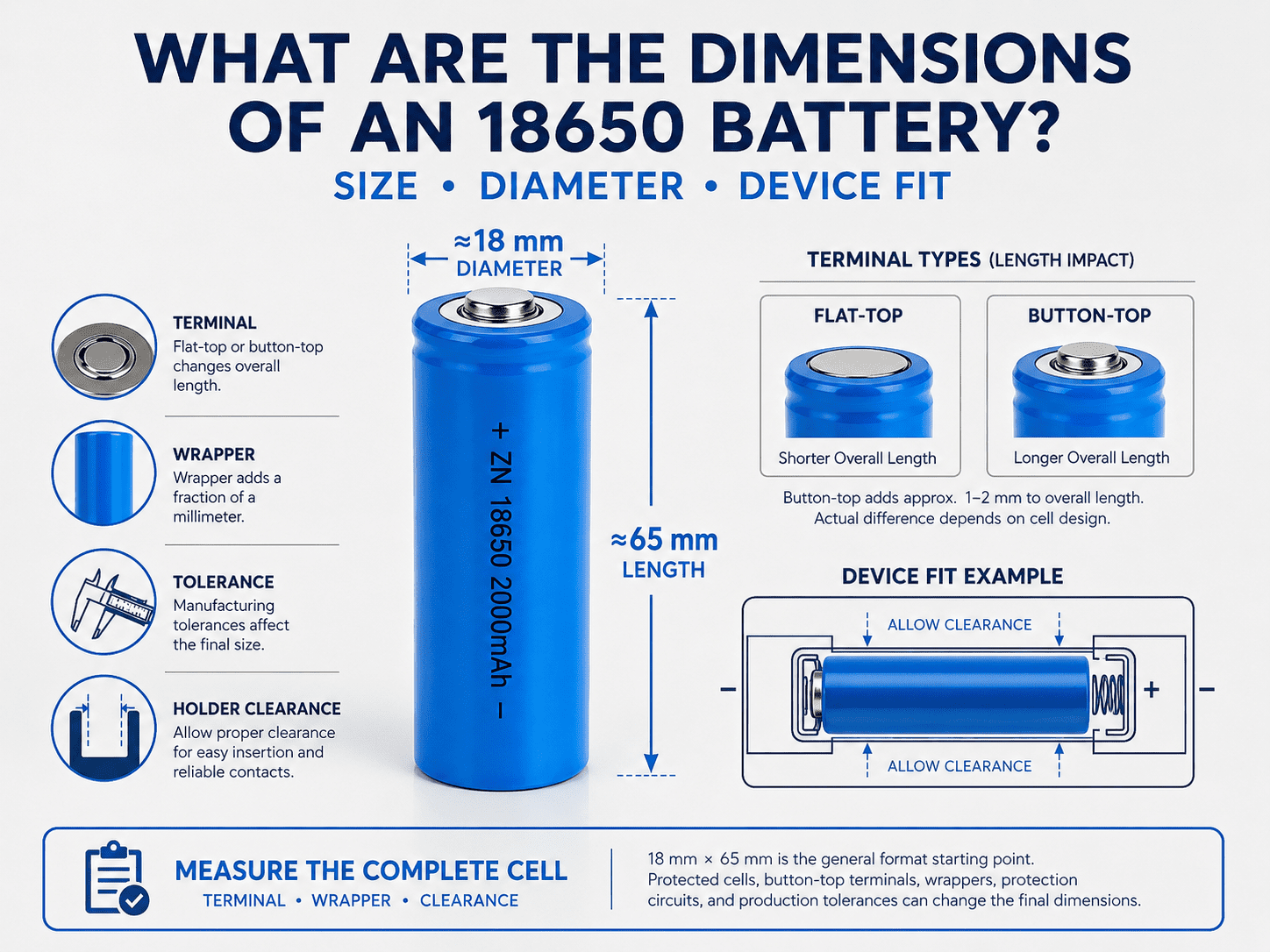

A standard 18650 battery is approximately 18mm in diameter and 65mm in length. However, these dimensions describe the general cylindrical format rather than the exact size of every finished cell.
The actual dimensions may change depending on:
Positive-terminal structure
Flat-top or button-top design
Protective wrapper
Protection circuit
Insulating ring
Manufacturing tolerance
Cell holder requirements
Customized pack construction
For a simple battery holder, a small dimensional difference may affect whether the cell can be inserted or make reliable contact. For an OEM product, the complete cell length, diameter, terminal structure, holder, BMS, wiring, insulation, and enclosure must be considered together.
The name “18650” refers to the approximate format of the cylindrical cell:
“18” indicates a diameter of approximately 18mm.
“65” indicates a length of approximately 65mm.
“0” indicates a cylindrical shape.
The numbers are not intended to define every detail of the finished battery. They do not specify:
Capacity
Voltage
Chemistry
Discharge current
Protection circuit
Exact terminal height
Final assembled length
Two cells can both be identified as 18650 while having different capacities, current ratings, terminal designs, and finished dimensions. For OEM selection, these differences should be checked against the actual 18650 lithium battery model, rather than the format name alone.
The typical unprotected 18650 cell has the following approximate dimensions:
Dimension | Typical Value |
|---|---|
Diameter | Approximately 18mm |
Cell-body length | Approximately 65mm |
Shape | Cylindrical |
Nominal format | 18650 |
Actual finished length | Depends on terminal, wrapper, and protection design |
These figures are useful for an initial design, but they should not replace measurements from the specific cell model selected for production.
A battery manufacturer may use slightly different terminal caps, wrappers, or production tolerances. The difference may be small, but it can affect a tight battery holder or compact enclosure.
The basic cell format is standardized, but the finished dimensions can vary because of the cell’s construction.
The positive terminal can be:
Relatively flat
Slightly raised
Button-top
Connected to an additional protection component
The terminal structure can affect the total cell length and the way it contacts the device.
A flat-top cell may remain close to the basic format length, while a button-top cell may extend slightly farther above the top cap. The difference becomes important when the device has a recessed contact or limited insertion clearance.
The terminal-height issue is separate from the overall cell-size question; flat-top and button-top 18650 batteries can have different contact and fit requirements.
The outer wrapper provides electrical insulation and protects the cell body from accidental contact.
Wrapper thickness can slightly affect the finished diameter. If the cell is installed in a tight holder, even a small increase may make insertion difficult or create excessive pressure.
The wrapper should not be removed simply to reduce the cell diameter. The insulation is part of the cell’s safe handling and installation requirements.
A protected 18650 cell includes an additional protection circuit, usually covered near one end of the cell.
The circuit may provide functions such as:
Overcharge protection
Over-discharge protection
Overcurrent protection
Short-circuit protection
The circuit and additional wrapper can increase the finished cell length. A protected cell may therefore be too long for a device originally designed around an unprotected cell.
No manufacturing process produces every cell at exactly the same dimension.
The production tolerance may affect:
Diameter
Length
Terminal height
Wrapper position
Contact alignment
For a loose battery holder, the tolerance may not cause a problem. For an OEM enclosure or multi-cell pack, it should be included in the mechanical design.
The diameter of an 18650 cell affects whether it can enter the holder and whether there is enough space around the cell.
A suitable fit should provide enough clearance for:
Cell insertion
Cell removal
Wrapper protection
Holder manufacturing tolerance
Thermal expansion
Mechanical vibration
Insulation materials
If the holder is too narrow, the cell may be difficult to insert or remove. Excessive pressure can also damage the wrapper or create stress on the terminals.
If the holder is too wide, the cell may move during vibration or transport. Movement can cause intermittent contact, noise, mechanical wear, or damage to the insulation.
When several 18650 cells are placed side by side, the diameter affects the total pack width.
For example, a basic arrangement of three cells may require approximately:
18mm × 3 = 54mm
This calculation does not include:
Spacing between cells
Cell holders
Insulation
Nickel strips
BMS components
Housing walls
Mechanical clearance
The finished battery pack will therefore be wider than the simple sum of the cell diameters.
Cell length is often the most sensitive dimension in a replaceable battery device.
The total length may include:
Cell body
Top cap
Positive terminal
Insulating ring
Protective circuit
Outer wrapper
Additional protection materials
A device with a spring-loaded negative contact may accommodate a small length variation. A device with fixed contacts may have a much narrower tolerance range.
Before selecting a cell, check:
Maximum permitted cell length
Positive-contact depth
Negative-spring travel
Insertion clearance
Contact pressure
Space for the wrapper
Space for a protection circuit
A cell that fits the compartment when measured externally may still fail if the positive terminal does not reach the contact correctly.
An unprotected cell generally remains closer to the basic cylindrical format. It may be suitable for:
Custom battery packs with an external BMS
Dedicated OEM equipment
Battery holders designed for unprotected cells
Applications with an integrated protection system
The absence of an individual protection circuit does not mean that the complete battery pack can operate without suitable protection.
A protected cell may be longer because it includes a protection circuit and additional covering.
It may be useful in some removable-cell products, but the complete length must be checked before installation.
A protected cell can create compatibility issues when:
The compartment is too short
The positive terminal is already raised
The holder has limited spring travel
The enclosure has no space for additional wrapper thickness
Several cells must be arranged closely together
The decision between a protected and unprotected cell should be made together with the equipment’s protection architecture, cell length, and holder design; protected and unprotected 18650 batteries are not interchangeable in every device.
A battery holder should be selected according to the actual cell model rather than the format name alone.
The holder may use:
Spring-loaded contacts
Flat metal contacts
Recessed positive contacts
Fixed contact plates
Welded connections
Custom terminals
Each structure has a different tolerance range.
A recessed positive contact may require a raised terminal. A spring contact may accommodate different lengths, but its travel and contact pressure must still be tested.
The holder should prevent excessive movement while allowing safe insertion and removal.
Important design considerations include:
Cell retention
Vibration resistance
Shock resistance
Contact stability
Insulation
Replacement access
Assembly tolerance
A loose cell can lose contact when the device is moved. A holder that grips the cell too tightly may damage the wrapper or make maintenance difficult.
The enclosure should include space for more than the cell body.
Allow room for:
Battery holder walls
Insulation
BMS
Wires
Connectors
Temperature sensors
Heat dissipation
Assembly tools
Service access
These details are especially important when the 18650 battery is integrated into a compact medical device, wearable product, handheld instrument, or portable industrial system.
The dimensions of a finished battery pack depend on the cell arrangement and all additional components.
A custom pack may include:
Multiple 18650 cells
Cell holders or spacers
Nickel strips or busbars
BMS circuit board
Protection materials
Temperature sensors
Wires
Connectors
Housing
Mounting features
A basic cell-count calculation does not provide the final pack dimensions.
For example, a pack containing six cells may be arranged in different ways depending on the required voltage, capacity, and enclosure shape. The same number of cells can produce different pack lengths, widths, and heights when the layout changes. Those layout choices depend on the series and parallel configurations for 18650 batteries, which determine how the same cells are grouped inside the available space.
A complete 18650 battery pack solution should therefore be designed around both electrical requirements and the available installation space.
Record:
Maximum length
Maximum diameter
Available width and height
Contact depth
Spring travel
Insertion direction
Removal space
Housing clearance
Measurements should be taken from the actual equipment enclosure rather than from a general drawing whenever possible.
Confirm whether the design requires:
Flat-top or button-top
Protected or unprotected cell
Standard or customized terminal
Individual cell holder
Welded battery pack
External BMS
The cell structure affects both the electrical connection and the final mechanical dimensions.
The design should include the dimensions of:
BMS
Insulation
Cell spacers
Wires
Connectors
Temperature sensors
Housing
Fixing brackets
A battery pack that fits the cell compartment without these components is not a complete design. The BMS layout is part of the pack geometry as well as the protection system, so 18650 battery pack BMS design should be considered before the enclosure is finalized.
Create a sample using the actual cell model and intended components.
Check:
Insertion and removal
Contact reliability
Vibration performance
Heat dissipation
Wire routing
Housing closure
Connector access
Battery replacement procedure
The broader OEM 18650 battery selection process should include this mechanical review alongside voltage, capacity, current, charging, and temperature requirements.
Assuming every 18650 cell is exactly 18mm × 65mm.
Measuring only the cell body.
Ignoring positive-terminal height.
Forgetting the extra length of a protection circuit.
Removing the wrapper to make a cell fit.
Failing to allow space for insulation.
Using a holder with insufficient contact travel.
Leaving too much clearance around the cell.
Ignoring movement under vibration.
Designing the enclosure before selecting the final cell model.
Forgetting space for the BMS and connector.
Approving production without testing a complete sample pack.
A typical 18650 cell is approximately 18mm in diameter and 65mm in length. The actual finished dimensions depend on the terminal, wrapper, protection circuit, and manufacturing tolerance.
No. The 18650 format provides a general size classification, but different cells may vary in length, diameter, terminal height, wrapper thickness, and protection design.
A protected 18650 battery is usually longer than a basic unprotected cell because of the protection circuit and additional wrapper. The exact length depends on the manufacturer and model.
Not necessarily. The added protection circuit may make the cell too long for the holder or enclosure. The complete finished length must be checked.
The typical diameter is approximately 18mm. The final diameter may vary slightly because of the wrapper, insulation, and production tolerance.
The basic cell format is approximately 65mm long. A button-top or protected cell may be longer.
Not always. A button-top cell usually has a raised positive terminal and may be slightly longer. The exact dimensions depend on the cell model.
The required clearance depends on the cell tolerance, holder design, terminal structure, wrapper, and insertion method. OEM projects should validate the actual cell and holder combination rather than rely on a general clearance value.
Yes. 18650 cells can be arranged into customized battery packs with different voltage, capacity, BMS, connector, and housing configurations. The final pack dimensions depend on the cell arrangement and additional components.
They should measure the equipment compartment, confirm contact geometry, select the final cell model, include BMS and insulation space, produce samples, and test insertion, contact reliability, vibration, temperature, and enclosure fit.
For OEM products, the battery design may require customized:
Cell arrangement
Pack length and width
Pack height
Terminal structure
Connector position
Wire length
BMS location
Housing shape
Mounting features
Protection materials
These requirements should be defined before mass production begins.
ZERNE’s custom 18650 battery solutions can integrate cell selection, mechanical dimensions, battery pack structure, BMS, connectors, sample testing, and production requirements into one OEM development process.
A typical 18650 battery is approximately 18mm in diameter and 65mm in length, but the actual finished size can vary.
The final dimensions are affected by:
Positive-terminal design
Flat-top or button-top structure
Protection circuit
Wrapper thickness
Insulating ring
Manufacturing tolerance
Battery holder
BMS and pack components
For a simple device, the format name may provide a useful starting point. For an OEM product, the complete cell and battery pack must be measured and validated in the actual enclosure.
A reliable 18650 battery fit depends on more than diameter and length. Contact structure, mechanical clearance, protection design, wiring, insulation, thermal conditions, and production tolerances all need to be included before the design is approved.
