Flat-top and button-top 18650 batteries have the same general cylindrical format, but their positive terminals are designed differently. This small structural difference can determine whether a cell makes reliable contact with a device, battery holder, or battery pack.
A flat-top 18650 battery has a relatively level positive end. A button-top 18650 battery has a raised positive terminal that extends above the cell cap.
Neither design is universally better. The correct choice depends on:
Device contact structure
Battery holder design
Available installation length
Protection circuit
Cell connection method
Required current
Battery pack layout
OEM enclosure dimensions
A button-top cell may fit a device that uses fixed positive and negative contacts, while a flat-top cell is often more practical for welded battery packs. However, the actual cell dimensions and terminal structure must be checked before making a final selection.

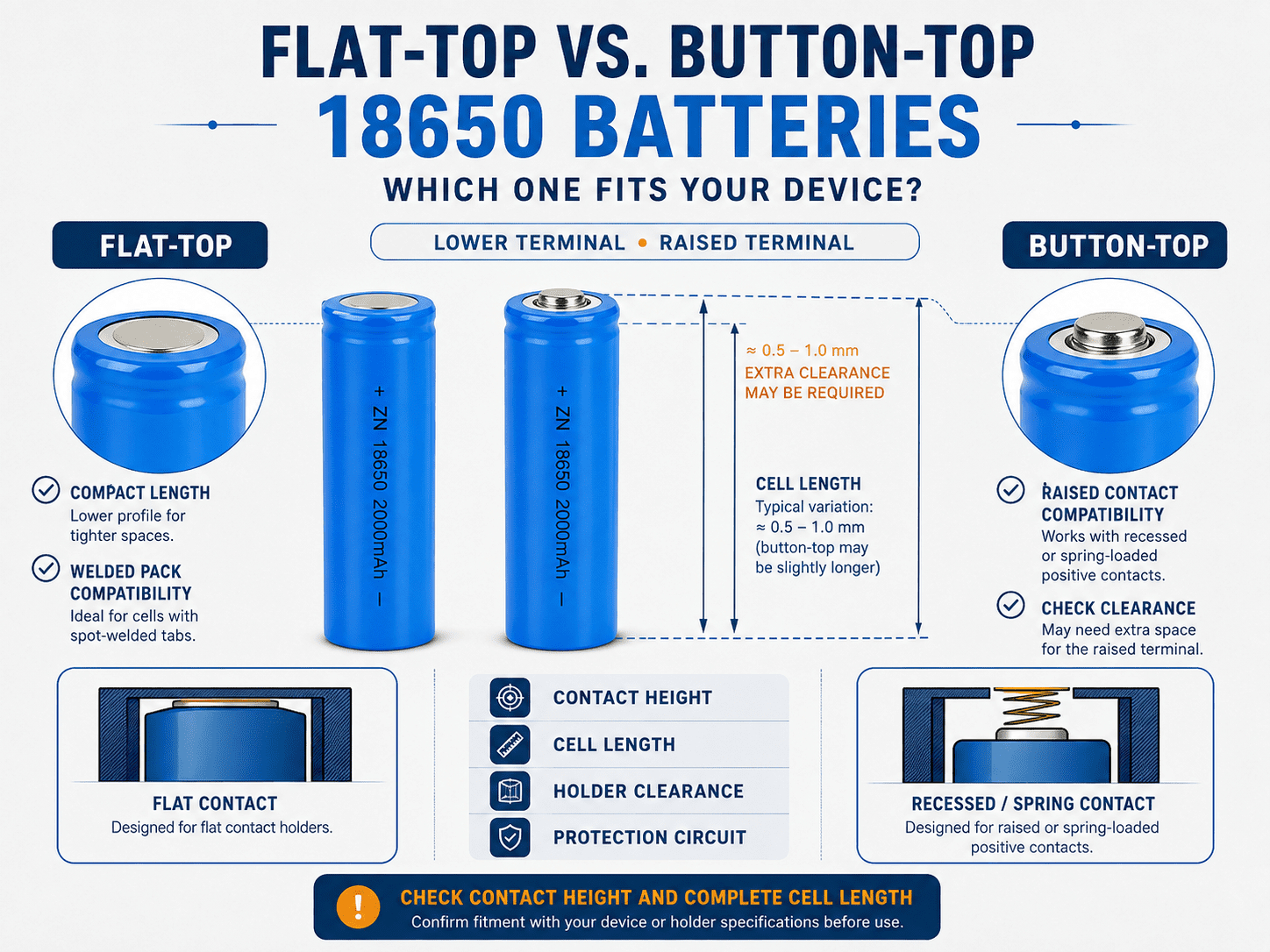

Feature | Flat-Top 18650 | Button-Top 18650 |
|---|---|---|
Positive terminal | Relatively level with the top cap | Raised positive contact |
Overall length | Usually shorter | Usually slightly longer |
Common connection method | Spot-welded battery packs and custom packs | Spring-loaded holders and devices with recessed contacts |
Device contact requirement | Needs a contact that reaches the positive terminal | Works with contacts designed for a raised terminal |
Pack layout | Easier to arrange in compact welded packs | May require additional clearance |
Protection circuit | May be unprotected or protected | May be unprotected or protected |
Main design benefit | Compact length and pack flexibility | Easier contact in some removable devices |
Main risk | May not reach a recessed contact | May be too long for a tight battery compartment |
The terminal style should always be evaluated together with the complete cell length. A cell described as button-top may also include a protection circuit, outer wrapper, or other features that increase its total length.
A flat-top 18650 battery has a positive terminal that sits close to the top surface of the cell.
The terminal is not necessarily perfectly flat. Some models may have a small raised contact, but it is generally lower than the positive terminal on a button-top cell.
Flat-top cells are commonly used in:
Custom lithium-ion battery packs
Spot-welded cell assemblies
Battery packs with nickel strips
Equipment designed around dedicated cell holders
Applications with limited installation length
OEM products requiring a defined terminal layout
The shorter terminal structure can make it easier to maintain a compact pack design. It may also provide more predictable spacing when cells are arranged side by side.
However, a flat-top cell may not make reliable contact in a device designed for a raised positive terminal.
A button-top 18650 battery has a raised positive terminal that resembles a small button.
The raised terminal can help the battery connect with:
Spring-loaded battery contacts
Recessed positive terminals
Devices with a fixed contact depth
Holders designed for button-top cells
Products that require additional positive-terminal height
Button-top cells are often used in removable battery devices where the positive contact is not designed to press directly against a level cell cap.
The exact height of the button varies between cell models. Some button-top cells have a relatively low raised contact, while others extend further above the top cap. This difference can affect compatibility even between two cells that are both described as button-top.
The positive terminal must make firm electrical contact with the device or holder. If it is too low, the device may not recognize the battery or may operate intermittently.
Insufficient terminal contact can cause:
Device startup failure
Intermittent power loss
Increased contact resistance
Localized heating
Voltage drop
Flickering or unstable operation
Damage to the holder contact over time
A button-top cell may solve a contact problem in a device with a recessed positive terminal. However, if the device has limited internal space, the raised terminal may prevent the battery from being inserted correctly.
Terminal height is therefore a mechanical and electrical issue at the same time.
The total length of an 18650 cell depends on more than the cylindrical body.
It may include:
Cell body
Positive terminal
Top cap
Insulating ring
Protective wrapper
Protection circuit
Additional welded or protective components
A button-top cell is often slightly longer than an equivalent flat-top cell because of the raised terminal.
A protected cell can be longer still because the protection circuit is usually mounted near the bottom or top of the cell and covered with an additional wrapper.
For a battery compartment with limited clearance, the complete length should be measured rather than estimated from the “18650” label.
The number 18650 generally refers to an approximate cell format, not the exact finished dimensions of every product.
Two cells may have:
The same diameter
The same nominal length
Different positive-terminal heights
Different wrapper thicknesses
Different protection circuit layouts
Different finished lengths
A mechanical fit check should consider the complete cell, not only the basic cylindrical size. That is why 18650 battery dimensions, size, diameter, and length should be checked against the actual holder and enclosure before the cell model is approved.
For a broader enclosure review, include cell length, terminal height, holder clearance, wrapper thickness, and pack layout together with the 18650 battery dimensions and device fit requirements.
Spring-loaded holders may accept either flat-top or button-top cells, but the contact geometry must be checked.
A holder designed for button-top cells may have:
A recessed positive contact
A fixed contact height
A shorter spring travel
A defined battery length range
A flat-top cell may not reach the contact if the holder requires a raised terminal.
A holder with flexible spring contacts may accommodate a wider range of cell lengths, but this should be verified under vibration and movement conditions.
Devices with fixed metal contacts are more sensitive to terminal height and cell length.
The design should confirm:
Positive-contact height
Negative-contact spring force
Contact travel
Contact pressure
Cell insertion direction
Maximum permitted cell length
A button-top cell may make better contact, but it can also create excessive mechanical pressure if the compartment is too short.
For an OEM product, the holder should be designed around the selected cell model rather than chosen from a general battery format.
The design should account for:
Flat-top or button-top structure
Cell tolerance
Wrapper thickness
Battery replacement method
Vibration
Shock
Temperature expansion
Assembly and service access
The terminal design should be confirmed before the enclosure and battery holder enter final production.
Flat-top cells are often convenient for custom battery packs assembled with nickel strips or busbars. The pack layout also depends on how cells are grouped; series and parallel configurations for 18650 batteries determine the electrical arrangement behind the physical layout.
The pack designer can control:
Cell spacing
Terminal insulation
Weld location
Current path
BMS connection
Pack height
Wire routing
The terminal arrangement should still be checked carefully. The top cap, insulating ring, and positive terminal must be protected from accidental contact with the nickel strip or neighboring cell body.
Button-top cells can also be used in battery packs, but their raised terminals may affect:
Nickel strip alignment
Weld head access
Insulation clearance
Cell spacing
Pack height
Mechanical compression
Housing design
The raised terminal should not create unwanted pressure against the enclosure or adjacent components.
Flat-top and button-top cells should not be mixed in the same battery pack simply because they have the same nominal voltage.
Differences in terminal structure can cause:
Uneven mechanical contact
Different connection pressure
Inconsistent weld positioning
Increased assembly variation
Difficult insulation control
Changes in total pack dimensions
Cells in the same battery pack should also be matched by model, capacity, internal resistance, age, and production batch.
A protected 18650 cell normally includes a protection circuit that helps provide functions such as:
Overcharge protection
Over-discharge protection
Overcurrent protection
Short-circuit protection
The additional circuit and outer wrapper can increase the total cell length.
This may affect:
Battery holder compatibility
Device insertion
Pack spacing
Cell holder selection
Enclosure clearance
Contact pressure
Series battery pack layout
A device designed for an unprotected flat-top cell may not have enough room for a protected button-top cell.
The protection method should therefore be selected together with the device’s existing protection architecture. The differences between protected and unprotected 18650 batteries also affect finished length, holder compatibility, and pack design.
Check how the device connects to the cell:
Raised positive contact
Recessed positive contact
Spring contact
Flat metal contact
Contact plate
Welded connection
Custom connector
The contact structure often determines whether a flat-top or button-top design is appropriate.
Measure:
Maximum cell length
Maximum diameter
Positive-contact depth
Negative-contact travel
Holder clearance
Insertion angle
Space for insulation
Space for a protection circuit
Do not rely on the space listed for “one 18650 battery.” Confirm the dimensions of the actual cell model.
Determine whether protection is provided by:
A protected individual cell
A BMS in the battery pack
A protection circuit in the device
A combination of these systems
The protection design can affect the cell length, wiring, and available space. For multi-cell packs, these decisions also need to align with the 18650 battery pack BMS design, including its placement, wiring, and protection functions.
Terminal style does not determine electrical performance. The selected cell must also meet:
Nominal voltage
Capacity
Continuous current
Peak current
Charging current
Temperature requirements
Cycle-life target
For higher-load equipment, choosing a high-drain 18650 battery requires checking continuous current, pulse capability, voltage sag, and temperature separately from terminal style.
The cell format and terminal type are only part of the wider OEM specification; choosing an 18650 battery for an OEM device also requires checking voltage, capacity, current, charging, temperature, and validation requirements.
A sample should be tested in the actual device to confirm:
Battery insertion
Contact reliability
Startup performance
Runtime
Voltage drop
Temperature
Vibration resistance
Charging behavior
Battery replacement procedure
A cell that fits during a static measurement may still lose contact during movement or vibration.
OEM Requirement | More Suitable Direction |
Recessed positive contact | Button-top may be suitable |
Very limited battery length | Flat-top may be easier to integrate |
Spot-welded custom battery pack | Flat-top is often easier to arrange |
Replaceable cell with spring holder | Depends on holder design |
Protected individual cell | Check the complete finished length |
Compact custom enclosure | Usually evaluate flat-top first |
Device already designed for button-top | Use the specified button-top structure |
New OEM product | Select the terminal style during mechanical design |
This table is only a starting point. The final decision should be based on the actual cell, holder, enclosure, and load conditions.
Assuming all 18650 cells have the same terminal height.
Choosing a cell only from its nominal format.
Measuring the cell body but ignoring the positive terminal.
Forgetting that a protection circuit increases total length.
Using a flat-top cell in a holder with a recessed positive contact.
Using a button-top cell in a compartment with insufficient clearance.
Mixing flat-top and button-top cells in one battery pack.
Ignoring contact pressure and vibration.
Assuming a button-top cell always provides better contact.
Selecting the terminal type before confirming the BMS and pack structure.
Failing to test the cell in the actual device.
Treating a static fit check as proof of long-term compatibility.
A flat-top cell has a relatively level positive terminal, while a button-top cell has a raised positive contact. This difference affects the battery’s total length and compatibility with device contacts.
A button-top cell is often slightly longer than a similar flat-top cell. A protected cell may be longer still because of its protection circuit and additional wrapper.
Not always. If the device requires a raised positive terminal, a flat-top cell may not make reliable contact. The holder and terminal depth must be checked first.
Not always. A button-top cell may be too long for a tight compartment or may create excessive pressure against the holder or enclosure.
Flat-top cells are often easier to arrange in spot-welded custom packs, but the final choice depends on the pack structure, terminal layout, protection method, and enclosure.
No. Button-top describes the positive-terminal structure. A button-top cell may be protected or unprotected.
No. Flat-top cells can also include protection circuits. The actual total length and protection design must be confirmed from the cell specification.
They should not be mixed casually. Differences in terminal height and total length can create mechanical and connection problems, even if the cells have similar electrical specifications.
The OEM team should inspect the device contacts, measure the complete battery compartment, confirm the protection structure, check current and voltage requirements, and validate both the cell and holder through sample testing.
The flat-top or button-top structure does not directly determine capacity. Capacity depends on the cell’s internal design and specification. However, terminal structure can affect whether the cell can be used in a particular device or pack.
Flat-top and button-top selection should be finalized before the battery pack enters detailed mechanical design.
A custom battery pack may need to coordinate:
Cell terminal type
Cell dimensions
Capacity
Voltage
Current
BMS
Protection circuit
Insulation
Connector
Wire routing
Housing
Charging interface
ZERNE’s 18650 Battery Pack solutions can be developed around the equipment’s electrical, mechanical, and protection requirements.
For products that require customized cell selection, enclosure fit, terminal structure, and production validation, the requirements can be integrated into custom 18650 battery solutions.
Flat-top and button-top 18650 batteries are not interchangeable by default.
A flat-top cell usually has a lower positive terminal and may be easier to integrate into compact welded battery packs. A button-top cell provides a raised contact that may work better with certain spring-loaded holders or recessed device contacts.
The correct choice depends on:
Positive-terminal height
Complete cell length
Battery holder design
Device contact structure
Protection circuit
Pack layout
Enclosure clearance
Electrical load
OEM validation results
For a reliable product design, the terminal type should be selected together with the cell model, protection system, battery holder, and complete battery pack structure.
