When comparing a 21700 battery with an 18650 battery, the main differences are physical size, capacity, current capability, and device compatibility.
A 21700 cell is larger than an 18650 cell and often provides higher capacity and greater absolute discharge current. An 18650 cell is smaller, lighter, and compatible with a wider range of compact devices and existing battery pack designs.
Both formats are commonly available as standard lithium-ion cells with a nominal voltage of 3.6V or 3.7V and a full-charge voltage of approximately 4.2V. However, similar voltage does not mean that a 21700 battery can directly replace an 18650 battery.
The correct choice depends on the device enclosure, required runtime, continuous current, peak current, battery pack structure, and thermal conditions.
Feature | 18650 Battery | 21700 Battery |
|---|---|---|
Typical diameter | Approximately 18mm | Approximately 21mm |
Typical length | Approximately 65mm | Approximately 70mm |
Typical nominal voltage | 3.6V–3.7V | 3.6V–3.7V |
Typical full-charge voltage | 4.2V | 4.2V |
Typical capacity range | Approximately 2.0–3.5Ah | Approximately 3.0–5.0Ah |
Physical size | Smaller | Larger |
Capacity per cell | Usually lower | Usually higher |
Current capability | Depends on cell model | Often higher, but model-dependent |
Device compatibility | Wider compatibility | Requires more installation space |
Typical advantage | Compact design | Higher energy and current potential |
The capacity and current figures in this table are general ranges rather than universal specifications. The actual performance of a 21700 or 18650 battery must be confirmed from the selected cell’s datasheet.

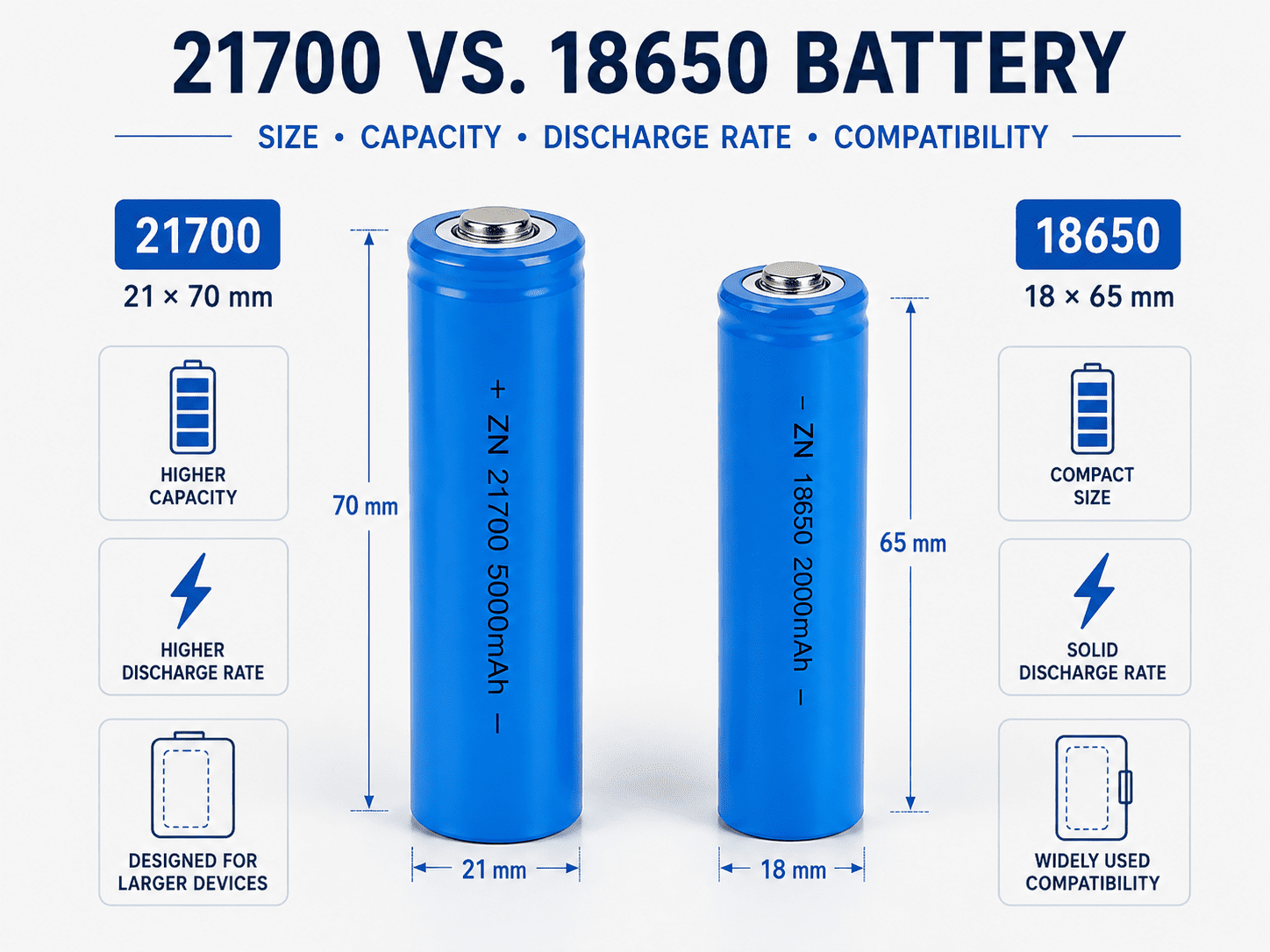

The numbers in 18650 and 21700 mainly describe the approximate dimensions of the cylindrical cell.
18650: approximately 18mm in diameter and 65mm in length
21700: approximately 21mm in diameter and 70mm in length
The dimensions may vary slightly between manufacturers and cell models. A protected cell may also be longer because of the added protection circuit, terminal structure, or outer components. In a finished device, diameter, length, terminal style, protection components, and surrounding clearance all affect fit; the 18650 battery dimensions and device fit guide addresses these requirements.
The name of the format does not indicate the cell’s capacity, discharge rate, chemistry, or quality. Two 18650 cells can have very different electrical performance, just as two 21700 cells can be designed for different applications.
The 21700 format is larger in both diameter and length.
Compared with a typical 18650 cell, a 21700 cell is:
Approximately 3mm wider
Approximately 5mm longer
Approximately 46% larger in cylindrical volume
The additional volume gives manufacturers more room for active electrode materials and current-collection components. This is one reason why many 21700 models offer higher capacity or higher current capability.
However, a larger physical size does not automatically guarantee better performance. A high-capacity 21700 and a high-drain 21700 may have very different specifications. The same applies to 18650 cells.
The difference in size has a direct effect on the mechanical design of the battery pack.
A 21700 battery pack may require:
A larger cell holder
More space between the cells and housing
A different nickel strip layout
A larger enclosure
Revised BMS positioning
Different wire and connector routing
Additional thermal management
An 18650 battery pack may be a better choice when the equipment has a narrow battery compartment or when the existing design already uses 18650 holders.
A 21700 cell usually provides higher capacity than an 18650 cell of a similar technology generation.
Typical examples include:
18650 cells: approximately 2.0Ah to 3.5Ah
21700 cells: approximately 3.0Ah to 5.0Ah
These are only general market ranges. Some high-drain 18650 cells may have lower capacity but higher current capability. Some 21700 cells may also prioritize power output over energy storage. Capacity labels should still be separated from current capability; 18650 capacity in mAh and Ah explains how common capacity ratings should be interpreted.
When comparing two cells, capacity should be reviewed together with:
Continuous discharge current
Internal resistance
Cycle life
Operating temperature
Charge current
Recommended cutoff voltage
Test conditions
Battery energy can be estimated with the following formula:
Pack energy = Nominal voltage × Pack capacity
For example, consider two battery packs with the same 3S2P structure:
Battery Pack | Cell Capacity | Pack Capacity | Approximate Nominal Energy |
3S2P with 18650 cells | 3.0Ah | 6.0Ah | 66.6Wh |
3S2P with 21700 cells | 4.0Ah | 8.0Ah | 88.8Wh |
The calculation uses an 11.1V nominal pack voltage:
For a preliminary 18650 pack estimate, the 18650 battery pack calculator can be used to check series count, parallel count, capacity, and nominal energy.
18650 pack: 11.1V × 6Ah = 66.6Wh
21700 pack: 11.1V × 8Ah = 88.8Wh
The 21700 pack provides more nominal energy in this example, but the actual runtime will depend on the equipment’s load, conversion efficiency, temperature, battery aging, and BMS protection settings. A complete estimate should also include usable energy and conversion efficiency; 18650 battery pack capacity and runtime calculations show how these factors affect actual runtime.
No. A 21700 battery often has a higher capacity per cell, but runtime depends on the complete battery pack.
Important factors include:
Cell capacity
Series and parallel configuration
Device power consumption
Continuous discharge current
Operating temperature
Usable discharge range
DC-DC conversion efficiency
Battery age and condition
A smaller 18650 pack may be sufficient for a low-power device, while a 21700 pack may be preferable when the same enclosure can accommodate the larger cells and longer runtime is required.
Many 21700 cells can provide higher absolute current than many 18650 cells. The larger format can allow greater active electrode area, lower resistance, and improved heat dissipation.
However, the format alone cannot determine current capability.
A high-drain 18650 cell may provide more current than a high-capacity 21700 cell. For this reason, the comparison should focus on the specific cell model rather than only the 18650 or 21700 label. The same distinction matters in high-current applications, where high-drain 18650 battery selection should be based on continuous current, peak current, voltage sag, and thermal limits rather than cell format alone.
The datasheet should be checked for:
Continuous discharge current
Maximum pulse current
Recommended discharge temperature
Internal resistance
Thermal test conditions
Cutoff voltage
Cooling requirements
C-rate is calculated using:
C-rate = Discharge current ÷ Cell capacity
For example:
A 3000mAh cell discharging at 15A operates at approximately 5C.
A 4000mAh cell discharging at 20A also operates at approximately 5C.
The C-rate is the same in both examples, but the second cell provides a higher absolute current.
A battery pack should not be selected only by its C-rate. Continuous current, peak current, cell temperature, BMS limits, and connection resistance all affect actual performance.
A 21700 battery may be a better option when:
The device requires high continuous current
The equipment needs longer runtime
The enclosure has enough space
Fewer parallel cells are preferred
Thermal performance is important
The selected 21700 model has a suitable current rating
A high-drain 18650 may still be the better option for compact equipment or products with an existing 18650 structure. The current rating of the selected cell should always be compared with the real load profile.
Applications with demanding current requirements can also be evaluated alongside ZERNE’s high-discharge battery solutions.
In most cases, a 21700 battery cannot directly replace an 18650 battery.
The main reason is physical compatibility. A 21700 cell is wider and longer, so it may not fit into:
The battery holder
The device enclosure
The cell guide
The battery compartment
The existing protection structure
The electrical interface may also require changes. The BMS, connector, wire arrangement, and charging system should be reviewed when changing the cell format. The charging system must also be selected for the final pack, not just the individual cell; how to charge 18650 batteries safely covers charger voltage, current, and charging steps.
Standard lithium-ion versions of both formats often have similar voltage characteristics:
Nominal voltage: approximately 3.6V or 3.7V
Full-charge voltage: approximately 4.2V
However, similar cell voltage is only one part of compatibility. The complete design must also match:
Series count
Charging voltage
Charging current
Discharge current
BMS protection parameters
Device input-voltage range
Cell chemistry
Mechanical dimensions
Both formats often share the same nominal and full-charge voltage framework, but the selected cell datasheet remains decisive; the 18650 battery voltage guide sets out how nominal, full-charge, and cutoff values should be interpreted.
18650 cells are generally easier to use in compact equipment because they occupy less space.
They may be suitable for:
GPS trackers
Wearable devices
Medical equipment
Portable instruments
Compact industrial devices
Small monitoring equipment
21700 cells may be more suitable for:
Robotics equipment
Higher-power portable devices
Larger industrial instruments
Equipment requiring longer operating time
Battery packs with more available space
The final choice should be based on the equipment’s dimensions and load requirements rather than the battery format alone.
Both formats can be arranged in similar series and parallel configurations, such as:
3S1P
3S2P
4S2P
6S2P
10S configurations
The series count establishes the voltage class, while the parallel count affects capacity and current capability. Configurations such as 3S2P and 4S2P follow the same principles described in how to connect 18650 batteries in series and parallel.
Even when the same configuration is used, the total battery pack size, weight, capacity, and current capability may be different.
Changing from 18650 to 21700 usually requires a new mechanical design.
The following elements may need to be adjusted:
Cell spacing
Cell holders
Nickel strip or busbar dimensions
BMS mounting position
Temperature sensor placement
Wire routing
Connector location
Enclosure dimensions
Ventilation and thermal paths
The BMS is selected mainly according to the series count, battery chemistry, protection functions, and current requirements. However, changing the cell format may change the pack’s current and thermal conditions, so the BMS should still be re-evaluated. That re-evaluation should include current limits, protection thresholds, balancing, and thermal monitoring, which are part of 18650 battery pack BMS design.
For OEM projects, ZERNE’s 18650 battery pack solutions provide a reference for evaluating cell arrangement, protection, connectors, and enclosure requirements. If the project selects the 18650 format, custom 18650 and LiPo battery solutions can be configured around the required capacity, current, dimensions, and protection needs.
Application Requirement | More Suitable Direction |
Limited installation space | 18650 |
Existing 18650 holder or enclosure | 18650 |
Higher capacity per cell | 21700 |
Longer runtime with fewer cells | 21700 |
Higher absolute current potential | Often 21700, depending on the model |
Compact GPS tracker or wearable | Usually 18650 |
New high-power battery pack | Compare both formats by datasheet |
Replacement for an existing 18650 pack | Usually 18650 |
New OEM battery pack | Select based on energy, current, dimensions, and cost |
For a new product, neither format should be selected before reviewing the actual equipment requirements. The comparison should then be carried into the OEM design stage, where voltage, runtime, installation space, charging, protection, thermal behavior, and prototype validation must be checked together; 18650 battery selection for an OEM device addresses these project-level factors. A 21700 cell may reduce the number of parallel cells, but it may also increase the size of the enclosure. An 18650 cell may fit the equipment better, but it may require more cells to reach the desired capacity or current.
Several mistakes can lead to an unsuitable battery design:
Assuming that a 21700 battery is always better than an 18650 battery.
Comparing capacity without checking continuous discharge current.
Ignoring the larger diameter and length of a 21700 cell.
Treating similar voltage as proof of direct compatibility.
Using peak current as the continuous operating current.
Reusing an 18650 battery holder for a 21700 cell.
Changing cell format without reviewing the BMS and thermal design.
Mixing 21700 and 18650 cells in the same parallel group. Cells used in the same pack should also be matched by capacity, internal resistance, voltage, age, and batch; cell matching in an 18650 battery pack explains why these differences affect pack safety and performance.
Ignoring protected-cell dimensions.
Selecting cells without testing the completed battery pack under the actual load.
Not in every application. A 21700 battery usually offers higher capacity and may provide greater absolute current, while an 18650 battery is smaller and easier to install in compact equipment.
A typical 18650 cell is approximately 18mm in diameter and 65mm long. A typical 21700 cell is approximately 21mm in diameter and 70mm long.
Usually not as a direct replacement. The 21700 cell is larger, so the holder, enclosure, wiring, and battery protection structure may need to be redesigned.
A 21700 cell generally has a higher capacity than an 18650 cell of a similar technology generation. The actual capacity depends on the cell model and manufacturer.
Some 21700 cells have higher continuous current ratings than many 18650 cells. However, a high-drain 18650 can outperform a high-capacity 21700. The cell datasheet should be used for comparison.
Standard lithium-ion versions generally have similar voltage characteristics, often around 3.6V or 3.7V nominal and 4.2V when fully charged. The precise charging and cutoff limits depend on the cell model.
Both formats can be suitable. A 21700 may provide greater current and capacity, while an 18650 may be preferable when space is limited or the equipment already uses an 18650 pack design.
They should not be mixed in the same parallel group. Differences in capacity, internal resistance, physical dimensions, and current behavior can create balancing and safety problems.
An 18650 battery is often easier to integrate into a compact GPS tracker because of its smaller size. The final choice depends on required runtime, current demand, and available space.
The decision should be based on energy requirements, continuous and peak current, runtime, dimensions, weight, thermal performance, cost, and cell availability. Both formats should be evaluated against the actual equipment requirements.
21700 and 18650 batteries are both widely used cylindrical lithium-ion cell formats, but they serve different design priorities.
A 21700 battery is larger and often provides higher capacity and greater absolute current capability. An 18650 battery is more compact and compatible with a wider range of existing devices and battery pack structures.
The better choice depends on:
Physical dimensions
Required capacity
Continuous and peak current
Runtime
Device compatibility
BMS requirements
Thermal conditions
Battery pack layout
Production and cost considerations
For a new OEM project, the selected cell format should be validated through prototype testing under the equipment’s actual electrical and mechanical conditions.
