Series Connection
Series-connected cells increase the pack voltage. A 3S pack uses three series groups, so the nominal voltage is approximately three times the nominal voltage of one cell.
Battery Design Tool

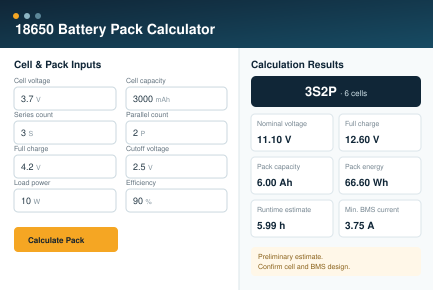

18650 Battery Pack Calculator
Estimate the series-parallel configuration, voltage, capacity, energy, current capability, BMS current requirement, and runtime of an 18650 lithium-ion battery pack.
Enter the electrical parameters of one 18650 cell and the required pack configuration. The calculator provides an initial estimate for battery pack design. Final specifications should be confirmed with the selected cell and BMS datasheets.
Calculate Your 18650 Battery Pack
Use the inputs below to compare different series and parallel configurations.
Pack Calculation Results
Values update when you submit the form or change the inputs.
3S2P — 6 cells total
Nominal pack voltage 11.10 V
Full-charge voltage 12.60 V
Cutoff voltage 7.50 V
Pack capacity 6.00 Ah
Pack energy 66.60 Wh
Theoretical current 20.00 A
Minimum BMS current 3.75 A
Estimated runtime 5.99 h
Enter your requirements and calculate the pack configuration.
The theoretical current is based on cell current × parallel count. Actual performance can be lower because of temperature, cell aging, interconnect resistance, BMS limits, and enclosure conditions.
How to Use the 18650 Battery Pack Calculator
- Enter the nominal voltage, capacity, and continuous discharge current of one cell.
- Enter the full-charge and cutoff voltage listed for the selected cell.
- Choose the number of cells or parallel groups connected in series and parallel.
- Add the device power and current if you need runtime and BMS current estimates.
- Review the results, then confirm the configuration with the cell and BMS datasheets.
The calculator is intended for preliminary battery pack planning. It does not replace electrical, thermal, mechanical, or compliance testing.
How Series and Parallel Connections Affect a Battery Pack
Parallel Connection
Parallel-connected cells increase capacity and current capability while keeping the nominal voltage approximately the same.
3S2P Example
A 3S2P pack contains three series groups and two parallel cells in each group, for a total of six 18650 cells.
The relationship between series count and 18650 pack voltage is covered in the 18650 battery voltage guide. ZERNE also provides different 18650 battery pack configurations for voltage, capacity, and application requirements.
Calculation Formulas
Total cells = Series count × Parallel count Nominal voltage = Cell nominal voltage × Series count Full-charge voltage = Cell full-charge voltage × Series count Cutoff voltage = Cell cutoff voltage × Series count Pack capacity = Cell capacity × Parallel count Pack energy = Nominal voltage × Pack capacity Estimated runtime = Pack energy × System efficiency ÷ Device load power
The runtime result is an estimate based on average device power. Actual operating time can change with load variation, converter efficiency, voltage drop, temperature, aging, and BMS cutoff behavior.
How to Match the BMS to the Calculated Pack
The calculator estimates a minimum BMS current based on the entered continuous device current and the selected margin. The final BMS must also match the battery pack’s series count and charging requirements.
| BMS Parameter | What to Check |
|---|---|
| Series rating | A 3S2P pack requires a BMS designed for three series groups. |
| Continuous current | The rating should cover the device’s continuous current with an appropriate engineering margin. |
| Peak current | Startup and short-duration current pulses may require a higher rating than the average load. |
| Charging current | The BMS, charger, connector, wiring, and cells must support the selected charging current. |
| Protection thresholds | Overcharge, over-discharge, overcurrent, temperature, and recovery settings must suit the selected cell. |
| Cell balancing | Confirm whether the BMS includes balancing and whether its balancing behavior suits the pack. |
For a broader understanding of monitoring, protection, balancing, and charge control, see the battery management system structure guide.
Important Design Limitations
- The calculator uses rated cell values and does not model every change in voltage under load.
- Theoretical current capability does not guarantee the same current at the pack terminals.
- Actual performance is affected by cell matching, internal resistance, welds, cables, connectors, temperature, and enclosure design.
- The selected cutoff voltage must come from the cell manufacturer’s specifications.
- Different 18650 models should not be mixed in the same commercial battery pack.
- The BMS estimate does not select a specific BMS model or certify a battery design.
- Prototype packs should be tested under the real device load before production.
Frequently Asked Questions
How many 18650 cells do I need for a battery pack?
The total number of cells equals the series count multiplied by the parallel count. A 3S2P pack therefore requires six cells.
What does 3S2P mean?
3S2P means three series groups with two cells connected in parallel in each group. The pack contains six cells in total.
Does a parallel connection increase battery voltage?
No. Parallel connections mainly increase capacity and current capability. Series connections increase the pack voltage.
What BMS do I need for a 3S2P battery pack?
A 3S2P pack normally requires a BMS designed for three series groups. Its current, charging, temperature, balancing, and protection functions must also suit the application.
How accurate is the runtime estimate?
The runtime estimate is a planning reference based on nominal energy, device load power, and entered system efficiency. Actual runtime can be lower because of load variation, voltage drop, temperature, aging, and BMS cutoff behavior.
Can I use different 18650 cells in the same pack?
It is generally not recommended. Cells should match in model, chemistry, capacity, age, and electrical condition to reduce imbalance and uneven current sharing.
Does the calculator choose the correct BMS automatically?
No. It estimates a minimum current reference and identifies the series count. The final BMS must be selected according to the cell datasheet, load profile, charging method, temperature, balancing, protection, and communication requirements.
