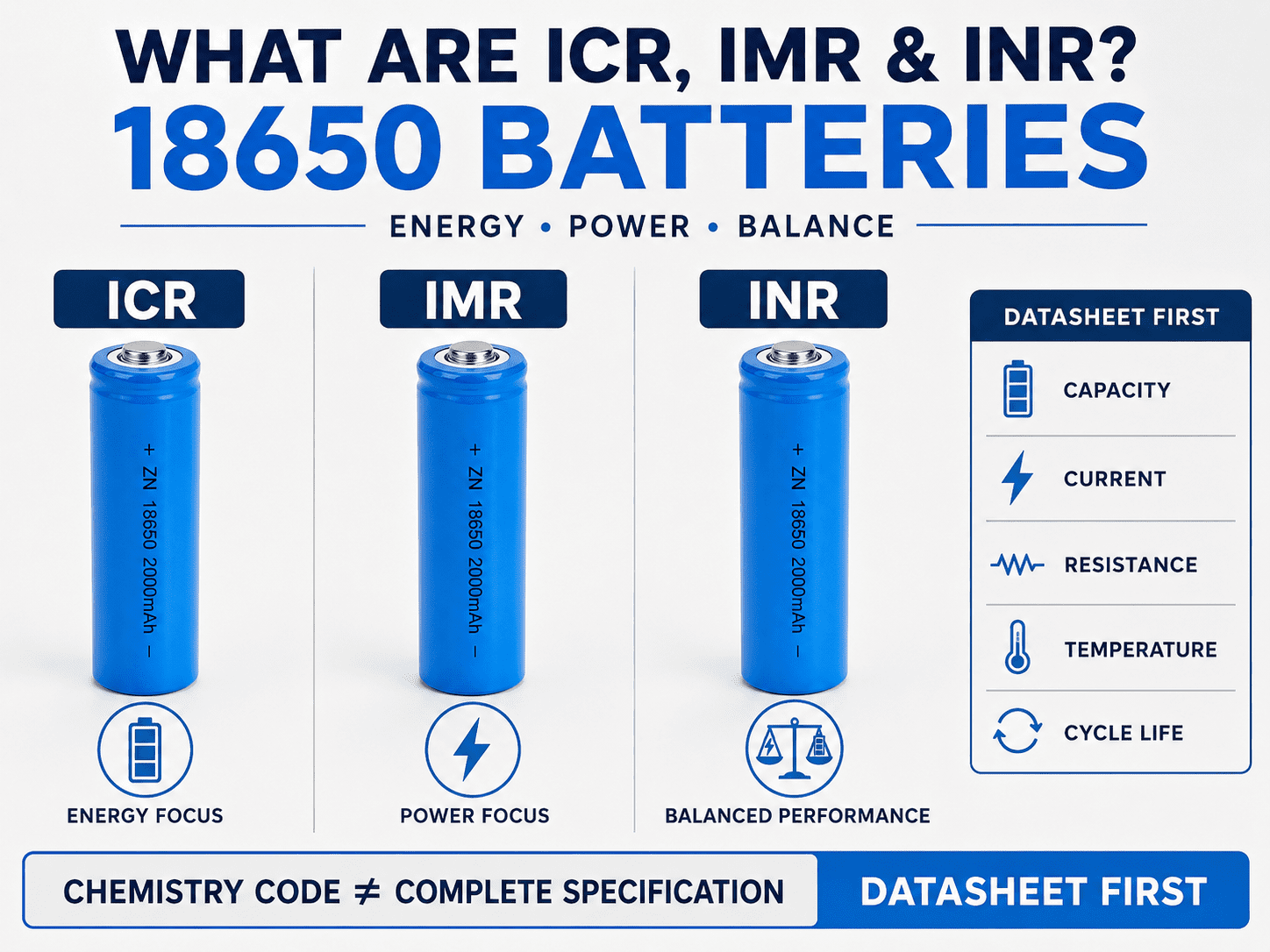

ICR, IMR, and INR are common designations used on cylindrical lithium-ion batteries, including 18650 cells. These letter codes can provide an initial indication of the cell’s electrode chemistry or performance direction, but they do not define every specification.
In practice, the same designation may cover cells with different:
Capacity
Continuous discharge current
Peak current
Internal resistance
Charging limits
Thermal behavior
Cycle life
Application requirements
For this reason, ICR, IMR, and INR should be treated as technical classifications rather than complete product specifications. The individual manufacturer’s datasheet remains the final reference.
The main selection question is not simply whether a cell is ICR, IMR, or INR. It is whether the cell can meet the equipment’s required energy, power, voltage, temperature, runtime, and safety conditions.
Designation | Common Industry Association | Typical Design Direction | Important Caution |
|---|---|---|---|
ICR | Often associated with cobalt-rich lithium-ion chemistry | Higher energy and capacity | May not be suitable for high-current loads |
IMR | Often associated with manganese-rich chemistry | Power output and lower resistance | The exact chemistry and current rating vary |
INR | Often associated with nickel-manganese-cobalt chemistry | Balance between energy and power | The same INR designation can cover different performance classes |
Manufacturer-specific code | May combine chemistry and product series information | Application-specific performance | Must be checked against the complete datasheet |
These associations are not universal rules. Manufacturers may use different naming conventions, blended chemistries, or product codes. A cell’s actual capacity, current rating, resistance, charging limits, and temperature range are more important than the letters alone.
ICR is commonly associated with lithium-ion cells that use a cobalt-rich cathode design.
These cells have often been selected for applications that prioritize:
Energy storage
Capacity
Compact energy supply
Moderate discharge current
Longer runtime under controlled loads
An ICR-labeled 18650 battery may be suitable for equipment that does not require a high continuous discharge current. Portable electronics, backup devices, and lower-power equipment may benefit from an energy-focused cell.
However, not every ICR cell has the same capacity or current performance. The designation does not confirm:
Maximum continuous current
Pulse-current capability
Thermal stability
Cycle life
Protection requirements
An ICR cell should not be selected for a high-power device without checking its complete electrical specifications.
IMR is commonly associated with lithium-ion cells using a manganese-rich cathode design.
These cells are often linked with:
Lower internal resistance
Higher power output
Better current performance
More stable behavior under demanding loads
An IMR 18650 battery may be considered for applications that need more current rather than maximum capacity.
Potential applications may include:
Power tools
Portable equipment with motors
High-output lighting
Robotics
Devices with repeated current pulses
The term IMR is not a guarantee that the cell is suitable for high-drain operation. A specific IMR model may still have a moderate current rating, and its thermal performance depends on the cell construction, separator, electrode design, and operating conditions.
INR is commonly associated with nickel-manganese-cobalt, or NMC-type, lithium-ion chemistry.
INR cells are often developed to balance:
Energy density
Capacity
Discharge current
Internal resistance
Cycle life
Thermal behavior
This balance makes many INR cells suitable for a wide range of modern battery applications.
However, INR is one of the clearest examples of why the letters alone are not enough. Different INR models can be designed for:
High energy
Medium power
High power
High discharge current
Fast charging
Longer cycle life
Two INR 18650 batteries can therefore have very different capacities and current ratings. One may be optimized for runtime, while another may be intended for high-power output.
The naming system can be useful for understanding the general direction of a cell, but it cannot replace the datasheet.
The following parameters should be checked for every candidate cell:
Nominal capacity
Minimum capacity
Nominal voltage
Maximum charging voltage
Standard charging current
Maximum charging current
Continuous discharge current
Pulse discharge current
Internal resistance
Recommended cutoff voltage
Operating temperature
Cycle-life conditions
Cell dimensions
Weight
Protection requirements
The full product code may also contain information about:
Cell generation
Capacity series
Power class
Terminal structure
Manufacturer production line
Special application
A cell should therefore be selected by its complete model number and datasheet rather than the first three letters printed on its wrapper.
The main practical difference between energy-focused and power-focused cells is the design priority.
Energy cells are designed to store more energy within the available size and weight.
They are often selected for:
Longer runtime
Lower or moderate continuous current
Portable electronics
Monitoring equipment
Backup devices
Wearable and IoT products
An energy-focused cell may have a higher mAh rating but a lower maximum discharge current than a power-focused cell of the same size.
Power cells are designed to deliver higher current with lower voltage sag and better heat control under load.
They may be selected for:
Motorized devices
Power tools
Robotics
High-output equipment
Industrial handheld products
Equipment with frequent current pulses
A power cell may have a lower capacity than an energy cell but perform better when the device requires high current.
Some cells are designed to provide a compromise between capacity and current capability.
A balanced cell may be suitable when the device requires:
Moderate runtime
Medium current
Reasonable heat generation
Stable cycle performance
A practical cost-to-performance ratio
The best selection depends on the actual load profile rather than the cell category.
The discharge rate describes how quickly the cell is required to deliver its stored energy.
C-rate can be calculated as:
C-rate = Discharge current (A) ÷ Capacity (Ah)
For example, a 3000mAh cell has a capacity of 3Ah.
If the device draws 9A:
9A ÷ 3Ah = 3C
A 3500mAh cell supplying the same 9A would operate at:
9A ÷ 3.5Ah ≈ 2.57C
C-rate is useful for comparing load intensity, but it does not replace the manufacturer’s continuous-current specification.
The selected cell must also be evaluated for:
Voltage sag
Heat generation
Pulse duration
Pulse frequency
Internal resistance
Thermal environment
Parallel cell count
When current capability is the main selection factor, high-drain 18650 battery selection should be based on continuous current, pulse capability, voltage sag, and thermal limits—not on the ICR, IMR, or INR label alone.
Thermal stability depends on more than the cathode designation.
Important factors include:
Cell chemistry
Electrode structure
Separator design
Electrolyte formulation
Internal resistance
Current level
Charging conditions
Temperature control
Manufacturing quality
A cell with lower internal resistance may generate less heat at the same current, but it still needs to be operated within its rated limits.
Heat generation can be estimated using:
Heat loss = Current² × Internal resistance
If current increases, resistive heat rises quickly. This is why a cell that performs well at moderate current may become unsuitable when used at a much higher load.
The complete battery pack should be evaluated for:
Cell spacing
Enclosure ventilation
BMS temperature monitoring
Connector resistance
Wire size
Heat transfer to nearby components
Charging temperature
Repeated high-current operation
The cell category may influence the initial selection, but thermal testing of the finished pack is still required. In a multi-cell pack, current protection, temperature monitoring, and balancing also depend on the 18650 battery pack BMS design.
Low-power devices generally prioritize:
Capacity
Runtime
Low self-discharge
Compact size
Stable operation
An energy-focused cell may be suitable if its discharge rating is higher than the device’s maximum current demand.
Medium-power products may need a balance between:
Capacity
Current capability
Weight
Temperature
Cycle life
A balanced INR or another medium-power cell may be considered, but the specific model must be evaluated.
High-power devices require more attention to:
Continuous current
Peak current
Voltage sag
Internal resistance
Heat generation
BMS current rating
Connector and wiring capacity
A high-drain cell may be preferable even if its mAh rating is lower than an energy-focused alternative.
For an OEM device, the selection process should begin with the equipment requirements.
Confirm:
Minimum and maximum input voltage
Continuous operating current
Startup current
Peak current
Required runtime
Available installation space
Charging method
Operating temperature
Desired cycle life
Target production volume
The cell should then be selected according to the measured load profile and the required operating conditions.
For an OEM project, OEM 18650 battery selection should compare energy-focused and power-focused candidates against the actual load profile, runtime, temperature, charging, protection, and production requirements before the final model is approved.
During the sample stage, compare candidate cells under the same conditions:
Test Item | Why It Matters |
Capacity | Determines available runtime |
Continuous current | Confirms normal operating capability |
Peak current | Confirms startup and pulse performance |
Voltage sag | Indicates performance under load |
Temperature rise | Shows thermal behavior |
Charging response | Confirms charging compatibility |
Cycle performance | Indicates expected service stability |
Physical dimensions | Confirms enclosure fit |
The final decision should be based on the complete sample result rather than the chemistry code alone. A controlled 18650 battery capacity and health test can then compare capacity, resistance, self-discharge, and temperature under the same conditions.
Treating ICR, IMR, or INR as a complete specification.
Assuming every INR cell is a high-drain cell.
Assuming every IMR cell is safer under all conditions.
Choosing an ICR cell for high current without checking its rating.
Comparing capacity without checking discharge current.
Using C-rate as a replacement for the datasheet.
Ignoring internal resistance and voltage sag.
Failing to check charging limits.
Comparing cells under different temperatures or load conditions.
Selecting the cell before understanding the device power profile.
Ignoring the BMS, wiring, connectors, and enclosure.
Assuming a chemistry label guarantees a specific cycle life.
They are common naming designations associated with different lithium-ion cell chemistry or performance directions. ICR is often linked with energy-focused cells, IMR with power-oriented cells, and INR with balanced or NMC-type cells. The exact meaning varies by manufacturer.
Not in every application. INR may provide a useful balance between capacity and current, while an ICR cell may be more suitable for a lower-power product that prioritizes energy storage.
Some IMR cells are designed for higher current, but the IMR label alone does not guarantee a specific discharge rate. The complete cell datasheet must be checked.
Safety depends on the specific cell design, operating conditions, protection system, manufacturing quality, and thermal management. A chemistry designation cannot guarantee safety by itself.
Capacity depends on the individual model rather than the ICR, IMR, or INR label. Energy-focused cells often provide higher capacity than power-focused cells, but the datasheet remains the final reference.
A power-focused cell with a suitable continuous and peak-current rating is generally more appropriate. The selection should also consider voltage sag, internal resistance, temperature, BMS capability, and wiring.
They should not be mixed casually. Different cells may have different capacity, resistance, charging, discharge, and aging behavior. Cells in the same pack should be matched and validated. For a multi-cell pack, cell matching in an 18650 battery pack should compare capacity, internal resistance, voltage, age, and production batch before cells are combined.
No. The code does not replace the voltage specification. The nominal voltage, maximum charging voltage, and cutoff voltage must be confirmed from the specific model’s datasheet.
Compare the device’s runtime requirement with its continuous and peak current. Select an energy-focused cell when runtime dominates, a power-focused cell when current dominates, and a balanced cell when both requirements are moderate.
The ICR, IMR, or INR designation can help narrow the initial selection, but a complete OEM battery design requires a broader review.
ZERNE’s 18650 lithium battery solutions can be evaluated according to:
Capacity
Voltage
Continuous current
Peak current
Cell dimensions
Operating temperature
Cycle-life requirements
BMS and protection
Connector configuration
Battery pack structure
The selected cell should be validated in a sample pack before volume production. This helps confirm actual capacity, current performance, temperature behavior, charging, and mechanical compatibility. Once the model is confirmed, it can be developed into custom 18650 and LiPo battery solutions around the required capacity, current, BMS, connector, and enclosure.
ICR, IMR, and INR are useful battery designations, but they should not be treated as fixed guarantees of chemistry or performance.
In general:
ICR is often associated with energy-focused cells.
IMR is often associated with power-oriented cells.
INR is often associated with a balance between energy and power.
These are general industry associations, not universal rules. Different manufacturers may use different naming conventions, and the same designation may cover cells with different capacity, current, resistance, and thermal characteristics.
The correct selection should be based on:
Device power demand
Required runtime
Continuous and peak current
Discharge rate
Thermal conditions
Charging requirements
BMS protection
Physical dimensions
Sample-test results
The model-specific datasheet should always take priority over the letters printed on the cell.
