Choosing between an 18650 battery and a LiPo battery for a custom battery pack depends on the equipment’s space, power demand, runtime, mechanical structure, protection requirements, and production plan.
An 18650 battery is a cylindrical lithium-ion cell with a standardized format. It is relatively strong mechanically, widely available, and well suited to modular battery packs.
A LiPo battery usually refers to a rechargeable lithium-polymer pouch cell. It can be produced in customized length, width, and thickness, making it useful for thin, lightweight, or irregularly shaped devices.
Neither battery type is automatically better for every OEM project.
Choose 18650 when the product benefits from standardized cylindrical cells, mechanical strength, established pack structures, or easy replacement. Choose LiPo when the equipment requires a thin or custom-shaped battery, better use of irregular internal space, lower weight, or a high-power pouch-cell design.
The final decision should be based on the complete device specification rather than capacity or discharge rate alone.

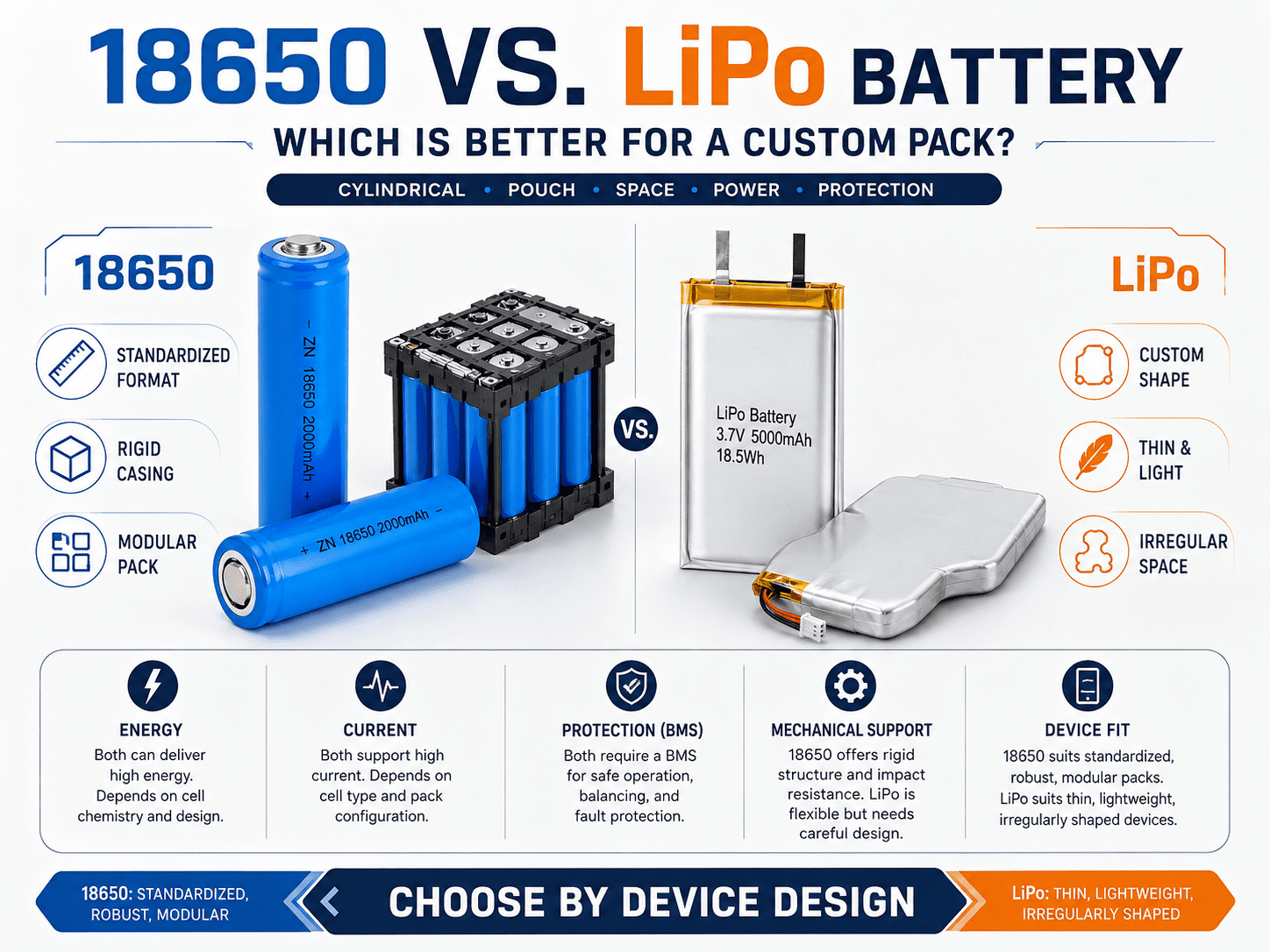

Feature | 18650 Battery | LiPo Battery |
|---|---|---|
Cell structure | Cylindrical metal can | Flexible pouch |
Shape flexibility | Standardized cylindrical format | Custom length, width, and thickness |
Mechanical strength | Strong steel casing | Requires external protection and support |
Space utilization | Gaps may exist between cylindrical cells | Can use irregular or thin spaces more efficiently |
Capacity options | Mature and widely standardized | Broadly customizable |
Discharge performance | Depends on the cell model; high-drain options available | Many high-rate pouch options available |
Protection | Requires BMS or protection circuit in the pack | Requires protection and careful mechanical design |
Pack assembly | Modular and relatively standardized | More dependent on custom structure |
Weight | Usually higher due to metal casing and holders | Often lower for the same package shape |
Best fit | Modular, robust, cylindrical pack designs | Thin, lightweight, irregularly shaped devices |
These are general design tendencies. Actual performance depends on the selected cell model, pack configuration, operating conditions, and production method.
An 18650 cell has a rigid cylindrical body, usually enclosed in a steel casing.
This structure provides:
Standardized dimensions
Good resistance to external compression
Consistent mechanical handling
Easy integration into holders
Repeatable cell arrangement
Established spot-welding processes
The cylindrical structure also limits the ways the cells can fill an irregular enclosure. Gaps may remain between cells, and the final pack may require holders, spacers, or additional supports.
ZERNE’s 18650 lithium battery solutions are suited to products that benefit from this standardized cell format and modular pack construction.
A LiPo pouch cell uses a flexible laminated pouch rather than a rigid metal cylinder.
Its form factor can be customized by adjusting:
Length
Width
Thickness
Tab position
Lead direction
Connection method
This makes LiPo cells useful when the battery must fit a thin enclosure, curved housing, or unused space inside a compact device.
However, the pouch itself does not provide the same mechanical protection as a steel cylindrical cell. The battery pack may need:
A protective frame
Compression support
Insulation
Cushioning
A rigid enclosure
Careful control of swelling and movement
There is no universal answer.
The energy density of an individual cell depends on its chemistry, electrode design, capacity, voltage, and manufacturing process. At the pack level, LiPo can often use internal space more efficiently because the pouch can be designed to fit a specific enclosure.
An 18650 pack may lose some space because of:
Cylindrical gaps
Cell holders
Spacing requirements
Nickel strips
BMS placement
Protective structures
A LiPo pack can be shaped to occupy a flatter or more irregular area. This may provide better package-level energy utilization even when the cell-level energy density is not dramatically different.
18650 can be an efficient choice when:
The device already has a cylindrical battery compartment
Standard cell holders are available
The pack uses a modular arrangement
The enclosure provides enough space for the cell diameter
Mechanical protection is important
The product benefits from replaceable or serviceable cells
The best format depends on the complete pack volume rather than the cell specification alone.
Both 18650 and LiPo batteries are available in different capacities. The typical mAh capacity ranges of 18650 batteries are useful for initial comparison, but a custom pack should ultimately be compared in watt-hours rather than mAh alone.
The basic energy formula is:
Energy (Wh) = Nominal voltage (V) × Capacity (Ah)
For a battery pack, runtime also depends on:
Device power
System efficiency
Usable capacity
Cutoff voltage
Temperature
Battery aging
Load variation
An 18650 pack may achieve higher total capacity by adding parallel cells. A LiPo pack may reach the required capacity in a custom pouch shape without using multiple cylindrical cells. At pack level, usable energy, system efficiency, cutoff voltage, and device load determine whether the nominal capacity translates into the required runtime; these are the key inputs in 18650 battery pack capacity and runtime calculations.
An 18650 battery pack can be configured with different series and parallel arrangements to meet the equipment’s voltage and capacity requirements.
The design may offer:
Standardized cell counts
Modular capacity increases
Flexible BMS placement
Simple cell replacement in some applications
Repeatable production structures
A LiPo pouch can be customized to provide a target capacity within a defined thickness and footprint.
This can be useful when:
The device has no room for cylindrical cells
A thin battery is required
The battery must occupy an irregular area
Low weight is important
The enclosure has a dedicated pouch compartment
Capacity should still be verified through sample testing because the available capacity depends on discharge current, temperature, cutoff voltage, and test conditions.
LiPo batteries are often associated with high discharge rates because many pouch cells are designed for power-focused applications. However, a LiPo battery does not automatically provide more current than every 18650 cell.
High-drain 18650 cells are also available. Their current performance depends on:
Cell construction
Internal resistance
Electrode design
Rated continuous current
Pulse-current rating
Temperature conditions
The actual datasheet should be used when comparing a LiPo pouch cell with an 18650 cell. For the 18650 side of the comparison, high-drain 18650 battery selection should be based on continuous current, pulse capability, voltage sag, and thermal limits—not the capacity label alone.
High-capacity cells and high-current cells may be optimized differently.
A high-capacity cell may provide longer runtime but moderate current. A high-drain cell may provide stronger power output with lower capacity.
For an OEM project, compare:
Continuous current
Peak current
Pulse duration
Internal resistance
Voltage sag
Heat generation
Required runtime
A battery pack with more parallel 18650 cells may meet a high-current requirement, while a high-rate LiPo pouch may achieve the same current with a different mechanical layout.
LiPo may be preferred when the product needs:
High current in a thin package
Low weight
A custom battery shape
Short-duration power bursts
A dedicated pouch-cell enclosure
18650 may be preferred when the product needs:
A robust cylindrical structure
Modular parallel capacity
Standardized cell supply
Established holders and pack assembly
A rigid battery pack
The current rating of the selected model matters more than the battery category name.
An 18650 pack may require:
BMS or PCM
Overcharge protection
Over-discharge protection
Overcurrent protection
Short-circuit protection
Temperature monitoring
Cell balancing for series packs
The metal casing improves mechanical durability, but it does not replace electrical protection.
LiPo pouch cells also require electrical protection. They may need additional mechanical protection because the pouch is more vulnerable to:
Puncture
Sharp edges
Excessive compression
Bending
Localized pressure
Uncontrolled swelling
The protection design should include both the electronic circuit and the mechanical enclosure.
The BMS must match:
Cell chemistry
Series count
Charging voltage
Continuous current
Peak current
Temperature range
Communication requirements
The BMS should be selected at the same time as the cell and enclosure. Changing from 18650 to LiPo may require changes to the BMS location, wiring, temperature sensing, and mechanical protection. In a multi-cell 18650 pack, the BMS also has to match the series configuration, current demand, charging limits, and balancing requirements—core parts of 18650 battery pack BMS design.
18650 is often easier to install when the device has:
A cylindrical battery compartment
A standardized holder
Enough space for cell diameter
A rectangular area suitable for multiple cells
A removable-cell design
A rigid enclosure
The pack layout can be planned using a defined number of cells and a repeatable arrangement. For precise fit checks, the dimensions of an 18650 battery should be considered together with holders, insulation, terminals, and enclosure tolerances.
LiPo is usually more flexible when the device has:
A thin enclosure
An irregular internal shape
A curved housing
Limited height
A large flat surface
Space that cannot accommodate cylindrical cells
A pouch cell can be designed around the product enclosure instead of forcing the enclosure to accommodate cylindrical cells.
LiPo often provides more freedom for thin or irregular devices, but 18650 can still be the better compact solution when the device has enough cylindrical space or requires a modular battery pack.
The comparison should consider the complete pack, including:
BMS
Holder
Insulation
Wiring
Connectors
Housing
Thermal structures
The rigid cylindrical casing can provide:
Better resistance to compression
Stable cell shape
Easier handling during assembly
Improved protection against some external impacts
Consistent mechanical support
This may be useful for industrial equipment, handheld products, and devices exposed to vibration or repeated handling.
A LiPo pouch requires carefully designed support.
The pack may need:
A rigid battery compartment
Protective layers
Cushioning
Controlled compression
Edge protection
Space for expansion
Avoidance of sharp internal components
LiPo can be mechanically reliable when the enclosure is designed correctly. The flexible pouch should not be treated as a drop-in replacement for a rigid cylindrical cell.
An 18650 pack is based on a standardized cell format, which can simplify:
Cell sourcing
Holder selection
Pack arrangement
Welding processes
BMS integration
Replacement planning
Quality control
The main design challenge is fitting the cylindrical cells and associated components into the available space.
LiPo provides more freedom in:
Cell length
Width
Thickness
Tab position
Wire direction
Pack shape
However, this flexibility increases the importance of:
Pouch protection
Mechanical support
Compression control
Tab protection
Swelling management
Custom tooling
Sample validation
LiPo can be easier to fit but more demanding to validate mechanically.
At the concept stage, compare both formats using:
Available product space
Target energy
Maximum current
Weight target
Expected battery life
Enclosure concept
If the product is thin or irregularly shaped, evaluate LiPo early. If the product has a cylindrical compartment or modular structure, begin with 18650.
Build samples using the actual cell format, BMS, holder, wiring, and enclosure.
Check:
Mechanical fit
Runtime
Current performance
Charging
Temperature
Protection
Device operation
A theoretical comparison is not enough because the two formats may behave differently once integrated into the product. Before the format is finalized, the sample should be checked for capacity, internal resistance, runtime, temperature, and protection behavior; 18650 battery capacity and health testing helps establish these cell-level checks.
At the pilot stage, evaluate:
Assembly time
Material consistency
Cell availability
Production yield
Quality inspection
Certification requirements
Pack-to-pack variation
Long-term supply
The better solution is the one that performs consistently and can be produced reliably at the required volume.
18650 is often a strong choice when the product requires:
Standard cylindrical dimensions
Rigid mechanical protection
Modular battery pack design
Established cell availability
High-capacity or high-drain cell options
Repeatable assembly
Easy integration with holders
A proven production process
Applications may include:
Handheld equipment
Portable instruments
Medical devices
Industrial devices
Robotics
GPS and IoT products
Equipment with replaceable cylindrical cells
LiPo may be more suitable when the product requires:
A thin battery
A custom length or width
Better use of irregular internal space
Low weight
A high-rate pouch-cell design
A battery integrated into a compact enclosure
A custom tab or connector position
Applications may include:
Wearable products
Smart devices
Thin portable electronics
Compact medical equipment
Drones and robotics
Products with irregular internal spaces
The final decision should still be based on the selected cell model and actual test results.
Assuming LiPo always has higher energy density.
Assuming 18650 always has better mechanical durability.
Comparing mAh without considering voltage and pack energy.
Treating a high C-rate as proof of better overall performance.
Ignoring the BMS and charger.
Forgetting the mechanical protection required by a LiPo pouch.
Ignoring gaps and holders in an 18650 pack.
Selecting the battery before confirming the enclosure.
Comparing individual cells instead of complete battery packs.
Skipping sample testing.
Choosing a cell that cannot be supplied consistently at production volume.
Deciding based only on the lowest initial cost.
Neither is universally better. 18650 is often suitable for rigid, modular, and standardized packs, while LiPo is useful for thin, lightweight, or irregularly shaped devices.
LiPo is often better when the device has a thin or irregular internal space. 18650 may be better when the device has enough room for cylindrical cells and requires a rigid, modular pack.
Both can be available in high-rate versions. The actual performance depends on the cell model, internal resistance, continuous current rating, pulse rating, and thermal conditions.
Not in every case. LiPo can often use the product enclosure more efficiently because it can be customized in shape. Cell-level energy density depends on the specific chemistry and design.
Safety depends on the cell, protection circuit, BMS, charger, enclosure, manufacturing quality, and operating conditions. The rigid 18650 casing provides mechanical advantages, while LiPo requires careful pouch protection.
LiPo is more flexible in shape, thickness, tab position, and dimensions. 18650 is easier to customize through standardized cell arrangements, holders, BMS integration, and modular pack structures.
They should not be combined casually. Their physical structure, charging behavior, internal resistance, protection requirements, and mechanical support needs are different.
Compare both options against the device’s space, energy, current, runtime, weight, temperature, protection, certification, sample-testing, and production requirements.
Yes. The battery format can affect the enclosure, BMS location, holder, wiring, thermal structure, and charging interface. Both options should be reviewed during the concept stage.
A custom battery pack should be designed around the product rather than adapted from a generic battery format.
ZERNE can help evaluate:
18650 cylindrical cells
LiPo pouch cells
Capacity and voltage requirements
Continuous and peak current
BMS and protection
Battery dimensions
Connector and wire configuration
Mechanical enclosure
Sample testing
Pilot production
Volume manufacturing
The requirements can be developed into a custom 18650 battery pack when the product benefits from standardized cylindrical cells and modular construction.
For products that need custom dimensions, thin form factors, specialized connectors, or integrated pouch-cell solutions, custom 18650 and LiPo battery solutions can be evaluated together during the development process.
For OEM projects, the cell format should be chosen alongside the equipment’s electrical and mechanical requirements. A practical OEM 18650 battery selection starts with voltage, current, dimensions, charging, protection, and sample validation before the pack format is finalized.
The choice between 18650 and LiPo depends on the product design.
Choose 18650 when the project needs:
A standardized cylindrical format
Strong mechanical protection
Modular pack construction
Proven cell availability
Repeatable production
Easy integration with holders and pack structures
Choose LiPo when the project needs:
A thin or irregularly shaped battery
Custom length, width, or thickness
Better use of unusual internal space
Lower package weight
A high-rate pouch-cell design
For compact devices, LiPo often provides greater shape flexibility, while 18650 can be more suitable for compact products with dedicated cylindrical compartments. For high-rate applications, both formats should be compared by their actual current and thermal specifications.
The best choice should be confirmed through engineering samples. Test the battery in the actual equipment for electrical performance, runtime, temperature, charging, mechanical fit, protection, and production feasibility before selecting the final format for mass production.
