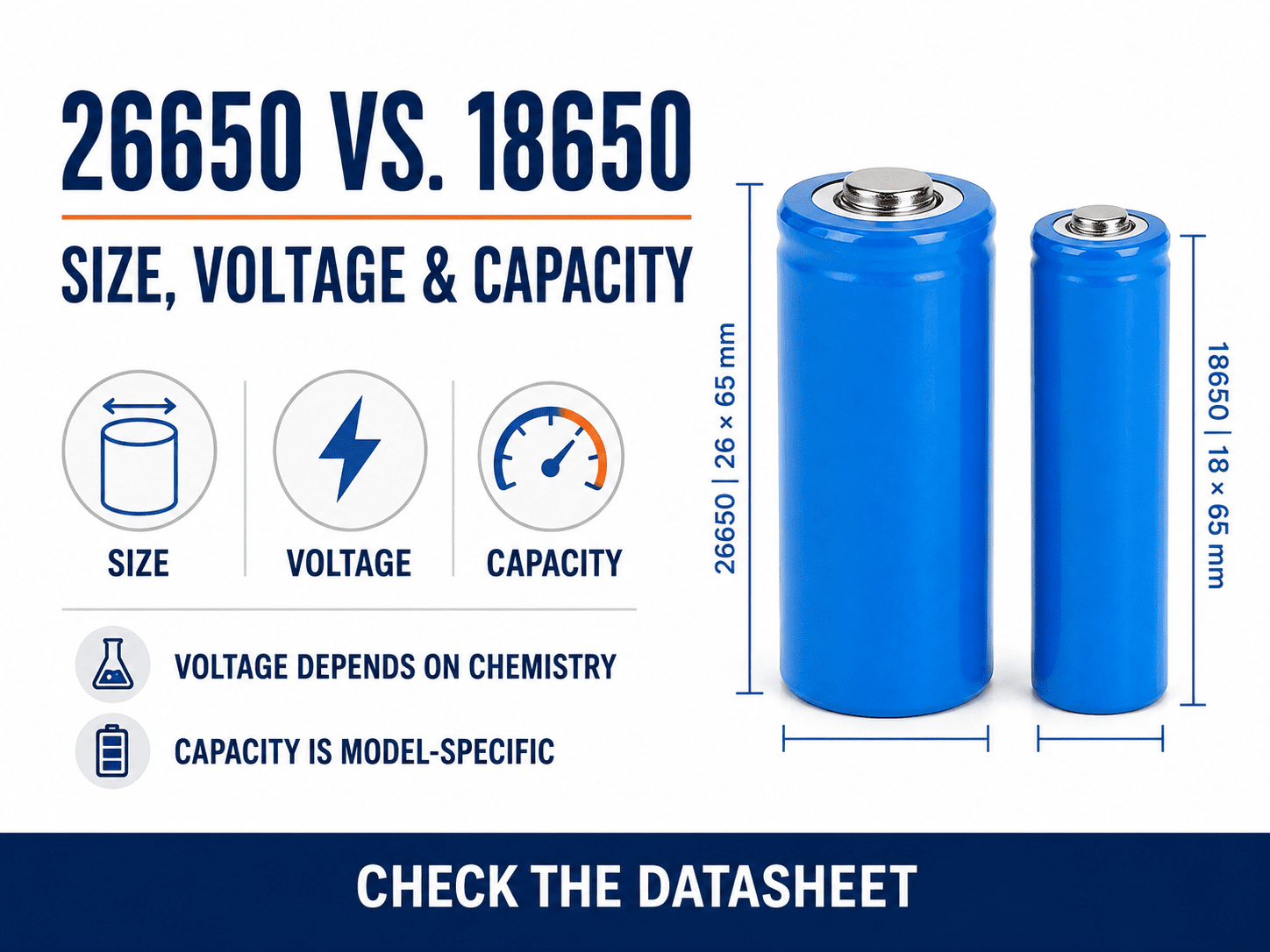

The main difference between 26650 and 18650 batteries is their physical size. A nominal 26650 cell is approximately 26 mm in diameter and 65 mm long, while an 18650 cell is approximately 18 mm in diameter and 65 mm long.
Because the two formats have a similar nominal length but very different diameters, a 26650 battery usually offers more internal volume, higher capacity, and greater current-handling potential. However, it is also heavier and requires more installation space.
The larger format is not automatically better. Both 26650 and 18650 cells can use different lithium-ion chemistries, and their actual voltage, capacity, discharge current, and cycle life depend on the specific cell model.
Feature | 18650 Battery | 26650 Battery |
|---|---|---|
Nominal diameter | About 18 mm | About 26 mm |
Nominal length | About 65 mm | About 65 mm |
Relative size | Smaller and more compact | Wider and more voluminous |
Typical capacity tendency | Lower absolute capacity per cell | Often higher absolute capacity per cell |
Nominal voltage | Depends on chemistry, often 3.6V or 3.7V for standard Li-ion | Depends on chemistry, often 3.2V–3.7V |
Full-charge voltage | Chemistry-dependent | Chemistry-dependent |
Discharge capability | Can range from energy-focused to high-power designs | Often offers strong current capability, but model-dependent |
Weight | Usually lighter | Usually heavier |
Device compatibility | Fits more compact holders and enclosures | Requires a larger holder and more internal clearance |
Main advantage | Compact size, mature supply, flexible pack layout | More capacity or power potential per cell |
Main limitation | Less internal volume per cell | Larger diameter and higher pack volume |
The numbers describe the approximate cylindrical format.
18650 generally means about 18 mm in diameter and 65 mm in length.
26650 generally means about 26 mm in diameter and 65 mm in length.
The final digit usually identifies the cylindrical shape rather than an exact dimension. Actual cell measurements can be slightly different because of the steel casing, wrapper, terminal design, insulation, manufacturing tolerance, or protection circuit.
For example, a bare 18650 cell may be close to 18 mm in diameter, while a protected or button-top version may be longer. A 26650 cell may also exceed its nominal dimensions depending on its terminal and external construction.
The format name does not identify the cell chemistry. It also does not tell you the capacity, discharge rating, charging voltage, or safety design.
The most important physical difference is diameter.
A nominal 18650 cell is approximately 18 mm wide. A nominal 26650 cell is approximately 26 mm wide. This creates an 8 mm difference in diameter, which can be significant when the battery is installed inside a compact enclosure.
The larger diameter affects:
Battery holder compatibility
Cell-to-cell spacing
Pack width
Enclosure height and shape
Connector position
Cooling path
Mechanical support
Assembly tooling
A 26650 battery will not normally fit into an 18650 holder. The difference is too large for the cells to be treated as interchangeable.
Both formats are nominally around 65 mm long, but the final installed length may differ.
The actual length depends on:
Flat-top or button-top terminal
Protected or unprotected construction
External wrapper
Insulating ring
Terminal cap
Welding or tab structure
Manufacturer tolerance
A protected 18650 may be longer than a bare cell. A protected 26650 may also require additional clearance at both ends.
The length of the battery holder should therefore be checked together with the diameter. A design that appears to have enough space for a 65 mm cell may still fail because of the terminal structure or compression force from the holder.
The actual measurement process should consider diameter, body length, terminal height, insulation, and installation clearance. These details are especially important when using the dimensions and device-fit requirements of 18650 batteries to assess whether a holder or enclosure can accept the cell.
If both cells have a similar nominal length, the larger diameter gives the 26650 substantially more internal volume.
The approximate cylindrical volume is proportional to the square of the radius. This means that the additional width of a 26650 is more significant than it may appear from the numbers alone.
The larger volume can provide space for:
More active electrode material
Thicker or longer electrode structures
Larger current pathways
Lower-resistance designs
More mechanical protection
However, the final performance depends on how the manufacturer uses that internal volume. A particular 26650 may be optimized for long cycle life or high power rather than maximum capacity.
The cell format does not determine voltage.
Both 18650 and 26650 cells may be built with standard lithium-ion chemistries that have a nominal voltage of approximately 3.6V or 3.7V. Other cells may use lithium iron phosphate or another chemistry with a lower nominal voltage, such as approximately 3.2V or 3.3V.
The charging voltage must also match the chemistry:
A standard lithium-ion cell often charges to 4.2V.
A lithium iron phosphate cell commonly uses a lower charging voltage.
Some specialized cells may use different voltage limits.
Nominal voltage, full-charge voltage, and cutoff voltage should be checked against the cell datasheet rather than inferred from the cell format. The 18650 battery voltage guide distinguishes these reference points. Therefore, a 26650 battery cannot be selected by size alone. The charger, BMS, device input range, series count, and cell chemistry must all be compatible.
Not automatically.
If a 3.7V nominal 18650 cell and a 3.7V nominal 26650 cell use the same chemistry, their individual nominal voltage can be similar. The 26650 may store more energy because of its higher capacity, but that is an energy difference rather than an inherent voltage difference.
When cells are connected in series, the pack voltage is determined by the number of cells in series and the chemistry of the cells. A 3S 18650 pack and a 3S 26650 pack can have a similar nominal voltage if they use the same chemistry.
Capacity is measured in ampere-hours or milliampere-hours. It indicates how much charge the cell can deliver under specified test conditions.
A larger 26650 cell often has a higher absolute capacity than an 18650 cell because it has more internal volume. However, capacity ranges overlap, and not every 26650 has a higher capacity than every 18650.
Mainstream 18650 cells commonly fall within the approximate range of 2,000mAh to 3,500mAh, depending on the cell design. Many 26650 cells are available in the approximate range of 2,500mAh to 5,500mAh, but the actual value depends on the chemistry, manufacturer, electrode loading, and test conditions.
These ranges are general market tendencies rather than universal specifications.
Consider two illustrative cells:
18650 cell: 3.6V × 2.8Ah = approximately 10.1Wh
26650 cell: 3.7V × 5.0Ah = approximately 18.5Wh
The 26650 example provides more energy per cell, but it also requires more space and adds weight.
A different comparison may produce another result. For example, a high-power 26650 lithium iron phosphate cell may have a nominal voltage of about 3.3V and a capacity of approximately 2.5Ah. Its energy may be similar to or lower than a high-capacity 18650 lithium-ion cell, even though the 26650 is physically larger.
For design work, compare watt-hours rather than mAh alone:
Pack energy = Nominal voltage × Capacity
For a complete pack, usable energy, conversion efficiency, cutoff limits, and device load also affect runtime; 18650 battery pack capacity and runtime calculations bring these variables into the estimate.
A 26650 cell often has greater current-handling potential because its larger internal structure can support more active material and lower-resistance pathways. The wider format may also provide better heat dissipation in some designs.
However, discharge current is determined by the cell model, not just its size.
A high-power 18650 cell may provide more current than an energy-focused 26650. Important specifications include:
Maximum continuous discharge current
Pulse discharge current
Internal resistance
Discharge temperature
Voltage drop under load
Cutoff temperature
Cycle-life test conditions
For example, one high-power 18650 model may be rated for a continuous discharge current of 35A, while one 26650 lithium iron phosphate model may be rated for a much higher current. These specifications cannot be generalized to every cell in the format.
When the cell has lower internal resistance, less energy is converted into heat during current flow.
The heat generated by resistance can be represented by:
Heat loss = Current² × Internal resistance
A larger cell may be able to reduce resistance or spread heat more effectively. This can be useful in high-current applications, but thermal behavior still depends on the electrode design, current level, cooling conditions, and pack structure.
A 26650 battery should not be selected solely because it is larger. The cell must be tested at the actual continuous and peak current required by the device. For demanding loads, high-drain 18650 battery selection should focus on continuous current, pulse current, voltage sag, temperature rise, and cycle-life conditions rather than cell size alone.
26650 batteries are generally heavier than 18650 batteries.
The additional weight comes from:
Larger steel casing
Greater electrode volume
More active material
Larger terminals or internal structures
Additional protection components, if included
As an example, a high-power 18650 cell may weigh around 46g, while a large 26650 cell may weigh around 70g to 80g. Actual values vary significantly by model and construction.
The weight difference may be important for:
Handheld devices
Portable medical equipment
Wearable products
Robotics
Drones
Mobile instruments
Battery-powered tools
Equipment carried by workers
A 26650 may reduce the number of cells required to reach a capacity target, but each cell is heavier and wider. The final pack weight must be calculated after including holders, interconnects, protection electronics, enclosure, wiring, and thermal components.
A 26650 battery should not be installed in a device designed for 18650 cells unless the device has been specifically redesigned or approved for both formats.
Compatibility depends on more than the cell length. Check:
Diameter
Length
Terminal type
Positive terminal height
Flat-top or button-top design
Protected or unprotected construction
Holder contact pressure
Pack interconnects
Device current demand
Charging system
BMS or PCM configuration
Heat dissipation path
Terminal geometry can also affect fit; flat-top and button-top 18650 batteries may require different contact arrangements in a holder or pack. A larger cell may physically touch the enclosure even when the electrical voltage appears correct. Excessive pressure can damage the wrapper or terminal. A loose fit can create vibration, contact resistance, or intermittent power loss.
Usually, no.
A 26650 is approximately 8 mm wider than an 18650. An 18650 holder, battery tube, enclosure, and cell spacing are normally not designed to accommodate that difference.
Replacement may be possible only when:
The device has sufficient diameter clearance
The holder supports both formats
The terminal design is compatible
The charging circuit supports the selected chemistry
The protection system is correctly configured
The mechanical structure has been validated
For an OEM device, the cell format should be selected during the design stage rather than substituted after production has started.
The choice between the two formats affects the entire pack layout.
18650 cells are useful when the design requires:
Compact cell diameter
Flexible series-parallel arrangements
More options for narrow or irregular pack layouts
Lower weight per cell
Mature supply and broad availability
Multiple cells distributed across a larger enclosure
The smaller diameter can make it easier to create thin or curved arrangements within a defined enclosure.
26650 cells may be suitable when the design prioritizes:
Higher capacity per cell
Higher current potential
Fewer parallel cells
Fewer interconnections
More robust cylindrical construction
Larger available enclosure volume
Reducing the number of parallel cells may simplify some electrical connections. However, the larger cell diameter can make the pack harder to fit into a narrow housing.
A 26650 pack may use fewer cells for the same target capacity, but it still requires:
Correct cell matching
Appropriate series configuration
Compatible BMS
Suitable interconnects
Mechanical restraints
Thermal evaluation
Charging-system validation
The total pack design should be evaluated rather than comparing only the number of cells. Cells used in the same pack should also be matched by model, capacity, internal resistance, and condition; this is why cell matching in an 18650 battery pack matters before assembly. The selected series configuration must then be paired with a BMS designed for its cell count, current, and protection limits; this is the basis of 18650 battery pack BMS design. Once the cell format is selected, the finished 18650 battery pack still needs the correct series configuration, BMS, connector, and enclosure.
There is no universal winner between 26650 and 18650 batteries. The correct choice depends on the equipment’s electrical, mechanical, thermal, and commercial requirements.
An 18650 may be more suitable when:
Internal space is narrow
Low weight is important
The product requires a flexible pack layout
The required current can be met by a qualified 18650 cell
The supply chain already supports 18650 production
The device uses an existing 18650 holder or pack structure
A 26650 may be more suitable when:
The enclosure has sufficient diameter clearance
Higher capacity per cell is valuable
The device requires high continuous current
Fewer parallel cells are preferred
Weight is less important than runtime or current capability
The mechanical design can support the larger cell
During early prototyping, 18650 battery selection for an OEM device should bring these electrical, mechanical, thermal, and supply-chain factors together before the team commits to either format. The same selection factors can be applied when comparing 21700 and 18650 batteries, especially when enclosure size, energy density, and current demand are being balanced.
If the device cannot accommodate either a standard cylindrical layout efficiently, a custom battery design may be more practical.
A custom solution can address:
Cell format selection
Series and parallel configuration
Voltage and capacity
Protection circuit
Connector type
Wire length
Enclosure shape
Thermal management
Mounting points
Sample testing
Mass-production requirements
When standard cylindrical cells cannot provide the required balance of size, capacity, current, and mechanical fit, custom 18650 battery solutions give the project more flexibility during product development.
Voltage is determined by chemistry and configuration, not cell diameter.
A lower-voltage cell with higher mAh may not provide more watt-hours than a higher-voltage cell with lower mAh.
Power capability depends on the specific model, internal resistance, electrode design, and thermal conditions.
Nominal 18 mm, 26 mm, and 65 mm dimensions do not include every terminal, wrapper, protection board, or installation tolerance.
The larger diameter can damage the holder, enclosure, insulation, or terminals.
Capacity and current requirements should be calculated before selecting the cell format.
An 18650 and a 26650 should not be combined in the same series or parallel group unless the complete battery system has been specifically engineered and validated for that configuration.
Not in every application. 26650 batteries often provide more capacity or current potential per cell, while 18650 batteries are smaller, lighter, and easier to fit into compact devices.
They can have the same nominal voltage when they use the same chemistry. However, the format does not determine voltage, so the exact cell datasheet must be checked.
Usually not without changing the holder or enclosure. A 26650 battery is significantly wider and may also have different terminal, protection, and charging requirements.
A 26650 cell often has a higher absolute capacity because it is larger, but capacity varies by model. A high-capacity 18650 may outperform a low-capacity 26650 in a specific comparison.
Many 26650 cells are designed for high-current applications, but a high-power 18650 can also provide substantial discharge current. Compare the manufacturer’s continuous and pulse ratings instead of relying on format size.
An 18650 battery is generally lighter because it contains less casing and active material. The final pack weight depends on how many cells are required to meet the voltage, capacity, and current targets.
Not automatically. Cycle life depends on chemistry, depth of discharge, temperature, charging conditions, current, and cell quality. The manufacturer’s cycle-life test conditions should be compared.
They may not be. Their larger diameter requires more space around the cell and may limit the enclosure, holder, connector, and cooling design.
26650 and 18650 batteries use different cylindrical formats, with the 26650 being significantly wider while both are approximately 65 mm long. The larger 26650 format can provide more capacity and current potential per cell, but it also adds weight and requires more installation space.
The 18650 format is often better for compact, lightweight, and flexible battery pack designs. The 26650 format can be valuable when the product has enough room and needs more energy or current from each cell.
The final selection should be based on verified cell specifications, not format names alone. Compare chemistry, voltage, capacity, current, internal resistance, weight, dimensions, charging requirements, protection design, and real device constraints before approving the battery for production.
