If you are asking, “How long does it take to charge a lithium battery?” there is no single answer that applies to every cell or battery pack. Charging time mainly depends on the capacity that must be replaced, the permitted charging current, the starting state of charge, and the constant-voltage stage near full charge.
A small 2Ah battery charged at 1A may require much less time than a 10Ah battery charged at the same current. However, the charger’s rated output is not the only factor. The battery chemistry, cell model, temperature, BMS limits, charger design, and termination settings also affect the final result.
For projects using an 18650 cell, the 18650 charging process and safety requirements should be evaluated separately. This article focuses on the calculation method that can be applied to lithium-ion cells and battery packs.

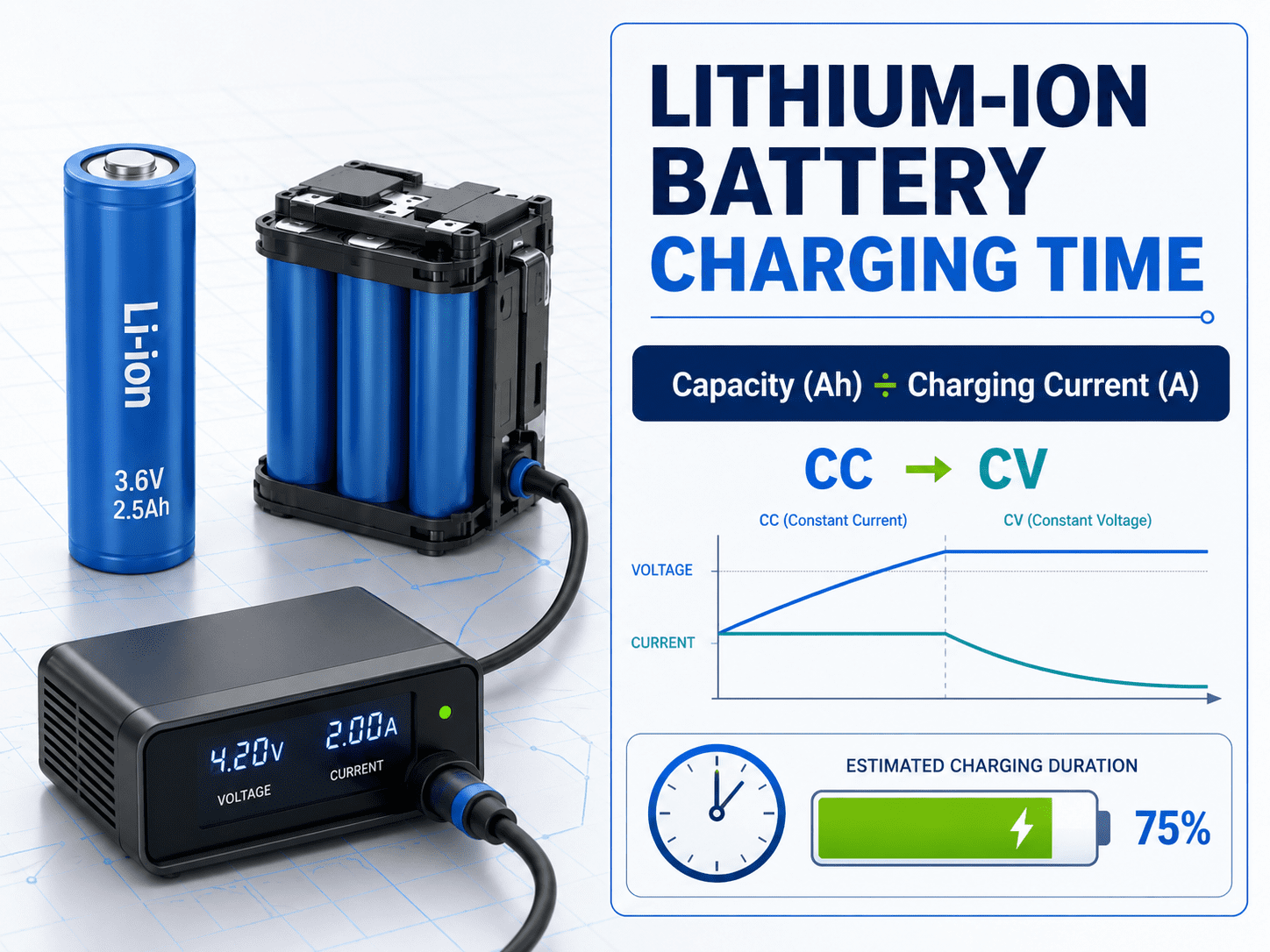

A basic charging-time estimate uses the capacity to replace divided by the charging current.
The result is only an ideal constant-current estimate.
The constant-voltage stage adds time as the charging current gradually decreases.
Battery capacity should be converted from mAh to Ah before calculating.
A higher-current charger is not automatically suitable for every lithium-ion battery.
Battery voltage alone does not determine charging time.
For battery packs, parallel capacity, series configuration, charger voltage, and BMS limits must be evaluated together.
A final OEM charging time should be confirmed through datasheet review and sample testing.
A lithium-ion battery may take anywhere from less than an hour to more than ten hours to charge, depending on its capacity and charging current. A practical estimate starts with this formula:
Estimated charging time ≈ Capacity to replace (Ah) ÷ Charging current (A) + Constant-voltage taper time
For example, if a 3Ah battery is charged from 20% to 100%, approximately 2.4Ah must be replaced:
3Ah × 80% = 2.4Ah
With a 1A charging current, the ideal constant-current time is:
2.4Ah ÷ 1A = 2.4 hours
The actual charging cycle will usually take longer because the charger reduces current during the constant-voltage stage. The final time may also be affected by temperature, battery condition, charger efficiency, BMS limits, and the cell manufacturer’s charging instructions.
The battery’s nominal voltage does not provide enough information to calculate charging time. A 3.7V, 1Ah battery and a 3.7V, 5Ah battery have the same nominal voltage but very different charging requirements.
The most useful starting point for a battery charging time calculation is the amount of charge that needs to be replaced.
The basic formula is:
Charging time ≈ Capacity to replace (Ah) ÷ Charging current (A)
This formula describes the ideal constant-current portion of the charging cycle. It does not include:
Preconditioning for a deeply discharged battery;
The constant-voltage taper stage;
Charger losses;
BMS balancing;
Temperature-related current reduction;
Current limits imposed by the cell or battery pack;
Time used for charging termination.
Battery capacity is often shown in milliamp-hours, or mAh, while charging current is usually shown in amps.
To convert mAh to Ah:
Capacity (Ah) = Capacity (mAh) ÷ 1,000
Examples:
2,000mAh = 2Ah;
3,000mAh = 3Ah;
3,500mAh = 3.5Ah;
5,000mAh = 5Ah.
If a 3,000mAh cell is charged at 1A from empty under ideal constant-current conditions, the basic calculation is:
3Ah ÷ 1A = 3 hours
This does not mean the cell will always reach full charge in exactly three hours. A lithium-ion charger normally reduces the current as the battery approaches its maximum charging voltage.
A battery rarely starts charging at exactly 0%. The amount of charge that must be replaced depends on the starting state of charge.
For example, a 3Ah battery charged from 50% to 100% requires approximately 1.5Ah:
3Ah × 50% = 1.5Ah
At a 1A charging current:
1.5Ah ÷ 1A = 1.5 hours
A battery charged from 20% to 100% requires more time:
3Ah × 80% = 2.4Ah
At the same 1A current:
2.4Ah ÷ 1A = 2.4 hours
These figures represent the ideal current-based portion of the charge. The constant-voltage stage still needs to be added.
Capacity is one of the most important factors. A larger battery generally requires more charge to reach full capacity.
For example, if two batteries are charged at the same current:
A 2Ah battery requires less time than a 5Ah battery;
A 5Ah battery requires less time than a 10Ah battery;
A battery pack with more parallel capacity normally requires more time than a pack with fewer parallel cells.
Capacity should not be confused with voltage. Voltage describes the electrical potential of the battery, while Ah describes how much charge the battery can store.
Charging current determines how quickly the battery can receive charge during the constant-current stage.
If a 3Ah battery accepts 1A, the ideal current-based time for a full charge is approximately three hours. If the same battery accepts 0.5A, the ideal time is approximately six hours before adding the constant-voltage stage.
However, the current must remain within the cell manufacturer’s specifications. A charger rated at 2A does not mean every lithium-ion battery can safely accept 2A.
The permitted current can vary between two cells with the same physical size and similar capacity. For an OEM design, the recommended charging current, maximum charging current, operating temperature, and cycle-life conditions should be taken from the selected cell’s datasheet.
Lithium-ion batteries are not normally charged at the maximum current until the moment they are full.
During the constant-current stage, the charger supplies a controlled current. When the cell reaches its specified charging voltage, the charger changes to constant-voltage control. The charging current then gradually decreases.
This final stage is called the taper stage. It is one of the main reasons the actual charging time is longer than the simple capacity-divided-by-current calculation.
Battery charger controllers commonly use preconditioning, constant-current, constant-voltage, and termination stages.
The following examples show the ideal constant-current portion of the calculation. They are planning examples, not universal charging-time specifications.
Battery Capacity | Starting State of Charge | Capacity to Replace | Charging Current | Ideal Constant-Current Time |
|---|---|---|---|---|
2Ah | 50% | 1Ah | 1A | 1 hour |
3Ah | 20% | 2.4Ah | 1A | 2.4 hours |
3Ah | 20% | 2.4Ah | 0.5A | 4.8 hours |
5Ah | 20% | 4Ah | 2A | 2 hours |
10Ah pack | 30% | 7Ah | 2A | 3.5 hours |
The actual time will be longer when the constant-voltage stage, charger efficiency, temperature limits, and termination behavior are included.
A 3Ah battery charged at 1A may therefore require approximately three hours for the main charging phase and additional time during the taper stage. The exact result depends on the battery model and the charger’s termination conditions.
The formula is useful because it provides a simple planning reference. It should not be treated as a complete battery specification.
Most batteries begin charging with some remaining capacity. Charging from 60% to 100% is different from charging from 10% to 100%.
A device that automatically starts charging when the battery reaches a low threshold may have a shorter charging cycle than a battery that has been deeply discharged.
A charger may reduce current because of:
High battery temperature;
High charger temperature;
Input power limitations;
Battery protection limits;
A conservative charging profile;
A system load operating at the same time.
When the current is reduced, the charging cycle takes longer.
Lithium-ion batteries generally require a controlled temperature range during charging. If the battery is too hot or too cold, the charger or BMS may reduce current or stop charging.
This means two identical batteries can have different charging times when used in different environments. A battery charged in a cool, well-ventilated enclosure may follow a different profile from one installed in a compact enclosure with limited heat dissipation.
An aged battery may accept charge differently from a new battery. Increased internal resistance can produce more heat and cause the charger or protection system to reduce current.
A battery with reduced capacity may appear to charge quickly because it stores less energy than when it was new. Charging time alone therefore cannot be used to determine battery health.
For a multi-cell battery pack, the BMS may limit charging current or continue balancing near the end of the cycle.
If one series group reaches its upper voltage limit earlier than the others, the BMS may reduce charging or stop the process. A pack with cell imbalance may therefore take longer to reach a completed charging state than a well-matched pack.
Battery pack charging time depends on how cells are connected.
Cells connected in series increase the pack voltage. Cells connected in parallel increase the pack capacity and current capability. For charging-time calculations, the parallel capacity is especially important.
For example, consider a 3S2P pack built from 3Ah cells:
Series count: 3;
Parallel count: 2;
Pack capacity: 3Ah × 2 = 6Ah;
Ideal charging current: 1A;
Ideal constant-current time from empty: approximately 6 hours.
The charger must also provide the correct voltage for the three-series configuration. The voltage setting cannot be selected only from the pack’s marketing label.
For a pack project, use the 18650 battery pack calculator to estimate the series and parallel configuration first. The charging-time calculation can then use the resulting pack capacity and the permitted charging current.
A pack’s total cell count alone does not determine charging time. A 3S1P pack and a 3S4P pack have the same series voltage class, but the 3S4P pack has greater capacity and normally requires more charge to reach full capacity.
For more detailed capacity and energy relationships, the 18650 battery pack capacity and runtime calculations provide the necessary background without treating runtime and charging time as the same measurement.
An 18650 cell is a physical cell format, not a single universal electrical specification. Different 18650 cells can have different capacities, charging currents, temperature limits, and charging instructions.
Suppose a 3,000mAh 18650 cell starts at 20% state of charge and is charged at 1A.
The approximate capacity to replace is:
3Ah × 80% = 2.4Ah
The ideal constant-current time is:
2.4Ah ÷ 1A = 2.4 hours
The final charging time will be longer because of the constant-voltage stage. If the selected cell only permits a lower charging current, the cycle will take longer. If the cell permits a higher current, the cycle may be shorter, but the higher value should only be used when it is supported by the datasheet and complete charging system.
This is why the phrase “how long to charge a lithium ion battery” cannot be answered by voltage alone. Capacity, current, chemistry, and the charge controller all matter.
For an OEM project, charging time is a design input rather than a simple consumer estimate.
The development team should define:
Required battery capacity;
Starting and target state of charge;
Available input power;
Maximum charging current;
Required charging window;
Battery chemistry;
Series and parallel configuration;
BMS charging-current limit;
Charger and connector ratings;
Operating and charging temperature;
Thermal conditions inside the enclosure;
Required cycle life.
A prototype should then be tested under realistic conditions. The test should record:
Initial battery voltage and state of charge;
Charging current over time;
Battery and charger temperature;
Time spent in constant-current charging;
Time spent in constant-voltage charging;
Termination behavior;
Voltage difference between series groups;
Final capacity after charging.
At ZERNE Battery, a charging-time estimate can be used as one part of a broader battery-pack specification review. The estimate should not be presented as a guaranteed result until the selected cell, charger, BMS, enclosure, and operating conditions have been validated together.
For OEM teams working with Guangdong Zhaoneng Technology Co., Ltd., the calculation can support sample planning before moving toward a customized battery design. ZERNE Battery can then align the pack configuration and charging interface with the device’s voltage, capacity, space, and production requirements through its custom 18650 battery solutions.
A battery’s nominal voltage does not show how much charge it stores. Two batteries with the same nominal voltage can have very different capacities.
A capacity of 3,000mAh does not mean that the battery should be charged at 3,000mA. Capacity and charging current are different specifications.
A charger may be capable of supplying 2A, but the battery may only permit 1A. The cell datasheet and BMS limit should take priority.
Capacity divided by current gives an ideal current-based estimate. It does not account for the gradual current reduction near full charge.
Different lithium-based chemistries can have different voltage limits and charging requirements. A standard lithium-ion profile should not automatically be applied to LiFePO4 or another chemistry.
Total cell count does not directly determine charging time. The series count determines the required charging voltage, while the parallel count determines the pack capacity and affects the required charging duration.
A battery that charges quickly may have lost capacity. A battery that charges slowly may have a low charging current, high resistance, temperature limitation, or BMS-related restriction. Charging time should be evaluated together with capacity, voltage behavior, and internal resistance.
The answer to “how long do lithium batteries take to charge?” depends on the amount of charge that must be replaced and the current the battery is allowed to accept.
The basic calculation is:
Capacity to replace (Ah) ÷ Charging current (A) + Constant-voltage taper time
This formula is useful for early planning, but it is not a substitute for the selected cell’s datasheet or a complete charging-system test.
For a single cell, capacity and charging current are the main starting points. For a battery pack, the series configuration, parallel capacity, charger voltage, BMS limits, balancing behavior, temperature, and termination method must also be considered.
A reliable charging-time specification should therefore combine calculation, datasheet review, prototype testing, and application-specific validation.
It may take less than an hour or more than ten hours, depending on the battery capacity, charging current, starting state of charge, and charger profile. The constant-voltage stage usually adds time beyond the basic capacity-current calculation.
Convert the capacity to amp-hours, multiply it by the fraction of capacity that needs to be replaced, and divide the result by the permitted charging current. Add extra time for the constant-voltage taper and any current reduction.
A rough estimate is the full battery capacity in Ah divided by the permitted charging current in A, plus the constant-voltage stage. A battery should not be deliberately discharged to zero unless the manufacturer specifically defines that condition as acceptable.
The answer depends on capacity. A 2Ah battery requires approximately two hours during the ideal constant-current phase, while a 5Ah battery requires approximately five hours. Actual time will be longer because of tapering and other charging limits.
They may charge faster if the battery, BMS, charger, connector, and thermal system all support the higher current. A higher-current charger should not be used simply because it reduces the calculated charging time.
A battery pack’s charging time depends on its parallel capacity, charging current, series configuration, BMS limits, balancing behavior, and starting state of charge. The charger must also match the pack’s required charging voltage.
Voltage determines the charger’s required voltage range, especially for a multi-cell pack, but it does not determine charging time by itself. Capacity and permitted charging current have a more direct effect on the calculation.
No. Charging time alone cannot confirm battery health. Capacity testing, voltage behavior, internal resistance, self-discharge, temperature, and load performance should also be evaluated.
