How is a Lithium-Ion Battery Charged Step by Step

You charge a lithium-ion battery by moving lithium ions from one side to the other. This uses a careful process called the constant current, constant voltage (CCCV) method. This way helps keep the battery safe and working well. Today, lithium-ion batteries are everywhere. You see them in your phone and in electric cars like the Tesla Model S. People like these batteries because they store a lot of energy and last a long time. When you charge them, the process starts with a gentle pre-charge. Then it goes to a main charge. It ends by checking for any early problems. These steps help the battery stay safe and last longer.

Key Takeaways

• Charging a lithium-ion battery means moving lithium ions from one side to the other. This uses the CCCV method. It helps keep charging safe and efficient.

• There are four main steps in charging. These are trickle charge, constant current, constant voltage, and charge termination. Each step is important for battery health.

• Always use the right charger for your device. This stops overcharging and damage. The battery management system helps protect against these problems.

• Try to keep your battery between 20% and 80% charged. This is best for battery health. Do not charge in very hot or cold places.

• Check your battery often while it charges. This helps you find problems early. It also helps your battery last longer.

Lithium-Ion Battery Charging Overview

Charging Process Summary

You use the constant current, constant voltage (CCCV) method to charge a lithium-ion battery. This way makes charging safe and reliable. At first, a steady current goes into the battery. When the battery hits a certain voltage, the charger keeps the voltage steady. The current slowly gets lower until the battery is full. This helps stop damage and lets the battery last longer.

Inside the battery, ions move during charging. Here is what happens step by step:

• Lithium ions go from the cathode to the anode.

• This movement makes a voltage, which the battery needs to work.

• Other ions move through the electrolyte to keep the charge balanced.

• This movement is important for storing energy and letting the battery recharge.

There are new ways to charge lithium-ion batteries. These new ways make charging faster, improve how the battery works, and add safety to stop overcharging and overheating.

Importance of Controlled Charging

Controlled charging is needed to keep your lithium-ion battery safe. Charging too fast or letting it get too hot can hurt the battery. Controlled charging keeps the battery cool and safe. It also helps the battery last longer.

The test results show that the new multi-step fast charging plan makes charging faster and creates less heat than old fast-charging ways. High cell temperature makes the battery wear out faster. This can cause lithium plating, more SEI layer growth, and stress on the battery parts. All these things make the battery lose power quickly. By keeping the battery cooler, the new plan stops these problems and slows down battery wear.

You can look at different charging ways to see how CCCV is different:

The CCCV method gives both safety and speed. You get a full charge without making the battery too hot. That is why most devices use CCCV to charge lithium-ion batteries.

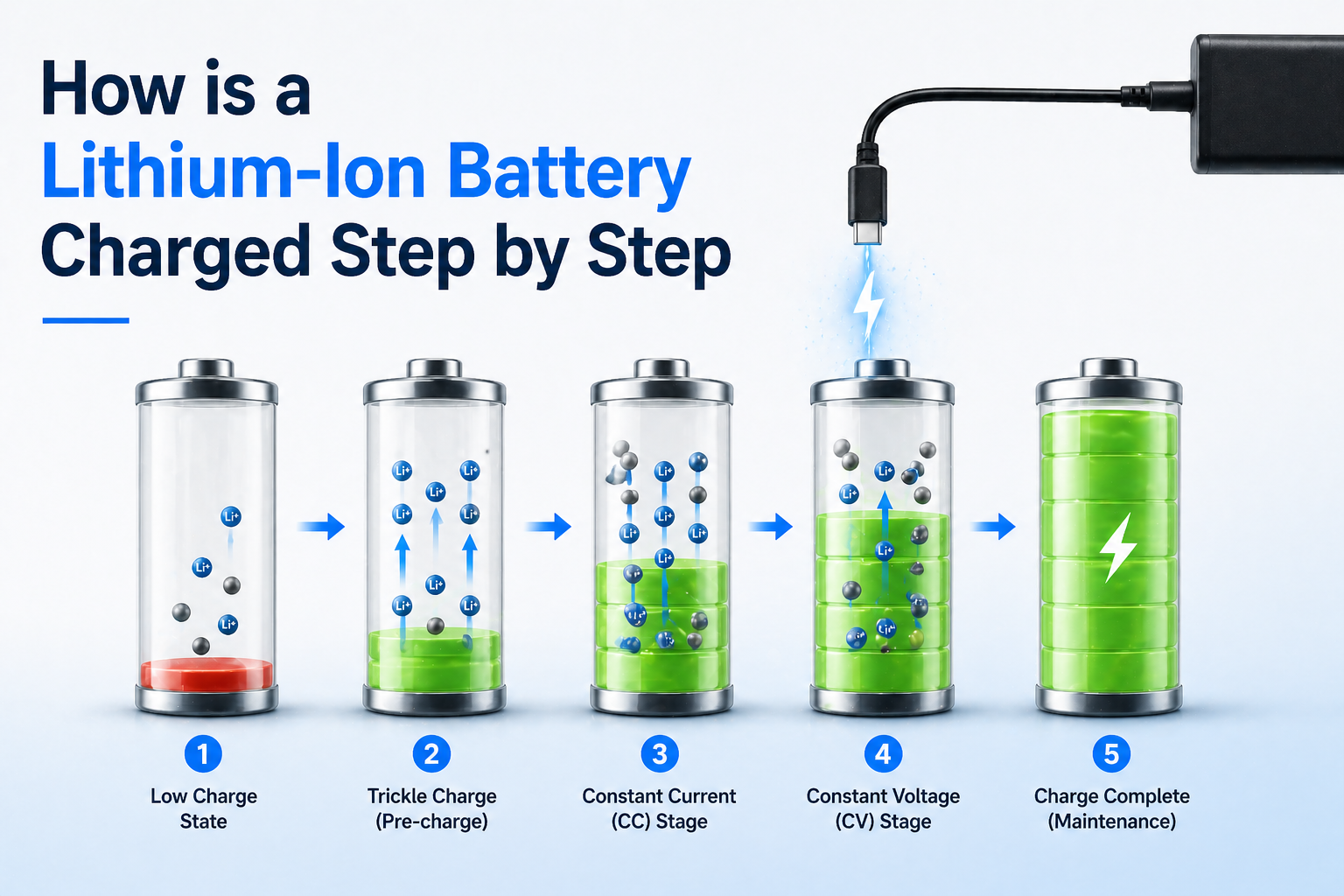

Lithium-Ion Battery Charging Stages

Charging a lithium-ion battery happens in a few steps. Each step helps keep your battery safe and working well. Let’s see what each part does.

Trickle Charge Stage

You start with the trickle charge stage when the battery is very low. This stage uses a tiny charging current. It wakes up the battery slowly and gets it ready for the main charge. You should not hurry this step because a weak battery needs gentle care.

Here is what happens during the trickle charge stage:

• The charger sends a small current into the battery.

• This step helps replace energy the battery lost while not being used.

• The battery stays ready to use and does not get hurt.

You can see the main ideas in this table:

This gentle start keeps the battery safe and gets it ready for the next step.

Constant Current Stage

After trickle charge, you go to the constant current stage. This is the main part of charging for lithium-ion batteries. Here, the charger gives a steady current. The battery voltage goes up as it fills with energy.

During this stage:

• The charger keeps the current steady.

• The battery voltage rises as more energy goes in.

• This stage usually fills about 70-80% of the battery’s total power.

• The battery management system checks the current to stop the battery from getting too hot.

• The amount of current depends on the battery’s size and how fast you want to charge it.

For example, if you have a lithium cobalt battery, the current is usually between 0.5C and 1C. For lithium iron phosphate batteries, it is between 0.3C and 1C. The charging current is important because it helps the battery charge safely and evenly.

Constant Voltage Stage

When the battery voltage hits its set limit, you start the constant voltage stage. In this stage, the charger keeps the voltage steady and lets the current slowly drop. This step is very important for lithium-ion batteries.

Here is what you need to know:

• The charger holds the voltage at a set level, usually 4.2 volts for lithium cobalt batteries or 3.6 volts for lithium iron phosphate batteries.

• The charging current drops as the battery fills up.

• This stage goes on until the current falls to a very low value, usually about 5% of the starting current.

• This careful control stops the battery from getting too hot and makes sure it gets a full charge.

Manufacturers use special parts and smart systems to keep the voltage and current right. Even a small mistake can hurt the battery or make it less useful. The constant voltage stage helps you get the most from your lithium-ion battery.

Charge Termination

The last step is charge termination. This is when the charger stops sending power to the battery. You need to stop charging at the right time to keep the battery safe.

Here are the main things to watch for:

• The charger stops when the battery reaches its top voltage, like 4.2V for lithium cobalt or 3.6V for lithium iron phosphate.

• The charging current drops to a very low level, showing the battery is full.

• If you keep charging after this, you might hurt the battery. Overcharging can make the battery too hot or even break it inside.

• Stopping the charge at the right time keeps the battery safe and helps it last longer.

You can see some important limits in this table:

Tip: Always use a charger made for your lithium-ion batteries. This helps you avoid overcharging or undercharging, which can hurt your battery.

By following these steps, you make sure your lithium-ion battery charges safely and lasts a long time. Each stage in the charging process helps protect your battery and gives you the best performance.

Inside the Lithium-Ion Battery

Ion Movement During Charging

When you charge lithium-ion batteries, a lot happens inside. You can think of the battery as a tiny factory. When you plug in your device, lithium ions start to move. These ions go from the cathode to the anode. At the same time, electrons move outside the battery. They travel from the anode to the cathode through wires. This movement puts energy into the battery for later use.

Inside the battery, small things happen:

• The solid electrolyte interphase (SEI) forms on the anode. This thin layer keeps the battery safe and helps it last longer.

• The way lithium ions move changes near the anode’s surface. The ions can move faster or slower if there are more or less of them.

• The anode’s surface gets a negative charge. This pulls in more lithium ions and makes pairs with other ions.

You can see that lithium-ion batteries need these tiny changes to work well. If you look inside, you will see that the battery’s safety and power depend on how well these ions move.

Electrode Reactions

You can think of the electrodes as the start and end for lithium ions. When you charge lithium-ion batteries, two main reactions happen. These reactions help the battery store energy.

Here is a simple table that shows what happens at each electrode:

At the cathode, lithium atoms lose electrons. This is called oxidation. The lithium ions then move through the battery to the anode. At the anode, the ions get electrons again. This is called reduction. These reactions happen in all lithium-ion batteries, like in phones, laptops, or electric cars.

You can see that the movement of lithium ions and electrons makes charging work. Each cell in lithium-ion batteries does this process again and again. That is why these batteries can store and give out energy so well.

Safe Charging Practices

Role of Battery Management System

The battery management system keeps your rechargeable battery safe. It works like a smart guard for the battery pack. It checks each cell’s voltage all the time. If a cell’s voltage is too high or low, charging stops to avoid damage. The system also watches the current going in and out. If there is a sudden spike or short circuit, it acts fast to protect your device.

Temperature is very important too. The battery management system checks how hot or cold the battery pack is. If the battery gets too hot or cold, it lowers the charging current or stops charging. Some systems have backup circuits and extra safety features. These help keep your battery safe even if the main system fails. The battery management system also balances the cells. It makes sure all cells charge evenly. This helps your battery pack last longer and work better.

Safety Tips for Charging

You can do simple things to keep your rechargeable battery safe. Here are some tips from experts:

Try not to make common mistakes. Do not charge above the recommended voltage. It is better to charge a little at a time than all at once. Small, frequent charges help your battery stay healthy. Never use a charger that is not made for your battery pack. If your battery pack gets hot, stop charging and let it cool down. Store your battery pack inside, away from sunlight and water.

Tip: Charging your rechargeable battery in the right place and with the right charger helps stop problems like overheating or losing power. You protect your battery pack and help it last longer.

Conclusion

You now know how to charge a lithium-ion battery step by step. You move lithium ions inside the battery and follow careful charging stages. Safe charging helps your battery last longer and work better. Try these tips for best results:

1. Use the charger that comes with your device.

2. Keep your battery between 20% and 80% charged.

3. Avoid letting your battery run out completely.

4. Charge in a cool place, around 68–77ºF.

Following these steps keeps your battery safe and strong.

FAQ

How long does it take to charge a lithium-ion battery?

How long it takes depends on the battery and charger. Most phone batteries need about 1 or 2 hours. Bigger batteries, like in electric cars, need more time. They can take a few hours to charge. Fast chargers can make charging go quicker.

Can you overcharge a lithium-ion battery?

You will not overcharge if you use the right charger. The battery management system stops charging when the battery is full. Overcharging can happen if you use a broken or wrong charger. Always use the charger that comes with your device.

What happens if you charge in a hot or cold place?

Charging in very hot or cold places can hurt your battery. High heat can make the battery swell or leak. Cold can make charging slow and shorten battery life. Always charge your battery in a cool and dry spot.

How do you know when your battery is fully charged?

You can look at your device’s battery icon or light. Many devices show a green light or a full bar when charged. Some chargers stop charging by themselves.
