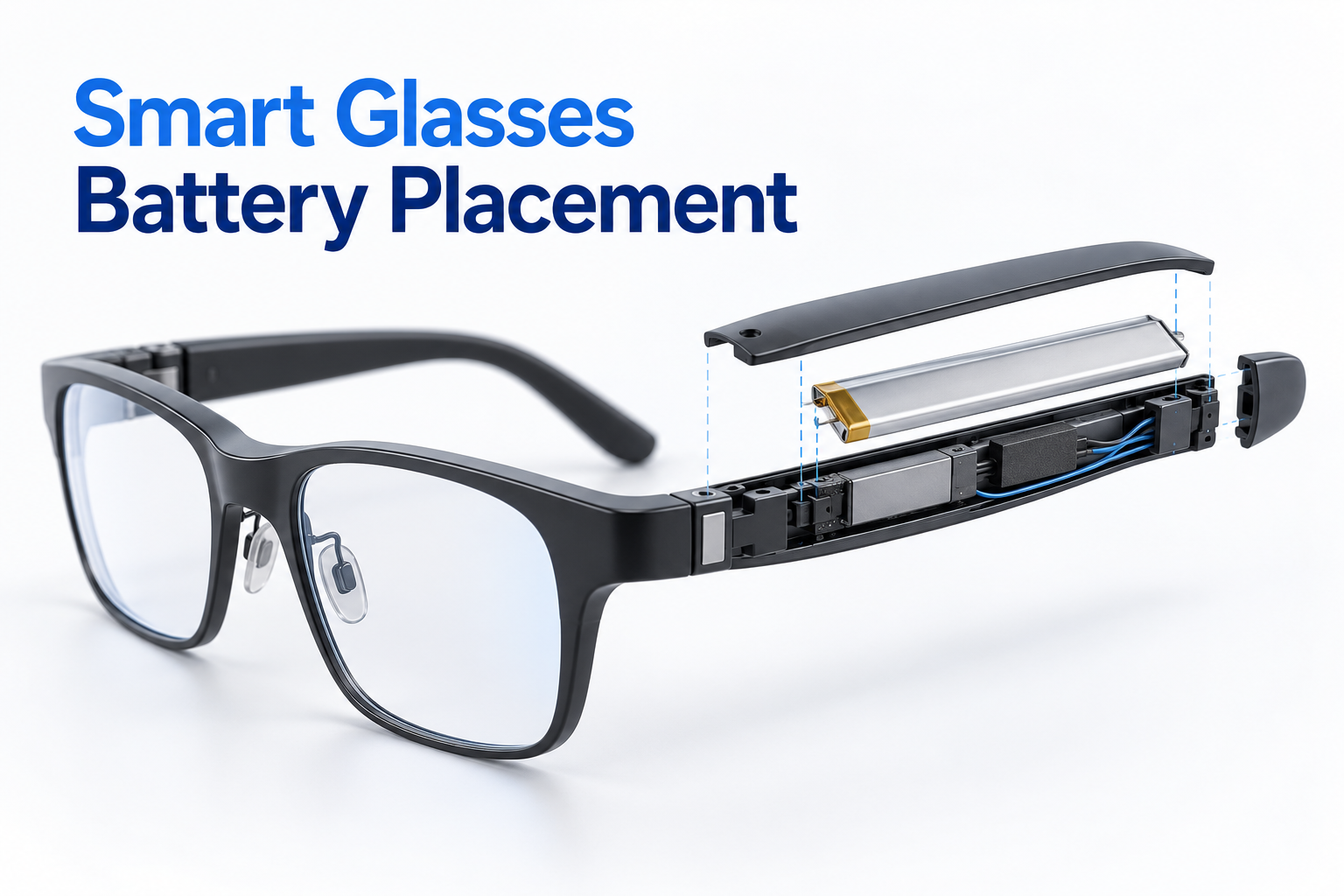

Battery placement in smart glasses is a frame-layout decision as much as an electrical one. A cell may meet the voltage and capacity targets on paper yet leave too little room for a hinge, wiring, optical modules or assembly tolerances. Its position can also affect how the glasses sit on the nose and ears.
OEM teams can reduce late redesigns by reserving the battery zone early, mapping the neighboring components and checking how the complete frame behaves under real operating conditions. This guide focuses on that integration work: where to place the cell, how to review balance and thermal paths, and what to validate before finalizing the battery configuration.
Reserve battery space in the frame layout before the electronics and hinge geometry are frozen.
Review the cell’s location and mass together with the front frame and temple components.
Check clearances, wiring routes, retention and assembly tolerances around the battery.
Evaluate temperature with the glasses operating in realistic high-load combinations.
Validate fit, balance, electrical performance and thermal behavior in assembled prototypes.
Start with a three-dimensional layout of the glasses frame. Include the front frame, temples, hinges, lenses, displays or waveguides, cameras, microphones, speakers, antennas, processors, control boards and charging contacts. The battery must share space with these parts while leaving room for wiring and assembly.
Create a defined battery envelope that shows the maximum permitted length, width and thickness. Include space for the complete pack, not only the cell. Protection components, insulation, cables, connector orientation and retention features can all affect the installed footprint.
A nominal battery dimension is not a final fit check. Compare the pack drawing with the frame’s internal geometry and review it with the intended assembly direction. If the pack cannot be installed without forcing the frame or stressing a cable, the layout needs revision.
The hinge area often has limited space and moving components. Check the battery and cable route throughout the hinge’s full range of motion, not just when the temple is open. Repeated opening and closing can place strain on wires or bring parts into contact.
Keep defined clearance around the hinge, fasteners and frame walls. Also consider how the frame will be assembled: a layout that fits in CAD may be difficult to build if the cell, connector and wiring have to pass through a narrow opening in a specific order.
Our thin lithium polymer battery options can be assessed against the available space, voltage, capacity, connector and protection requirements. Confirm the pack dimensions and cable outlet direction against the actual frame design before approving a sample.
The battery contributes to total product mass, but its placement matters too. A cell near the front frame may affect the balance differently from one in a temple. The final result also depends on the mass of lenses, displays, cameras, electronics and structural parts.
Compare proposed layouts using the estimated mass and location of each major component. A simple first-pass method is to calculate each component’s mass multiplied by its distance from a chosen reference point. Summing these moments helps the design team compare how different layouts shift the overall center of mass.
This calculation is only a screening tool. The assembled product should still be evaluated for how it rests on the nose and ears during intended use. If one temple carries substantially more mass than the other, review whether the frame geometry or component arrangement can improve balance without creating new electrical or mechanical constraints.
A single cell in one temple, a cell in the other temple, or a split-cell arrangement may each create different packaging and electrical tradeoffs. Do not assume that splitting the battery automatically improves comfort or performance. Multiple cells can add wiring, connection points and protection or balancing requirements, depending on the configuration.
Compare candidate layouts against a consistent set of criteria:
Available volume and cell thickness
Estimated mass and position
Distance from hinges and frame joints
Cable route and connector location
Electrical architecture and required current
Assembly and service access
Effect on balance with the complete device
Choose a layout only after reviewing these constraints together. A packaging advantage in one area may create a new issue elsewhere.
A thin or narrow cell may fit the frame but still fail to meet the device’s runtime or peak-current needs. Smart glasses can combine low-power standby with higher-demand functions such as camera capture, audio, wireless communication, displays or on-device processing. The load profile depends on which features operate at the same time.
Measure current in relevant modes and record how long each mode lasts. Include wake-up events, camera or display activation, data transfer and standby drain. Where a regulated power rail is used, calculate from the battery-side energy demand and account for conversion losses.
To compare runtime assumptions, use the lithium battery pack runtime calculation guide. Base final capacity on measured device data and the product’s required operating time.
A pouch cell must be installed within its specified mechanical limits. Do not bend, crease, compress or force a cell to follow the temple’s shape. If the frame needs a curved or unusually narrow battery profile, confirm with the supplier that the proposed cell construction and finished pack are designed for that geometry.
Review the battery’s orientation, protective covering, connector, cable exit and retention method as part of the layout. Avoid sharp edges or frame features that may press against the cell. Leave the clearances required by the battery design and verify them in physical samples.
ZERNE’s high-density lithium polymer battery options include compact-device configurations that can be reviewed against a smart glasses project’s space and electrical requirements. The suitable option depends on the actual frame envelope, measured load and charging design.
The battery is only one part of the thermal system. Processors, cameras, display electronics, radio modules and charging components may generate heat near the frame or temples. Map these sources in the layout and consider where that heat can move during normal use.
Avoid assuming that a battery can be placed beside a warm component simply because the parts fit. Review the cell’s specified operating and charging temperature limits, then evaluate the temperature at the battery location under the product’s intended conditions.
Test the assembled glasses in operating modes that combine several features, such as display use, recording, wireless communication and processing. Also evaluate charging conditions separately where the product supports charging while powered or has a charging case.
Record temperature at relevant locations, including the battery area and nearby electronics. Repeat checks in the product’s defined ambient conditions and document the test setup. If the design includes a temperature sensor or protection response, verify that it operates as intended in the complete device.
For a broader discussion of chemistry and runtime considerations in AI glasses, see our AI smart glasses battery article. This article focuses on frame placement and integration checks.
Smart glasses use compact frames, so small dimensional changes can affect the battery fit. Review the tolerance stack across the frame, battery pocket, cell thickness, adhesive or retention parts, and connector. Confirm that normal production variation will not leave the pack loose or place excess pressure on it.
Select a retention method that keeps the pack in its intended position through assembly and normal product handling. The method should not obstruct the hinge, distort the frame or complicate service beyond the product’s requirements.
Plan the cable route before finalizing the cell shape. Check that the wire length is sufficient without creating loops that interfere with the hinge or nearby components. Confirm connector orientation and access for assembly, inspection and any planned service procedure.
Build a sample using the intended frame parts, connector and wiring. A physical assembly check can reveal issues that are difficult to see in a CAD model, such as restricted tool access, cable pinch points or a cell that cannot be installed consistently.
A battery layout should be assessed in the complete product, not only as a component drawing. Use prototypes that reflect the intended frame, wiring, connector and retention method.
A practical validation plan can include:
Dimensional fit and assembly repeatability
Hinge movement and wire clearance
Product balance with all major components installed
Runtime under measured operating modes
Peak-current behavior during feature activation
Temperature during high-load use and charging
Pack movement after relevant mechanical checks
Connector access and retention
Device operation after assembly and rework
Use the same configuration and test conditions when comparing layout revisions. If the cell position changes, repeat checks that may be affected, such as balance, temperature, hinge clearance and cable routing. Our battery pack testing checklist can help organize electrical, temperature, connector and finished-device checks.
There is no single best location for every frame. Compare available space in the temples and front frame against component locations, hinge movement, wiring, total mass and the complete product’s balance. Confirm the layout with assembled prototypes.
That depends on the frame, electrical architecture and power requirements. A split arrangement may help with packaging in some designs, but it can add electrical connections and protection considerations. Compare both options using the same mechanical and electrical criteria.
Estimate the mass and location of the battery and other major components, then compare the layout’s center of mass. Follow the calculation with a physical fit and handling evaluation using a complete prototype.
Measure temperature in the assembled device during representative operating modes, including realistic combinations of displays, cameras, wireless functions and processing. Compare the results with the battery’s specified operating and charging limits.
Do not bend or crease a cell unless the supplier confirms that the specific battery construction is designed for that form. Define the required geometry with the frame design and validate the finished pack in a sample assembly.
Smart glasses battery placement should be planned alongside the frame, hinge, electronics and assembly route. Review the cell envelope, mass position, wiring, retention and thermal conditions before freezing the design.
A thin cell is useful only when it fits the product’s electrical and mechanical requirements. Validate the chosen placement in complete prototypes under realistic operating and charging conditions.
