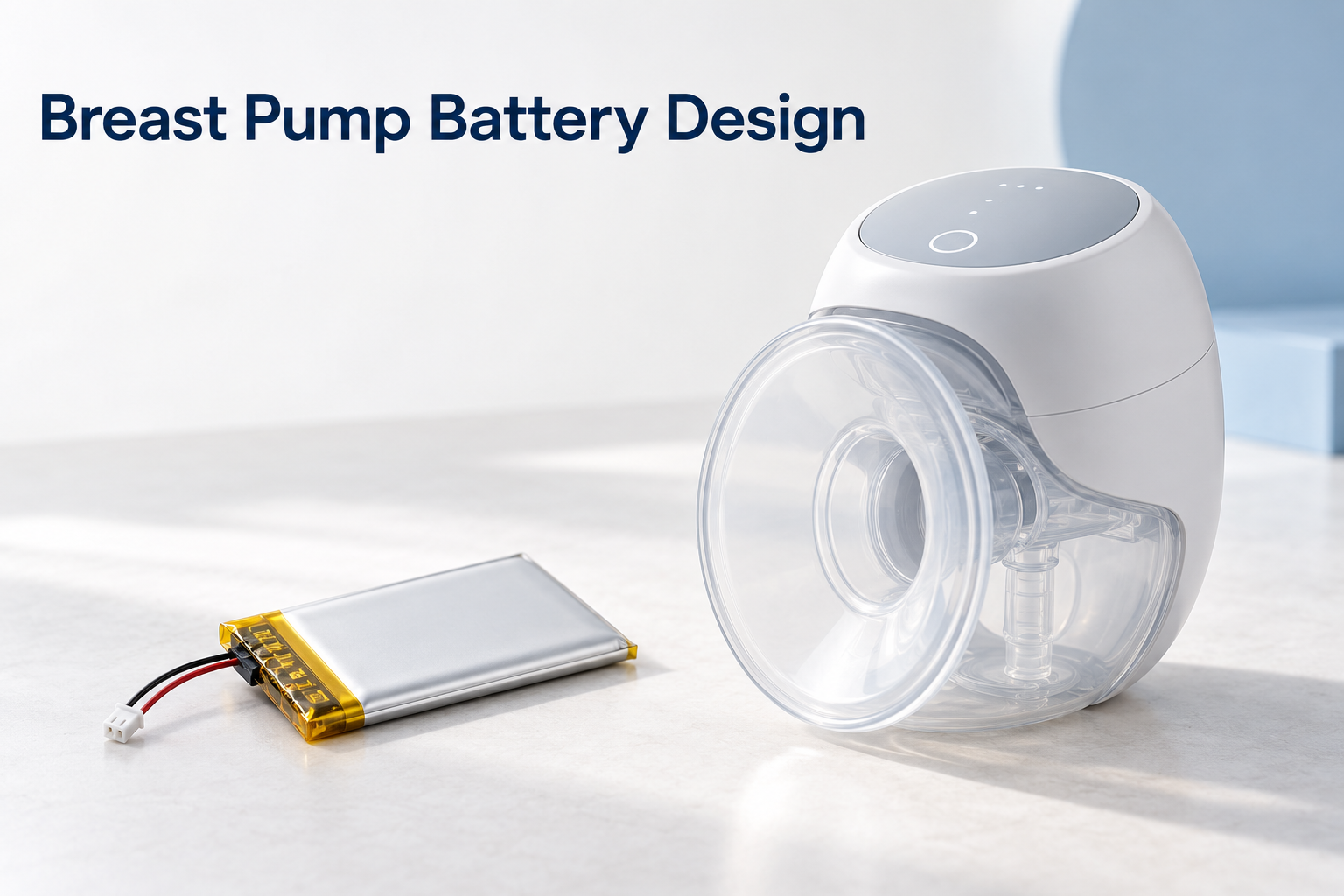

A portable breast pump must operate reliably in a compact enclosure. For OEM teams, battery selection affects more than the time between charges. The pack must support the pump motor’s startup load, fit around the electronics and mechanical components, and work with the device’s charging and protection design.
Battery placement can also affect the product’s mechanical layout. A loose pack, cable or connector may move against the housing and create unwanted noise. But the battery alone does not determine how loud the pump is. Acoustic performance depends on the complete device, including its motor, valves, airflow path, housing and control strategy.
A sound selection process starts with measured device data. This article explains how to estimate runtime, check peak current, assess battery space, coordinate charging and plan finished-device validation.
Base capacity on the pump’s actual use profile, including active sessions and standby time.
Check motor startup and peak current separately from average current.
Match the cell’s voltage limits with the charger, electronics and protection circuit.
Treat battery fit and retention as mechanical design factors; evaluate noise in the complete pump.
Validate runtime, charging, temperature, vibration and acoustic performance in the intended device configuration.
Start by documenting how the pump is expected to be used. Battery capacity should reflect a realistic operating cycle rather than a single runtime figure.
Record the expected operating time per session, sessions between charges, suction modes and typical intensity settings. Include pauses, mode changes, standby time and any display or wireless functions that draw power between sessions. If the product must meet a runtime target after extended use, define its minimum end-of-life runtime as well as its initial target.
Measure current at the battery side when possible. If the device uses a voltage converter, capture its input and output behavior too. Converter efficiency and changing battery voltage can affect the relationship between the pump’s power demand and the capacity required from the battery.
For a load with relatively stable battery-side current, use this as an initial estimate:
Required nominal capacity (Ah) ≈ Average battery-side current (A) × Active time (h) ÷ Usable-capacity fraction
Consider a hypothetical example. Assume a pump draws an average of 0.35 A while active, runs for 20 minutes per session, and needs to support four sessions per day for two days between charges.
Total active time: 20 minutes × 4 sessions × 2 days = 160 minutes, or about 2.67 hours
Estimated active-use demand: 0.35 A × 2.67 hours = about 0.93 Ah
If the design assumes 80% of nominal capacity is usable under the test conditions: 0.93 Ah ÷ 0.80 = about 1.17 Ah
This produces an initial estimate of roughly 1.2 Ah. It is not a product recommendation or a guaranteed runtime. Replace the example values with measured current, actual use patterns and a usable-capacity factor supported by testing. Standby consumption, temperature, battery aging, converter losses and device cutoffs may all affect the final result.
When a pump has multiple operating modes or a voltage converter, calculate energy for each mode instead of extending a single current reading across the whole cycle. Use our lithium battery pack runtime calculation guide to compare current-based and watt-hour estimates.
Average current is useful for estimating energy demand, but it does not prove that the battery can start the motor reliably. A motor may draw a brief current spike at startup or during a change in operating conditions. If pack voltage drops below the pump’s minimum input voltage, the device may reset or stop even when the battery still has usable capacity.
Ask the device team to measure:
Startup current and event duration
Peak current in each operating mode
Minimum battery voltage during the peak
Voltage recovery after the load changes
Connector and cable temperature under representative use
Whether the protection circuit activates
Use those measurements to check the cell, protection circuit, wiring and connector together. A pack may have enough nominal capacity but still be unsuitable if it cannot supply the required current without excessive voltage sag or unwanted protection cutoff.
Portable and wearable pump designs leave limited room for the battery. Measure the battery cavity in the assembled enclosure, allowing for insulation, wires, connectors, mechanical retention and assembly tolerances. A cell’s dimensions alone do not represent the full size of the finished pack.
Consider where the battery sits as well as how it fits. Its position affects balance and handling, particularly in a wearable product. Check that the pack and its wiring do not obstruct the pump mechanism, control board, sensors, service access or other parts that need clearance.
A flat pouch cell may suit some compact layouts, but the right format depends on the device structure and electrical requirements. For space-constrained designs, we can assess a thin lithium polymer battery configuration against the available dimensions, voltage, capacity, connector and protection needs. Confirm the final fit in the intended enclosure before locking the design.
Noise constraints should be evaluated at the device level. A battery with a different capacity does not automatically make a breast pump quieter.
The battery assembly can still affect mechanical behavior. If the pack is loose, or a cable or connector can contact the housing, movement may create rattles. Pack position and retention can also influence how vibration travels through the enclosure. During integration, check that the battery mount does not interfere with the pump’s intended isolation features or internal clearances.
Test the complete device across representative suction modes and operating conditions. Listen for contact noise and inspect the battery, wiring and enclosure for movement. Where acoustic measurements are part of the product requirements, use a defined test setup and compare the same conditions across prototypes.
The pump motor, valves, airflow path, housing and control settings remain key parts of the acoustic system. Battery design supports mechanical integration, but it cannot establish the pump’s final sound performance by itself.
The battery pack and charging system need to be designed together. Confirm the cell chemistry and charge-voltage limit before setting charger parameters, protection thresholds and temperature monitoring. A high-voltage cell, for example, requires a compatible charging system; a charger intended for a different voltage limit should not be assumed suitable.
Define the following before selecting the pack:
Charge input and charge-voltage limits
Target charge current and recharge time
Relevant overcharge, over-discharge, overcurrent and short-circuit protections
Temperature sensing and charging behavior within the intended operating range
Connector type, polarity, pinout and wire routing
Whether the pack is removable, serviceable or permanently integrated
If the electronics and charging system support a higher-voltage cell, review our high-voltage LiPo battery options as one possible direction. The cell, charger and device must be confirmed as a compatible system before selection.
Bench capacity checks are useful, but the pump may behave differently once the battery is installed. The motor, converter, wiring, enclosure and firmware can affect current demand, voltage behavior and temperature.
Test the battery in the device configuration intended for production. A practical validation plan can include:
Runtime under representative session profiles and suction modes
Startup and peak-current performance
Voltage sag, low-voltage cutoff and recovery behavior
Charge time and temperature during charging
Temperature during repeated operating cycles
Connector retention, cable strain relief and pack movement
Acoustic and vibration checks with the pack installed
Runtime at the defined end-of-life condition, if required
Use our battery pack testing checklist to organize checks for capacity, discharge, peak current, temperature, connectors and finished-device operation. Set the final test plan to match the pump’s design and intended market.
Before freezing the battery design, define the target market and product requirements with the appropriate compliance team. The documentation and testing needed depend on the finished device, battery configuration and markets where the product will be sold.
A general cell or pack description does not establish suitability for a specific healthcare application. Request documentation that applies to the proposed battery configuration, and have the finished-device team review the requirements for the complete product.
Start with average battery-side current and total active time between charges. Divide estimated demand by the usable fraction of nominal capacity, then validate the estimate against the pump’s real operating profile. Include standby load, converter losses and battery aging where relevant.
A brief startup peak may have little effect on total energy use, but it can cause voltage sag or trigger protection. Check peak current, event duration and minimum system voltage alongside capacity.
Not by itself. Battery size and mounting can affect packaging and vibration transmission, but overall sound also depends on the motor, valves, airflow path, enclosure and control settings. Evaluate acoustic performance with the complete device.
Only if the pump’s electronics, charger and protection design are compatible with that cell’s charge-voltage limits and operating requirements. Confirm the complete system design before choosing the pack.
Provide the available battery-space dimensions, target runtime, measured operating and peak currents, voltage requirements, charging method, connector details, temperature conditions and mechanical constraints. These details help determine whether a standard model or a custom configuration is worth evaluating.
A suitable portable breast pump battery starts with the pump’s measured use profile and motor load. From there, OEM teams can estimate capacity, confirm startup-current capability, check fit and weight, coordinate the charger and protection system, and validate the finished assembly.
Noise and vibration belong in device-level testing. Battery placement and retention matter to mechanical integration, while the complete pump determines acoustic performance.
