A pet tracker has to fit securely on a collar while carrying GPS, wireless, sensing and charging hardware in a compact enclosure. Its battery affects more than how long the tracker runs: its dimensions and position influence product thickness, weight balance, housing layout, assembly and charging access.
For OEM teams, the battery decision should therefore happen alongside the mechanical and electrical design. Selecting a cell after the enclosure is fixed can leave too little room for wiring, protection components or the charging interface. It can also create avoidable compromises in comfort and serviceability.
This guide focuses on battery integration for rechargeable, collar-mounted trackers. It covers enclosure fit, charging options, protection and validation. It does not estimate runtime from current consumption; that requires a separate load-profile analysis.
Start with the tracker’s usable battery cavity and charging concept, then select a cell that fits the complete assembly—not just the empty CAD volume. Include clearance for insulation, wires, connectors, protection components and manufacturing tolerances. Evaluate the pack with the finished enclosure, collar attachment and charging method in place.
Before design freeze, confirm:
Battery length, width, thickness and wire exit direction
Tracker mass and balance when mounted on the collar
Charging interface and enclosure sealing approach
Cell voltage, capacity, operating current and protection needs
Sample fit, charging behavior and electrical performance under representative operating modes

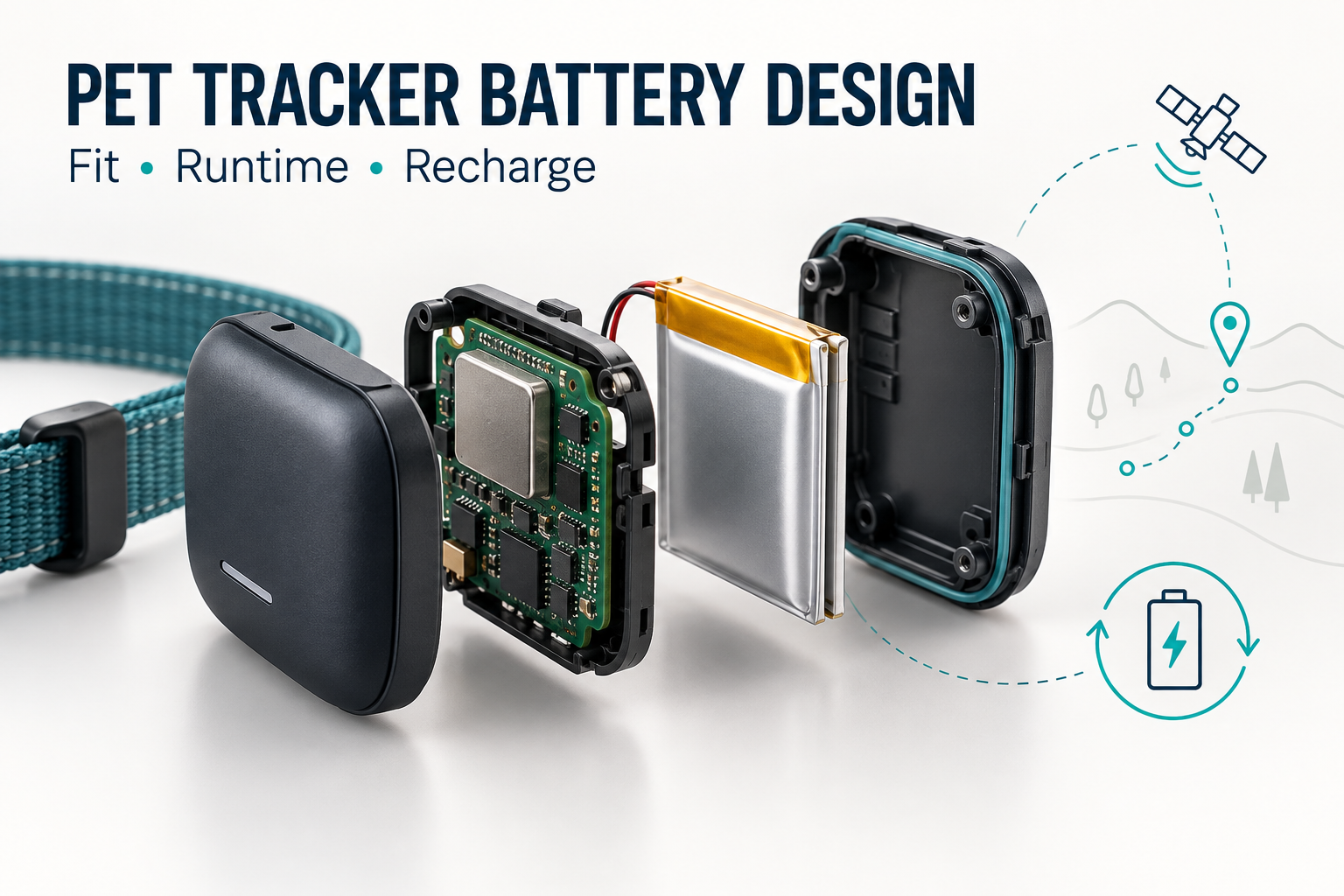

Pet trackers can use different mechanical arrangements: a compact module attached to a collar, a device integrated into a collar body, or a removable tracker that clips into a separate mount. Each arrangement creates different battery constraints.
A self-contained module may need the battery, circuit board, antenna and charging interface within one small housing. A collar-integrated layout may distribute components along a longer but thinner profile. A removable device may offer easier access for charging or replacement, while adding a retention mechanism and electrical contacts to the design.
These are system-level choices. The battery supplier needs the intended enclosure concept, available internal space and charging approach to assess fit accurately. A battery drawing by itself is rarely enough to confirm integration.
Measure the space available after accounting for the PCB, antenna keep-out areas, sensor locations, housing ribs, fasteners and charging hardware. Note the maximum permitted length, width and thickness, as well as the direction in which the battery wires need to exit.
Do not treat the inside dimensions of an empty shell as the battery dimensions. The final assembly needs room for insulation, wiring, adhesive or mechanical retention, and production tolerances. The battery also should not be compressed by the housing or forced against sharp features.
If the enclosure is curved or irregular, share its CAD model or a dimensioned drawing early. This helps the engineering teams assess whether a standard pouch cell fits or whether a custom shape would use the available space more effectively. For compact devices, high-density lithium polymer battery options can be evaluated against the actual dimensions, voltage and connection requirements.
Battery placement should be reviewed alongside the antenna, GNSS receiver, cellular modem, sensors and charging contacts. Their location can affect board layout, wiring paths and enclosure structure. The engineering team should confirm clearances and electrical behavior in the assembled tracker rather than assuming that the battery can occupy any open-looking area.
Leave a defined route for the battery leads. A wire exit that crosses a screw boss, hinge or enclosure seam can complicate assembly and may be damaged during closure. Make the outlet direction and connector location part of the battery drawing.
A larger battery may support a longer target operating period, but it also occupies more space and adds mass. On a collar-mounted device, the location of that mass matters as well as the total weight. A tracker that shifts, rotates or hangs away from the collar may be less comfortable and can put extra stress on its clip or strap.
Evaluate the tracker as a worn assembly:
Measure the total device mass, including housing, battery, PCB and attachment.
Check whether the module stays in its intended position during movement.
Review thickness and protrusions where the product contacts the collar or animal.
Confirm that the collar attachment can retain the device under expected movement and handling.
Compare alternative battery placements before fixing the enclosure geometry.
A curved or elongated battery may help match an enclosure’s internal form, but a custom outline should solve a defined packaging problem. It still needs appropriate clearances, protection and sample validation.
The charging method affects the enclosure, sealing, connector design and user routine. Consider it before the battery dimensions and housing are finalized.
Charging approach | Integration points to review |
|---|---|
Exposed charging port | Port position, plug access, cable clearance and how the opening is protected in the finished enclosure |
External contact pins | Contact alignment, retention force, corrosion exposure and the cleaning or maintenance routine |
Removable battery or module | Latch design, electrical contacts, replacement handling and whether the user can reassemble it correctly |
Wireless charging | Coil area, alignment, added internal volume, charging electronics and heat during charging |
No option is automatically best for every tracker. A port may be straightforward to access but creates an opening in the housing. External contacts avoid a conventional port opening but need reliable alignment and suitable environmental protection. A removable module may simplify charging logistics, while adding mechanical and electrical interfaces that must be validated.
The finished tracker’s enclosure and charging assembly should be evaluated together. Do not infer a water-resistance level from the battery alone; that depends on the complete product construction and its testing.
The battery’s nominal voltage and voltage range must suit the tracker’s power architecture and charging circuit. Confirm the device’s operating voltage limits, charge-control requirements, peak load and cutoff behavior before selecting a model. A higher-voltage cell should not be treated as a drop-in replacement without reviewing the charger, fuel gauge and protection thresholds.
Also specify the required battery protection and temperature sensing. Depending on the product design, the project may need a protection circuit, a temperature sensor, a particular connector or wire length. These choices affect package space and assembly, so include them in the early battery brief.
For projects evaluating a custom pack, share the tracker’s voltage, target capacity, available dimensions, working and peak current, charging method, connector and protection requirements. ZERNE’s GPS tracker battery solutions include tracker applications, while pet GPS tracker battery case study provides relevant application context.
A battery that fits a drawing may still create assembly or performance issues in the complete product. Build samples with the intended enclosure, collar attachment, charging interface and production-representative wiring. Then check both mechanical integration and electrical behavior.
Confirm that the battery sits in the intended position without being pinched, bent or pressed against sharp edges. Check wire routing, connector access, insulation coverage and closure of the enclosure. Repeat assembly checks across multiple samples to catch tolerance problems that a single prototype may not reveal.
Inspect how the tracker attaches to the collar and whether charging access remains practical with the module mounted or removed, depending on the design. If the enclosure is sealed after assembly, confirm that the battery and charging interface can be installed without damaging the seal or trapping wires.
Measure the device under its intended operating modes, including sleep, routine location updates and more frequent tracking. Record average and peak current where possible, and observe whether voltage remains within the system’s operating limits during wireless transmissions and other high-load events.
Test the complete charging path using the specified charger or charging accessory. Check charging behavior, temperature and connector stability under the planned conditions. Repeat relevant checks with the final firmware settings, because the tracking schedule affects the electrical load.
Define environmental tests from the product’s actual use conditions and target-market requirements. Consider temperature exposure, vibration, drops, collar movement and repeated charging connections where relevant. Test the assembled tracker, not only the loose cell, and document the test conditions and acceptance criteria before evaluation begins.
Do not use a swollen, damaged or otherwise abnormal lithium battery in a prototype. Stop testing and follow the project’s established battery handling and replacement procedures.
Before requesting a battery recommendation or sample, prepare the following:
Tracker enclosure drawing or 3D model with available battery space
Battery voltage and capacity targets
Average and peak current, if measured
Tracking modes and intended operating schedule
Charging method and charger requirements
Connector type, wire length and wire exit direction
Protection circuit and temperature-sensing requirements
Total tracker weight target and collar attachment details
Operating environment and required validation conditions
Target quantity and project timing
A complete brief helps the battery and device teams identify fit or interface issues before tooling is finalized. If some electrical values are not yet available, mark them as open items and plan to measure them during prototype development.
The battery should be evaluated while the enclosure is still being designed. That gives the team room to adjust the cavity, wire route, charging access and component layout before the housing is fixed.
It depends on the usable space and the internal geometry. Compare standard cell dimensions with the complete cavity, including clearances and wire routing. If the shape wastes significant space, discuss a custom battery outline and validate it with samples.
There is no universal choice. Ports, external contacts, removable modules and wireless charging each create different enclosure, access and validation requirements. Select the approach that fits the product’s sealing strategy, charging routine and mechanical design.
No. Water resistance is a property of the complete assembled product and must be evaluated through the enclosure, seams, ports, contacts and manufacturing process. Validate the finished tracker to the product’s defined requirements.
Provide the available battery space, voltage and capacity targets, current profile if available, charging method, connector and wire requirements, protection needs, weight target and operating environment. Enclosure drawings or a 3D model help assess mechanical fit.
Pet tracker battery design is an integration task involving the cell, enclosure, collar attachment, charging interface and device electronics. Planning these elements together gives OEM teams a clearer way to balance package size, comfort, charging access and electrical requirements.
Before design freeze, check the full battery cavity, define the charging architecture, confirm voltage and protection needs, and test the battery in a representative tracker assembly.
