Battery Runtime for IoT Sensors: A Duty-Cycle Method Using Sleep and Active Current

IoT sensor battery life is often estimated by looking at the battery capacity and the device’s standby current.

That approach can be misleading.

A battery-powered IoT sensor may remain in sleep mode for long periods, then wake to measure temperature, pressure, motion, humidity or another physical condition. It may also process the reading, store data, activate an indicator and transmit information through a wireless connection.

Each operating state consumes a different amount of current.

The final runtime depends on:

• sleep current;

• sensing frequency;

• sensing duration;

• processor activity;

• wireless transmission time;

• network retries;

• alarm events;

• battery voltage;

• converter efficiency;

• temperature;

• low-voltage cutoff;

• usable battery capacity.

For OEM teams, a duty-cycle calculation provides a more realistic starting point than using only the maximum current or sleep current. The result should then be verified with the final sensor, firmware, communication system and battery pack.

Quick Answer: How Do You Calculate IoT Sensor Battery Runtime?

To calculate IoT sensor battery runtime:

1. Define the sensor’s operating states.

2. Measure the current and duration of each state.

3. Record how often the sensor wakes during one day or one complete operating cycle.

4. Include sensing, processing, wireless transmission and retry events.

5. Calculate daily charge consumption or average battery current.

6. Adjust nominal capacity for cutoff voltage, temperature, aging and system efficiency.

7. Compare usable capacity with the calculated daily consumption.

8. Validate the estimate using the finished IoT device and battery.

The basic duty-cycle formula is:

Iavg = Σ(Ii × ti) ÷ T

Where:

• Iavg is the average battery current;

• Ii is the current of operating state i;

• ti is the time spent in that state;

• T is the complete cycle duration.

For a daily calculation:

Daily Consumption (mAh)
= Sleep Consumption
+ Sensing Consumption
+ Processing Consumption
+ Wireless Transmission Consumption
+ Other Event Consumption

The result is an engineering estimate. Field runtime may change when the sensor operates at a different temperature, communication distance, reporting interval or signal condition.

1. Why IoT Sensor Runtime Requires a Duty-Cycle Method

Many IoT sensors spend most of their time in a low-power state. This makes sleep current important, but it does not make sleep current the only relevant value.

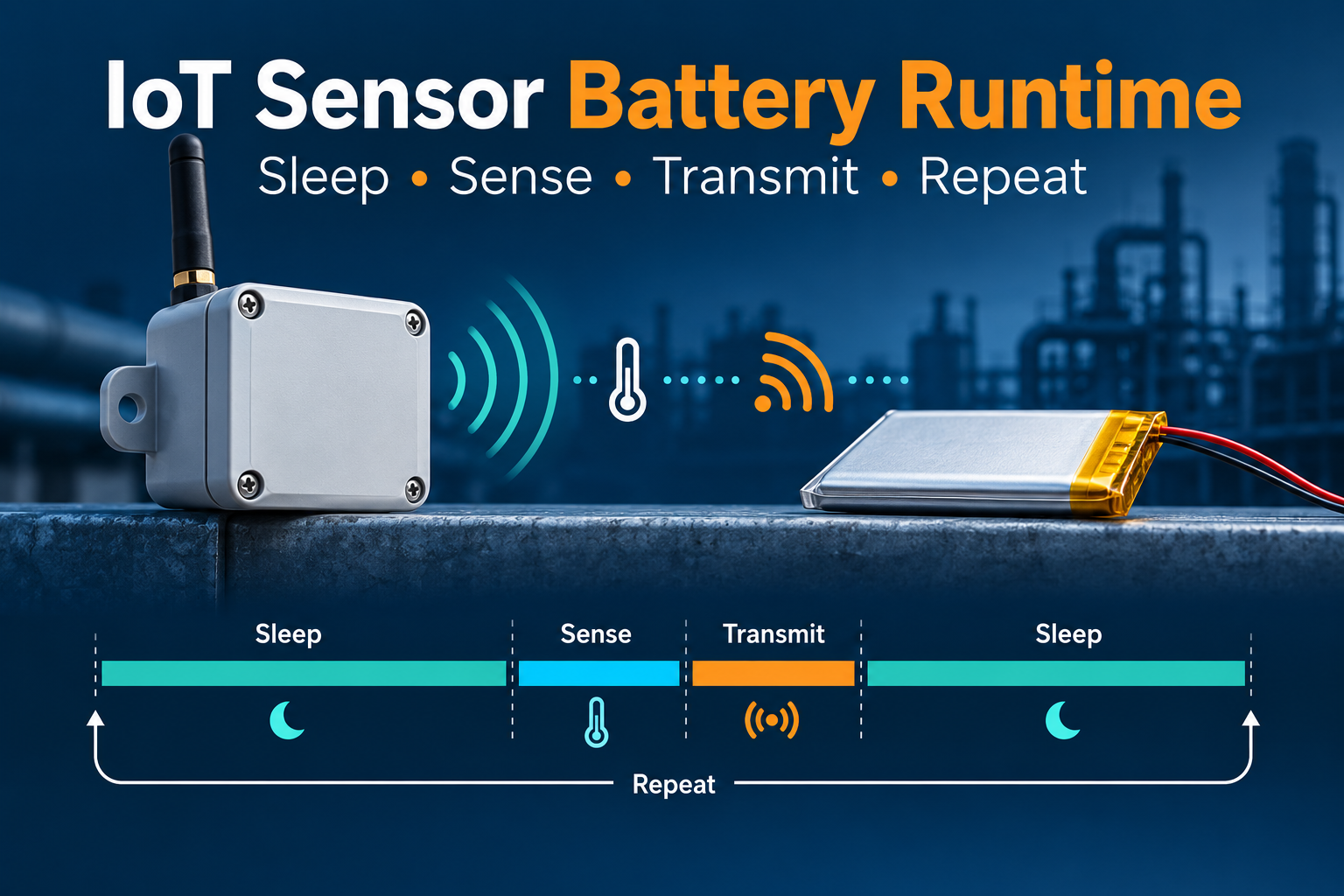

A typical operating cycle may include:

• deep sleep;

• timer wake-up;

• sensor activation;

• analog measurement;

• data conversion;

• processor calculation;

• data storage;

• wireless transmission;

• acknowledgement or retry;

• alarm handling;

• return to sleep.

The time spent in each state may be very different.

For example, a sensor may sleep for several minutes, measure for a few milliseconds, process data for a short period and transmit once every hour. Another device may measure every second and transmit only when the measured value crosses a threshold.

These two devices may use the same battery capacity but have very different runtimes.

The most important question is not simply:

How much current does the IoT sensor use?

It is:

How much charge does the IoT sensor consume during one complete operating cycle?

2. Define the IoT Sensor’s Operating Profile

Before calculating battery runtime, define how the sensor will operate in the finished product.

Important parameters include:

The profile should describe actual product behavior rather than only the component’s theoretical operating modes.

For example, “wireless transmission every hour” may not describe the complete load if the device also:

• searches for a network;

• wakes the processor before transmission;

• waits for an acknowledgement;

• retries a failed packet;

• returns to standby after a delay.

3. Measure Current for Each Operating State

Use the finished sensor design to measure current whenever possible.

Measure at least:

• sleep current;

• sensor activation current;

• sensor measurement current;

• processor current;

• memory or storage current;

• wireless transmission current;

• network search current;

• retry current;

• indicator or alarm current;

• battery-side current.

The current should be measured with the intended firmware and communication settings. A development board or evaluation module may consume more or less power than the final product.

Measure both current and duration.

A wireless module may create a short current pulse that is much higher than its average current. The pulse affects:

• charge consumption;

• voltage sag;

• converter performance;

• cable voltage drop;

• protection-board response;

• battery temperature.

For runtime estimation, calculate the charge associated with the pulse:

Charge (mAh) = Current (mA) × Time (hours)

For example, a 100 mA transmission lasting 2 seconds consumes:

100 mA × 2 ÷ 3600
≈ 0.056 mAh

The same event repeated 1,000 times would consume approximately:

0.056 mAh × 1,000
≈ 56 mAh

This is why a short wireless event may become significant when repeated frequently.

4. Calculate Average Current from the Duty Cycle

The average current is calculated by weighting each operating state according to the time spent in that state.

Iavg = Σ(Ii × ti) ÷ T

An equivalent daily formula is:

Daily Consumption (mAh)
= Isleep × Tsleep
+ Isense × Tsense
+ Iprocess × Tprocess
+ Itx × Ttx
+ Ievent × Tevent

All durations must use the same time unit.

If current is expressed in milliamps and duration is expressed in hours, the result is in milliamp-hours.

The duty-cycle method is especially useful when:

• sleep current is very low;

• active current is much higher;

• measurement frequency changes by operating mode;

• wireless transmission occurs periodically;

• alarm events create additional activity;

• the device uses several different sensors.

5. Illustrative IoT Sensor Runtime Example

The following example explains the calculation method only. The values are assumptions and do not represent a specific ZERNE battery or IoT sensor.

Assume an IoT sensor operates through four non-overlapping states during a 24-hour period:

Assume the battery has a nominal capacity of 1,500 mAh.

If the estimated usable-capacity factor is 0.80:

Usable Capacity
= 1,500 mAh × 0.80
= 1,200 mAh

Estimated runtime:

Runtime
= 1,200 mAh ÷ 25.3 mAh/day
≈ 47.4 days

The estimated runtime is therefore approximately 47 days under the defined assumptions.

The actual runtime may be shorter if:

• wireless retries occur frequently;

• the sensor transmits more often;

• the device operates in cold conditions;

• the battery reaches its cutoff voltage early;

• the battery has aged;

• the device enters an alarm mode;

• the converter loses more energy than expected.

If two states overlap, they should not be added twice. For example, if processing occurs during sensor measurement, combine the states or use the measured total current for that period.

6. Separate Periodic and Event-Driven Loads

IoT sensors often have two types of energy consumption.

Periodic Loads

Periodic loads occur at a predictable interval.

Examples include:

• scheduled sensor readings;

• hourly data transmission;

• daily status reports;

• regular memory writes;

• scheduled synchronization.

These loads can be included in the normal duty-cycle calculation.

Event-Driven Loads

Event-driven loads occur only after a specific condition.

Examples include:

• motion detection;

• temperature alarm;

• vibration event;

• door opening;

• pressure threshold;

• tamper detection;

• emergency transmission.

These events should be calculated separately because their frequency may vary.

A practical design approach is to create at least three operating profiles:

This produces a more useful runtime range than a single average value.

7. Account for Wireless Transmission Energy

Wireless communication may become the largest active load in a low-power IoT sensor.

Transmission energy depends on:

• communication technology;

• transmit power;

• distance;

• signal quality;

• payload size;

• connection setup time;

• acknowledgement method;

• retry count;

• antenna performance;

• network availability;

• firmware timing.

A sensor that transmits one short packet per day may have a very different runtime from a sensor that sends data every minute.

Measure the complete communication event, including:

1. Processor wake-up.

2. Radio or modem activation.

3. Network connection.

4. Data transmission.

5. Acknowledgement.

6. Retry or failure handling.

7. Return to sleep.

Do not estimate runtime from the transmit current alone if the device spends additional time searching, connecting or waiting for a response.

8. Include Converter and Power-Management Losses

The current measured at the sensor circuit may not equal the current drawn from the battery.

A battery-powered IoT product may include:

• a buck converter;

• a boost converter;

• a voltage regulator;

• a power-management IC;

• a charging circuit;

• protection components;

• a sensor supply rail;

• a communication-module supply rail.

When the device voltage differs from the battery voltage, use an energy-based calculation:

Usable Energy (Wh)
≈ Nominal Voltage × Capacity (Ah)
× Usable-Capacity Factor
× System Efficiency

For a variable-load product:

Average Power
= Total Energy Used During the Cycle ÷ Cycle Duration

The existing lithium battery pack runtime calculation covers the general relationship between battery energy, device power, usable capacity and system efficiency. This IoT-specific method adds the detailed sensor duty cycle needed for sleep, measurement, processing and wireless events.

9. Estimate Usable Battery Capacity

Nominal capacity should not be treated as fully usable capacity in every application.

Usable capacity may be reduced by:

• discharge current;

• device cutoff voltage;

• battery protection settings;

• converter operating range;

• low temperature;

• cell aging;

• internal resistance;

• required reserve;

• battery-to-battery variation.

The usable-capacity factor should be based on the actual application and test conditions. It is not a universal number.

For early design work, an engineering assumption may be used. Before production approval, replace the assumption with measured results from the selected battery and final device.

10. Consider Temperature and Installation Conditions

Temperature can change both the battery and the IoT device’s operating behavior.

Low temperature may:

• reduce available capacity;

• increase internal resistance;

• increase voltage sag;

• affect wireless transmission;

• cause earlier device cutoff.

High temperature may:

• increase battery aging;

• raise enclosure temperature;

• affect sensor readings;

• change converter conditions;

• shorten long-term service life.

The final test should represent the installation environment.

For example, a sensor installed:

• outdoors;

• inside a metal enclosure;

• near a heating system;

• inside a refrigerated space;

• on industrial equipment;

• inside a sealed smart-home device

may experience different thermal and communication conditions from a laboratory prototype.

11. Select the Battery for the Complete IoT Device

Battery selection should include more than capacity.

For OEM IoT device battery applications, review:

• nominal voltage;

• maximum charge voltage;

• capacity;

• continuous current;

• wireless peak current;

• battery dimensions;

• connector and cable length;

• PCM or BMS requirements;

• temperature-sensor requirements;

• charging method;

• enclosure clearance;

• insulation and retention;

• expected operating life;

• service or replacement requirements.

The battery must fit the complete installed space. Include the battery cell, protection board, insulation, wires, connector and mechanical fixtures when checking the enclosure.

A larger battery may provide more capacity but may also create problems with:

• enclosure size;

• weight;

• cable routing;

• antenna placement;

• sensor accuracy;

• thermal dissipation;

• assembly access.

12. Validate the Runtime in the Finished Sensor

A calculation is useful for design planning, but the final runtime should be validated with the actual product.

A practical validation process may include:

1. Charge the selected battery using the intended charger.

2. Install it in the production-intent sensor.

3. Use the final firmware.

4. Apply the intended sensing interval.

5. Apply the intended communication interval.

6. Test normal and high-activity modes.

7. Monitor battery voltage and current.

8. Record wireless retries and connection time.

9. Test at relevant temperatures.

10. Confirm the device’s low-voltage shutdown behavior.

Record:

• firmware version;

• battery model;

• battery capacity;

• test temperature;

• sleep current;

• sensing current;

• processing time;

• transmission duration;

• retry count;

• battery voltage;

• shutdown voltage;

• measured runtime.

The runtime should be tested with more than one battery sample when the project is entering production. This helps identify variation between batteries and confirms that the approved design is repeatable.

13. Information to Provide to a Battery Manufacturer

A battery manufacturer can evaluate the application more accurately when the IoT device requirements are complete.

Provide:

• device operating voltage;

• target runtime;

• sleep current;

• sensing current;

• sensing frequency;

• processor active current;

• wireless technology;

• transmission interval;

• transmission duration;

• peak current;

• network conditions;

• battery-compartment dimensions;

• maximum weight;

• connector requirements;

• charging method;

• temperature range;

• expected production quantity;

• sample-validation requirements.

If measured current data is unavailable, provide the sensor, processor, communication module and expected firmware cycle. The battery supplier may still need to validate the finished device before confirming the final capacity.

14. Common IoT Sensor Runtime Calculation Mistakes

Using Sleep Current Alone

Sleep current may be low, but frequent sensing and wireless transmission can dominate total consumption.

Using the Maximum Current as the Average Current

Maximum current is not normally present throughout the entire operating cycle. Use current together with duration.

Ignoring Wireless Connection Time

The radio may consume energy while connecting, waiting for acknowledgement or retrying transmission.

Counting Overlapping States Twice

If processing occurs during sensing, do not add both states as separate full-duration loads without checking the timing.

Ignoring Event-Driven Activity

Motion, alarms and threshold events may change the runtime significantly.

Measuring Only the Device Rail

A converter may cause the battery-side current to differ from the current measured at the sensor or radio rail.

Treating Nominal Capacity as Fully Usable

Cutoff voltage, temperature, aging and reserve requirements reduce usable capacity.

Testing Only at Room Temperature

The final device may operate outdoors, inside an enclosure or in a temperature-controlled environment.

Choosing Only by mAh

Voltage, peak current, dimensions, connector, charging and protection requirements must also match the product.

FAQ

How Do You Calculate IoT Sensor Battery Runtime?

Define the sensor’s sleep, measurement, processing and wireless states. Multiply the current of each state by its duration, add the charge consumed during the cycle and compare the result with usable battery capacity.

What Is IoT Sensor Duty-Cycle Calculation?

Duty-cycle calculation estimates runtime by considering how long the device remains in each operating state. It is useful for devices that alternate between low-power sleep and higher-current active events.

Does Sleep Current Have the Biggest Effect on IoT Battery Life?

Sleep current can have a major effect when the device remains asleep for long periods. However, frequent wireless transmissions, alarms or long measurement periods may consume more total energy.

How Do Wireless Transmissions Affect IoT Sensor Runtime?

Wireless transmissions consume energy during radio startup, connection, data transfer, acknowledgement and possible retries. The effect depends on transmission frequency, signal quality, payload and communication settings.

Should IoT Battery Runtime Be Calculated in mAh or Wh?

The mAh method is useful when battery voltage and current remain suitable for direct comparison. The Wh method is generally better when the device uses a voltage converter or the battery voltage changes significantly during discharge.

How Can OEMs Validate an IoT Sensor Battery Runtime Estimate?

Use the final sensor, battery, firmware and communication settings. Test normal, high-activity and alarm modes at relevant temperatures, while recording current, voltage, transmission events and shutdown behavior.

Conclusion

IoT sensor battery runtime depends on the complete duty cycle.

Sleep current is important, but sensing, processing, wireless transmission, retries and event-driven activity can also affect daily consumption. The most useful calculation method assigns a current and duration to each operating state, then compares total daily consumption with usable battery capacity.

The estimate should include converter efficiency, cutoff voltage, temperature, aging and reserve capacity. Before production approval, validate the result using the final IoT sensor, battery, firmware, enclosure and communication conditions.

Need a lithium battery designed for a wireless sensor, smart-home device, monitoring system or other IoT product?

Contact ZERNE for custom lithium battery support. Share your voltage, runtime target, duty cycle, wireless peak current, enclosure dimensions, connector and operating temperature so the battery can be matched to your device.
