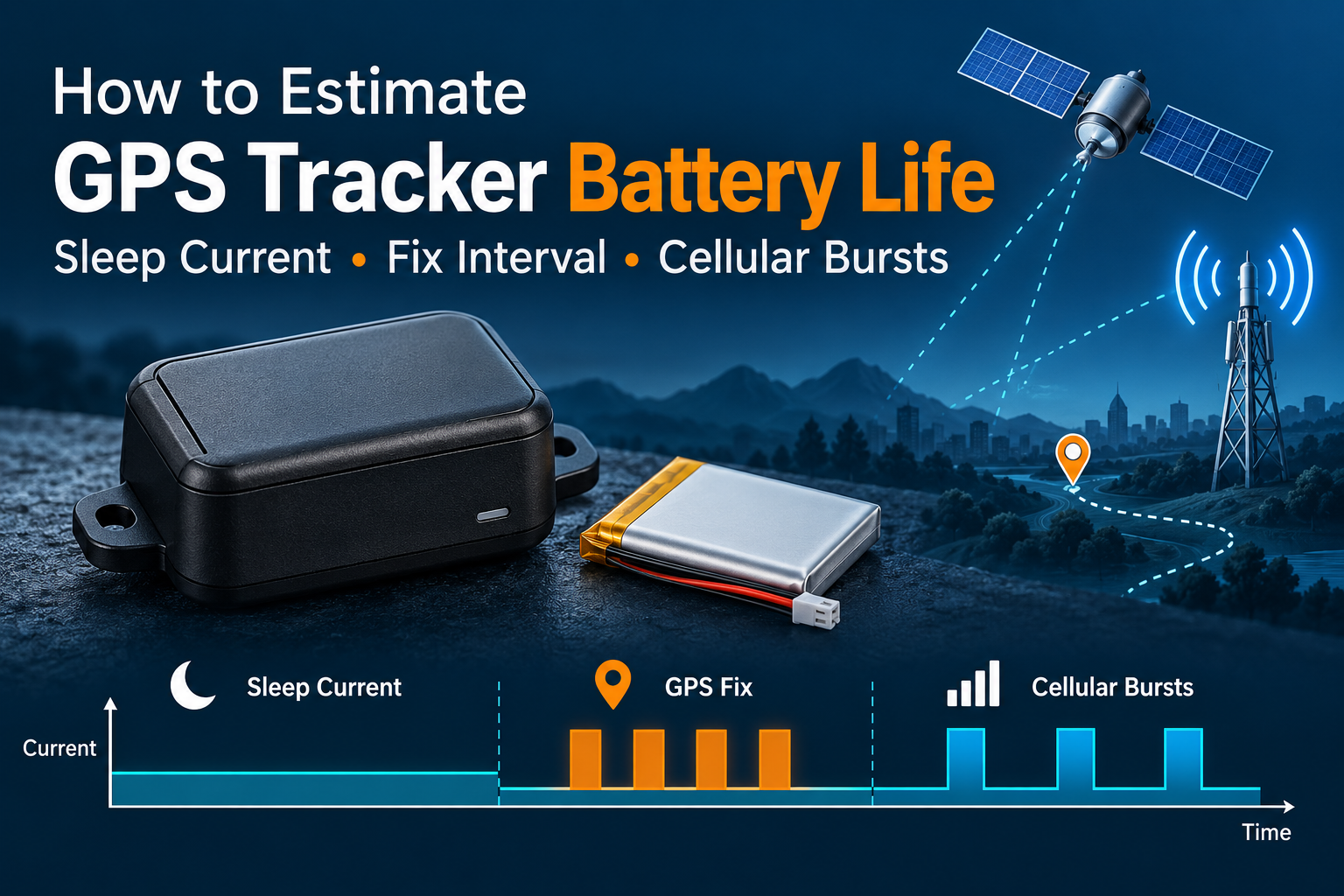

How to Estimate GPS Tracker Battery Life from Sleep Current, Fix Interval and Cellular Bursts

Estimating GPS tracker battery life requires more than dividing battery capacity by one average current value.

A GPS tracker may spend most of its time in low-power sleep mode, then briefly activate the GNSS receiver, wake the processor, acquire a location fix and transmit data through a cellular network. These events can have very different current levels and durations.

The tracker may also consume more energy when:

• GPS signals are weak;

• the cellular network is unavailable;

• the modem repeats a transmission;

• the device moves frequently;

• the reporting interval becomes shorter;

• the battery operates in cold conditions;

• the system reaches its low-voltage cutoff earlier than expected.

For this reason, a reliable GPS tracker battery life calculation should use the device’s operating cycle rather than relying only on nominal battery capacity.

The method in this article is intended for OEM engineers, product designers and purchasing teams evaluating batteries for asset trackers, vehicle trackers, personal trackers, wildlife trackers and other connected GPS devices.

Quick Answer: How Do You Estimate GPS Tracker Battery Life?

To estimate GPS tracker battery life:

1. Define the tracker’s operating states.

2. Measure the current and duration of each state.

3. Record the GPS fix interval and cellular reporting interval separately.

4. Include cellular transmission bursts, network retries and modem startup events.

5. Calculate the weighted average battery current or daily charge consumption.

6. Adjust nominal capacity for cutoff voltage, temperature, aging and system efficiency.

7. Compare usable battery capacity with daily energy consumption.

8. Validate the estimate using the actual tracker, network, firmware and battery.

A useful starting formula is:

Average Current = Total Charge Consumed During One Cycle ÷ Cycle Duration

For a repeated 24-hour operating cycle:

Daily Consumption (mAh)
= Sleep Consumption
+ GPS Fix Consumption
+ Cellular Transmission Consumption
+ Other Active-State Consumption

The final result is an estimate. Actual runtime must be confirmed under realistic location, network, temperature and usage conditions.

1. Why GPS Tracker Runtime Is Different from Stable-Load Runtime

A simple electronic device may draw a relatively stable current. A GPS tracker normally operates through multiple states.

Typical states include:

• deep sleep;

• sensor monitoring;

• processor wake-up;

• GNSS or GPS acquisition;

• location calculation;

• cellular network registration;

• data transmission;

• transmission retry;

• idle or standby;

• low-battery operation.

Each state contributes a different amount of charge consumption.

Sleep current may be small, but it can continue for thousands of hours during the product’s service life. GPS acquisition may draw substantially more current for a short period. Cellular transmission may create short, high-current bursts, especially when the network signal is weak or the modem must search for a network.

A GPS tracker battery life calculation should therefore consider both:

• how much current the device uses; and

• how long the device remains in each operating state.

2. Define the Tracker’s Operating Cycle

Before calculating runtime, define what the tracker does during a normal operating period.

Important parameters include:

The GPS fix interval and cellular report interval are not always the same.

For example, a tracker may acquire a location every five minutes but transmit only once every thirty minutes. Another device may transmit immediately after every fix. These two systems can have very different battery consumption even if their batteries have the same capacity.

The operating cycle should reflect the intended product mode, such as:

• stationary asset tracking;

• moving vehicle tracking;

• personal safety tracking;

• wildlife research;

• container tracking;

• periodic logistics monitoring.

3. Measure Current for Each Operating State

The most useful data comes from measuring the finished tracker rather than relying only on component-level datasheets.

At minimum, measure:

• sleep current;

• processor wake-up current;

• GPS acquisition current;

• GPS fix duration;

• cellular registration current;

• cellular transmission current;

• transmission duration;

• retry current and duration;

• sensor current;

• charging-system losses;

• battery-side current.

Use battery-side measurements whenever possible. A modem or GNSS module may operate at a regulated voltage that differs from the battery voltage. Measuring only the current on a regulated system rail may understate the current drawn from the battery.

Peak current should also be interpreted carefully. A short 1.5 A cellular pulse does not mean that the tracker continuously consumes 1.5 A. Its effect depends on:

• pulse duration;

• number of pulses;

• battery internal resistance;

• cable resistance;

• converter efficiency;

• BMS or protection-board limits;

• battery voltage during the event.

For runtime calculations, record both current and time. For electrical design, also check whether the battery can support the peak current without excessive voltage sag or protection shutdown.

4. Calculate Weighted Average Current

The basic duty-cycle formula is:

Iavg = Σ(Ii × ti) ÷ T

Where:

• Iavg is the average battery current;

• Ii is the current in operating state i;

• ti is the time spent in that state;

• T is the total operating-cycle duration.

For a 24-hour tracker cycle, it is often easier to calculate the charge used by each state:

Daily Consumption (mAh)
= Current (mA) × Duration (hours)

Then add the consumption from every state.

Illustrative Example

The following example is for explaining the calculation method only. The current values are assumptions and are not specifications for a particular GPS tracker or ZERNE battery.

Assume a tracker operates as follows:

Assume the battery has a nominal capacity of 1,000 mAh. If only 80% of the nominal capacity is considered usable after accounting for cutoff voltage, temperature, aging and operating conditions:

Usable Capacity = 1,000 mAh × 0.80
                = 800 mAh

The estimated runtime is:

Runtime = 800 mAh ÷ 64.4 mAh/day
        ≈ 12.4 days

This result is a planning estimate, not a guaranteed field result. Poor cellular coverage, repeated GPS acquisition, cold temperatures, higher reporting frequency or battery aging could reduce the actual runtime.

5. Account for GPS Fix Interval

The GPS fix interval can strongly influence battery consumption.

A tracker that obtains one fix every hour may spend relatively little time in GNSS acquisition. A tracker that obtains one fix every minute may activate the receiver hundreds or thousands of times per day.

The calculation should include:

• number of GPS fixes per day;

• average current during acquisition;

• average time needed to obtain a fix;

• time required for a cold start or warm start;

• failed-fix behavior;

• additional processor activity;

• location calculation and storage time.

A weak sky view may increase acquisition time. Indoor operation, underground locations, dense urban environments, vehicle placement and antenna limitations can also affect the energy used per fix.

Use measured fix duration from the complete tracker design when possible. A module’s typical datasheet value may not represent the final product’s antenna, firmware, enclosure or installation conditions.

6. Account for Cellular Transmission Bursts

Cellular transmission can be a major source of variation in tracker runtime.

The device may use energy during:

• modem startup;

• network registration;

• network search;

• signal measurement;

• connection establishment;

• data transmission;

• acknowledgement;

• retransmission;

• connection release or standby.

A short report may consume little energy under strong network coverage but much more when the modem must search or retry.

The calculation should therefore distinguish between:

• normal transmission;

• network attachment;

• repeated transmission;

• emergency or alert transmission;

• operation in weak-signal areas.

If the tracker can transmit more frequently after motion detection, tamper detection or an alarm, the high-activity mode should be calculated separately.

For a product with multiple operating profiles, estimate at least:

• nominal stationary mode;

• normal movement mode;

• poor-signal mode;

• alert mode;

• cold-temperature mode.

This produces a more useful runtime range than one single number.

7. Convert Battery Capacity into Usable Capacity

The printed battery capacity is not always equal to the capacity available to the tracker.

Usable capacity can be affected by:

• discharge current;

• discharge cutoff voltage;

• battery temperature;

• cell aging;

• internal resistance;

• battery protection settings;

• converter efficiency;

• device minimum operating voltage;

• reserve capacity requirements.

For a battery-powered tracker using a regulated power system, an energy-based calculation may be more appropriate:

Usable Energy (Wh)
≈ Nominal Voltage × Capacity (Ah)
× Usable-Capacity Factor
× System Efficiency

The generic lithium battery pack runtime calculation provides the baseline relationship between battery energy, load power and runtime. The GPS tracker method adds the duty-cycle analysis needed for sleep, positioning and cellular events.

Do not apply a correction factor without understanding what it represents. A factor may include cutoff voltage, temperature and aging, but it should not hide an unknown or unmeasured load profile.

8. Apply Real-World Correction Factors

A laboratory calculation may assume an ideal and repeatable operating cycle. Field operation is usually more variable.

Review these factors before selecting a battery:

Network Coverage

Weak coverage may increase modem search and retransmission activity.

GPS Environment

Buildings, vehicles, underground spaces and dense urban areas may increase the time required to obtain a location fix.

Temperature

Low temperature can reduce available capacity and increase internal resistance. High temperature can accelerate aging and change the thermal conditions inside the enclosure.

Firmware Behavior

Firmware may change the device’s sleep timing, retry strategy, location interval or alert response.

Battery Aging

A battery that meets the runtime target when new may provide less usable capacity after repeated cycles or long storage.

Low-Voltage Cutoff

The device may stop operating before the cell reaches its theoretical minimum voltage. The battery pack, BMS and host-device cutoff should be evaluated together.

Activity Profile

A stationary asset tracker may consume much less energy than a tracker attached to a moving vehicle or person.

A useful design practice is to calculate a nominal case, a high-consumption case and a low-temperature or poor-signal case.

9. Estimate the Required Battery Capacity

Once daily consumption is known, the required battery capacity can be estimated from the target runtime.

A simple planning formula is:

Required Usable Capacity
≈ Daily Consumption × Target Runtime in Days × Reserve Factor

Then:

Required Nominal Capacity
≈ Required Usable Capacity ÷ Usable-Capacity Factor

For example, if a tracker uses 70 mAh per day and must operate for 30 days, the design should not simply select a 2,100 mAh battery. The calculation should also include:

• usable-capacity factor;

• temperature;

• aging;

• low-voltage cutoff;

• poor-signal operation;

• manufacturing tolerance;

• storage period;

• safety reserve.

Capacity is only one part of the battery selection. The battery must also meet the tracker’s:

• operating voltage;

• peak-current requirement;

• dimensions;

• weight limit;

• connector;

• charging method;

• temperature range;

• protection requirements.

10. Match the Battery to the GPS Tracker Design

Battery selection should be made together with the tracker’s electrical and mechanical design.

For OEM GPS tracker battery solutions, review:

• battery chemistry and cell format;

• nominal and maximum voltage;

• continuous and peak current;

• low-power sleep behavior;

• connector and cable length;

• PCM or BMS requirements;

• temperature sensor requirements;

• charging interface;

• enclosure clearance;

• antenna and modem placement;

• cushioning and retention;

• service or replacement requirements.

The battery compartment should include the complete installed envelope, including:

• cell or pouch;

• protection board;

• wires;

• connector;

• insulation;

• adhesive;

• foam;

• mechanical fixtures.

A battery that fits the empty enclosure may not fit after the connector, cable bend area and protection components are included.

11. Validate Runtime in the Actual Operating Environment

A calculated result should be verified with the final tracker and battery assembly.

A practical validation plan may include:

1. Charge the battery using the intended charging method.

2. Install the final battery in the production-intent tracker.

3. Record sleep, GPS and cellular current.

4. Test the intended fix and reporting interval.

5. Repeat the test under strong and weak network conditions.

6. Test normal movement and stationary operation.

7. Monitor battery voltage and temperature.

8. Record the device’s low-voltage cutoff behavior.

9. Repeat testing at relevant temperatures.

10. Compare measured runtime with the calculated estimate.

The test should record more than elapsed time. Useful data includes:

• battery voltage;

• battery current;

• GPS acquisition duration;

• cellular transmission duration;

• retry count;

• signal condition;

• temperature;

• location environment;

• firmware version;

• remaining state of charge;

• device shutdown condition.

A single test route or one laboratory sample does not represent every field condition. OEM qualification should define the required operating profiles and acceptance criteria before testing begins.

12. Information to Provide When Requesting an OEM Battery

A battery supplier can provide a more useful recommendation when the tracker requirements are specific.

Include:

• target runtime;

• nominal and maximum operating voltage;

• average current;

• sleep current;

• peak current;

• GPS fix interval;

• cellular report interval;

• network type;

• expected signal environment;

• enclosure dimensions;

• maximum battery weight;

• connector and cable requirements;

• charging method;

• operating and charging temperatures;

• required protection functions;

• expected production quantity;

• sample-testing requirements.

If the current profile is not yet available, provide the tracker, modem and GNSS module information together with the intended firmware behavior. The supplier may still need to verify the complete device through prototype testing.

13. Common GPS Tracker Battery-Life Calculation Mistakes

Using Only Nominal Capacity

A 2,000 mAh label does not reveal how much energy is usable in the final tracker.

Ignoring Sleep Current

A small sleep-current difference can become significant over long deployment periods.

Treating Peak Current as Continuous Current

Peak current should be evaluated using pulse duration and frequency, not simply added as a continuous load.

Confusing GPS Fix Interval with Report Interval

The tracker may obtain locations more frequently than it transmits them.

Ignoring Cellular Retry Behavior

Poor coverage can increase modem energy consumption significantly.

Using Module Data Without Measuring the Finished Device

The enclosure, antenna, firmware, converter and battery can all change the final current profile.

Forgetting Low-Voltage Cutoff

The tracker may stop before the battery’s nominal capacity is fully delivered.

Testing Only in Strong-Signal Conditions

A strong-signal test may overestimate runtime for field deployments.

Selecting a Battery Only by mAh

Voltage, peak current, dimensions, connector, protection, temperature and charging requirements must also match.

FAQ

How Do You Calculate GPS Tracker Battery Life?

Measure the current and duration of each operating state, including sleep, GPS acquisition, cellular transmission and retries. Add the charge consumed by each state over a defined cycle, then compare daily consumption with the battery’s usable capacity.

What Is GPS Tracker Sleep Current?

Sleep current is the current consumed while the tracker is in a low-power state. It may still power memory retention, timers, sensors, tamper detection or scheduled wake-up functions.

Does the GPS Fix Interval Affect Battery Life?

Yes. More frequent GPS fixes generally increase energy consumption because the receiver and processor wake more often. Fix time can also increase in weak-signal or difficult environments.

Do Cellular Bursts Reduce GPS Tracker Runtime?

Yes. Cellular bursts consume energy during modem startup, network connection, data transmission and possible retries. Their effect depends on signal quality, transmission frequency, payload and modem behavior.

Is Battery Capacity in mAh Enough to Predict Tracker Runtime?

No. The calculation must also consider voltage, usable capacity, current profile, converter efficiency, cutoff voltage, temperature, aging and actual operating conditions.

How Can OEMs Validate a GPS Tracker Runtime Estimate?

Test the final tracker and battery together using the intended GPS interval, cellular reporting behavior, firmware, network conditions and temperature range. Record current, voltage, temperature, retries and shutdown behavior.

Conclusion

GPS tracker battery life should be estimated from the complete operating cycle rather than from nominal capacity alone.

Sleep current, GPS fix intervals, cellular bursts, network retries, temperature, cutoff voltage and battery aging all affect the final result. A duty-cycle calculation provides a more useful estimate by converting each operating state into daily charge consumption.

The estimate should then be verified with the final tracker, firmware, battery, enclosure and network conditions. This approach helps OEM teams choose a battery that meets the runtime target without overlooking peak-current, mechanical or charging requirements.

Need a lithium battery designed for a GPS tracker, asset tracker or connected monitoring device?

Contact ZERNE for custom lithium battery pack support. Share your target runtime, current profile, GPS and cellular intervals, enclosure dimensions, connector requirements and operating environment for a battery design matched to your application.
