A lithium battery pack can have the correct voltage label and a connector that fits, yet still place positive and negative on the wrong contacts for a device. Connecting it to find out can damage the input circuit before the equipment starts.
For OEM engineers and incoming inspection teams, checking polarity means matching three things: the approved pinout, the actual pack output, and the device input. With custom lithium battery packs, connector configuration belongs in the interface specification alongside voltage, cable length, and protection requirements.
This guide explains how to check lithium battery polarity at the external output before connection. It covers connector viewing direction, DC voltage measurement, and acceptance decisions for intact, identified low-voltage device packs. High-voltage systems and packs requiring service access need their own qualified procedures.
Confirm the designated positive and negative output contacts from the approved pack drawing. With the pack disconnected from the device and charger, use a suitable digital multimeter in DC voltage mode, with black in COM and red in the voltage input. Through an appropriate test adapter or safely accessible terminals, place red on the specified positive contact and black on the specified negative contact.
A stable positive reading within the approved output range supports the documented polarity. A negative reading requires a check of the viewing direction, contact assignment, and measurement setup. Zero or an unstable reading leaves the check unresolved. Confirm that the pack contacts also map to the correct device input contacts before connection.
Polarity identifies which output terminal is at a higher electrical potential relative to the other. At a conventional battery power interface, the pack positive output must connect to the device positive input, and the pack negative output must connect to the device negative input.
That relationship is separate from voltage compatibility. A positive meter reading does not prove that the pack voltage suits the device. It also does not establish available capacity, discharge capability, charging compatibility, or the condition of every cell inside the pack.
For a protected pack, use the designated external output contacts. Internal cell connections, balance taps, and protection-board terminals are different measurement locations. Opening the pack to reach them is unnecessary for this preconnection check.
Red commonly identifies positive and black commonly identifies negative, but color is a supporting cue. It is not sufficient evidence for accepting a pack. A harness can be assembled incorrectly, and replacement batteries with similar connectors can use different assignments.
Establish the pack model and drawing revision, then locate the specified power contacts. The interface documentation should identify the connector housing, mating part, cavity numbers, polarity, and viewing direction. Resolve any conflict between the label, drawing, and supplied sample before testing or connecting it.
An instruction such as “red wire on the left” is incomplete unless it also defines which side of the connector faces the observer and where the latch sits.
The mating face is the side that meets the other connector half. The wire-entry side is the rear where the conductors enter. Looking at the same connector from opposite ends can reverse its apparent left-to-right contact order.
Use cavity identifiers and a fixed orientation reference, such as the latch, to interpret the drawing. Do not transfer the left-hand position from a front-view illustration directly to a rear-view photograph.

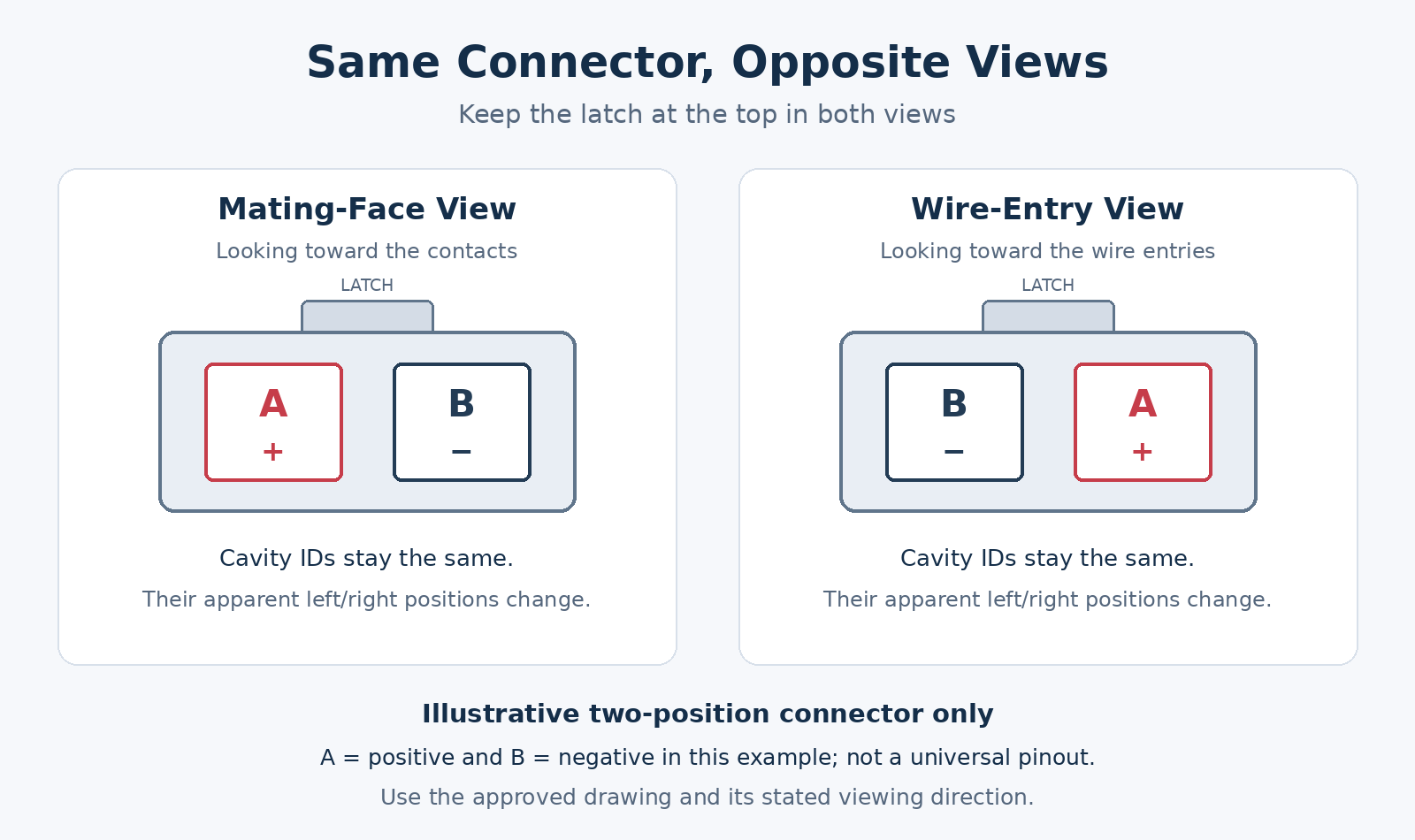

Illustrative connector only: A is assigned positive and B negative for this example. These are not universal pin assignments. Both views keep the latch at the top.
Mechanical polarization helps matching connector halves mate in the intended orientation. It does not independently verify that the wires were installed in the correct cavities. When defining the interface, battery pack connector selection should address the electrical assignment as well as the housing and mating arrangement.
A multipin pack can include a thermistor, identification contact, communication lines, or separate charging connections. A balance connector may expose intermediate cell-group voltages rather than the main output interface.
Measure only the documented output pair for this check. Do not search across unknown pin combinations until a plausible voltage appears. A reading between two unspecified contacts cannot establish the intended device connection.
Check the pack identification and physical condition. A swollen, leaking, damaged, or unusually hot pack should leave the normal inspection workflow and follow the approved handling procedure.
Disconnect the identified pack from the device, charger, and other external power sources. Disconnection isolates the interface being checked; it does not make the battery terminals electrically dead.
Obtain the expected output-voltage range and any specified shipping or sleep state. The nominal voltage printed on a label is not an exact acceptance reading. If the pack voltage class or output contacts cannot be established, clarify them before applying probes.
Follow the instrument manual and use a meter, leads, and adapter suitable for the pack and available fault energy. Inspect the leads and probe insulation before use.
The normal setup is:
Black lead in the COM input.
Red lead in the voltage input, often marked V or V/Ω.
DC voltage selected, commonly marked V⎓.
Autorange or a voltage range covering the highest expected pack output.
Do not leave the red lead in an A or mA current input and place the probes across the pack. That configuration can create a short-circuit path. Resistance and continuity modes are also unsuitable for measuring across an energized battery.
Check the meter against an appropriate known DC reference before the measurement, confirming its indication and sign. Use the normal voltage display rather than a relative measurement or a previously held reading.
Use an approved mating test adapter where recessed or closely spaced contacts cannot be reached safely. A fixture should preserve the documented pin mapping and prevent an exposed probe from bridging adjacent contacts.
Do not force oversized probes into connector cavities or improvise contacts with loose metal objects. Such contact methods can spread terminals, damage retention features, or short the pack.
Apply the black probe to the specified negative output contact and the red probe to the specified positive output contact. Keep the contact points secure without straining the connector. Read the voltage only after it settles, noting both its sign and magnitude.
A satisfactory result needs a stable positive voltage within the defined range at the intended output pair. Some meters show no plus sign for a positive reading; check the instrument’s display convention.
Record which physical contacts were measured. “Battery voltage OK” alone does not preserve enough information to investigate a later pinout dispute.
After removing the probes, verify the meter again against the known reference according to the inspection procedure. If that check fails, the battery measurement needs to be repeated with a verified setup.
The following values are hypothetical illustrations, not acceptance limits for a particular battery model.
Observed Result | What It Establishes | Required Decision |
|---|---|---|
+7.6 V at the documented output pair | The red probe contact is at a higher potential than the black probe contact | Compare magnitude with the approved range, then verify device-side mapping |
−7.6 V with the same intended probe assignment | The red probe contact is at a lower potential than the black probe contact | Stop and reconcile probe placement, connector view, drawing, and actual wiring |
Approximately 0 V | No meaningful output difference has been established under the test conditions | Leave polarity acceptance unresolved and investigate through the approved process |
Unstable or intermittent voltage | The setup or output has not produced a repeatable result | Check the fixture and contact method before further evaluation |
Positive voltage outside the approved range | The indicated polarity alone is insufficient for acceptance | Hold the pack for voltage or identification review |
A negative reading does not, by itself, mean that the cells have reversed internally or that the battery is exhausted. It describes the voltage relationship between the two probe contact points. Reversing the probes can reverse the displayed sign, but it does not correct a harness that disagrees with the approved interface.
Likewise, zero output does not prove that the pack is empty, unenergized internally, or safe to short. Depending on the design, the result could involve an inactive protected output, a sleep state, poor contact, or measurement at the wrong location. Follow the model-specific evaluation procedure rather than bypassing protection or applying an improvised charging source.
A correct pack-side reading is only part of the connection decision. Check the device drawing and any intervening cable so that the verified positive output reaches the designated positive input.
Interface Element | What to Confirm Before Connection |
|---|---|
Pack connector | Correct cavities, polarity, connector identity, and drawing view |
Extension cable or adapter | Documented mapping from each pack-side contact to its device-side destination |
Device battery input | Correct input contacts and supported battery voltage range |
Additional contacts | Approved temperature, identification, communication, or charge functions |
For barrel connectors, verify whether the center contact is assigned positive or negative. Shape and diameter do not establish that assignment. For multipin connectors, a matching power pair does not excuse an incorrect thermistor or communication connection.
Keep the device deenergized during interface inspection under its approved procedure. Any continuity check of a separate harness belongs to a fully disconnected, deenergized harness test, not a resistance measurement across the battery.
Do not use “try it briefly” as the final polarity test. Complete the interface checks first, then perform initial power-up under the product’s approved validation procedure.
Put the connector pinout in the controlled specification rather than leaving it in an email or an unlabelled photograph. Include the cavity identifiers, viewing direction, latch orientation, wire assignments, mating part, and drawing revision.
The measurement location, permitted output range, and expected pack state should also be clear. If a design uses a disabled shipping output, establish an approved verification method before incoming inspection begins.
When preparing this information, reading a custom lithium battery datasheet should include the interface drawing and protection conditions as well as the nominal electrical ratings. Confirm that the approved sample and production documentation describe the same configuration.
A practical inspection record identifies the pack model, lot or serial number, drawing revision, test fixture, measured contact pair, voltage sign and magnitude, and acceptance decision.
Repeat interface approval when a connector, harness, adapter, supplier, or device input changes. Sampling frequency and production inspection coverage should follow the project’s quality plan. A previously approved connector housing does not establish that every later harness revision has the same wiring.
If the measured assignment conflicts with the approved drawing, hold the affected material for disposition. Reworking or swapping pins should be a controlled engineering decision, followed by appropriate verification.
A PCM or BMS is not automatic proof that a device will tolerate reverse connection. Protection against cell overvoltage or excessive discharge current serves a different function from protection at the device input.
Confirm any claimed reverse-connection protection for the actual circuit and connection scenario. It supports the design; it does not replace interface verification.
Red commonly indicates positive, but it is not a sufficient acceptance criterion. Confirm the assigned contact from the approved drawing and verify the output electrically before connecting the pack.
No. With a correctly configured digital meter, a negative reading means the red probe contact is at a lower potential than the black probe contact. Check the probe locations and connector view before judging the pack against its specification.
Do not use continuity or resistance mode across an energized pack. Use DC voltage mode at the documented output contacts. Continuity testing can be relevant to a separate, fully disconnected and deenergized harness.
No. Mechanically matching housings can contain different wire assignments. Verify the exact pack configuration and its mapping to the device input, including any additional signal contacts.
Treat polarity acceptance as unresolved. Confirm the measurement setup and designated contacts, then follow the pack-specific inspection procedure. Do not assume that zero external output means the internal cells contain no energy.
No. Also verify operating voltage, current capability, charging requirements, dimensions, protection behavior, and any required temperature or communication interface. Polarity is one essential connection check within a broader compatibility review.
A dependable lithium battery polarity check links the approved pinout to a measured output and the correct device input. Wire colors, connector fit, and a positive voltage reading each provide only part of that evidence.
Define the connector view, measure the designated contacts with the correct DC voltage setup, and resolve negative, zero, or unstable readings before connection. For OEM projects, preserving that information in a controlled drawing and inspection record makes the check repeatable from the first sample through production.
ZERNE supports custom battery configurations with connector, cable, and protection options for OEM projects. Share your device voltage range, mating connector, pinout drawing, cable requirements, and additional signal needs to discuss the pack interface.
