What is Solid Electrolyte Interface (SEI) in a Li-ion Battery

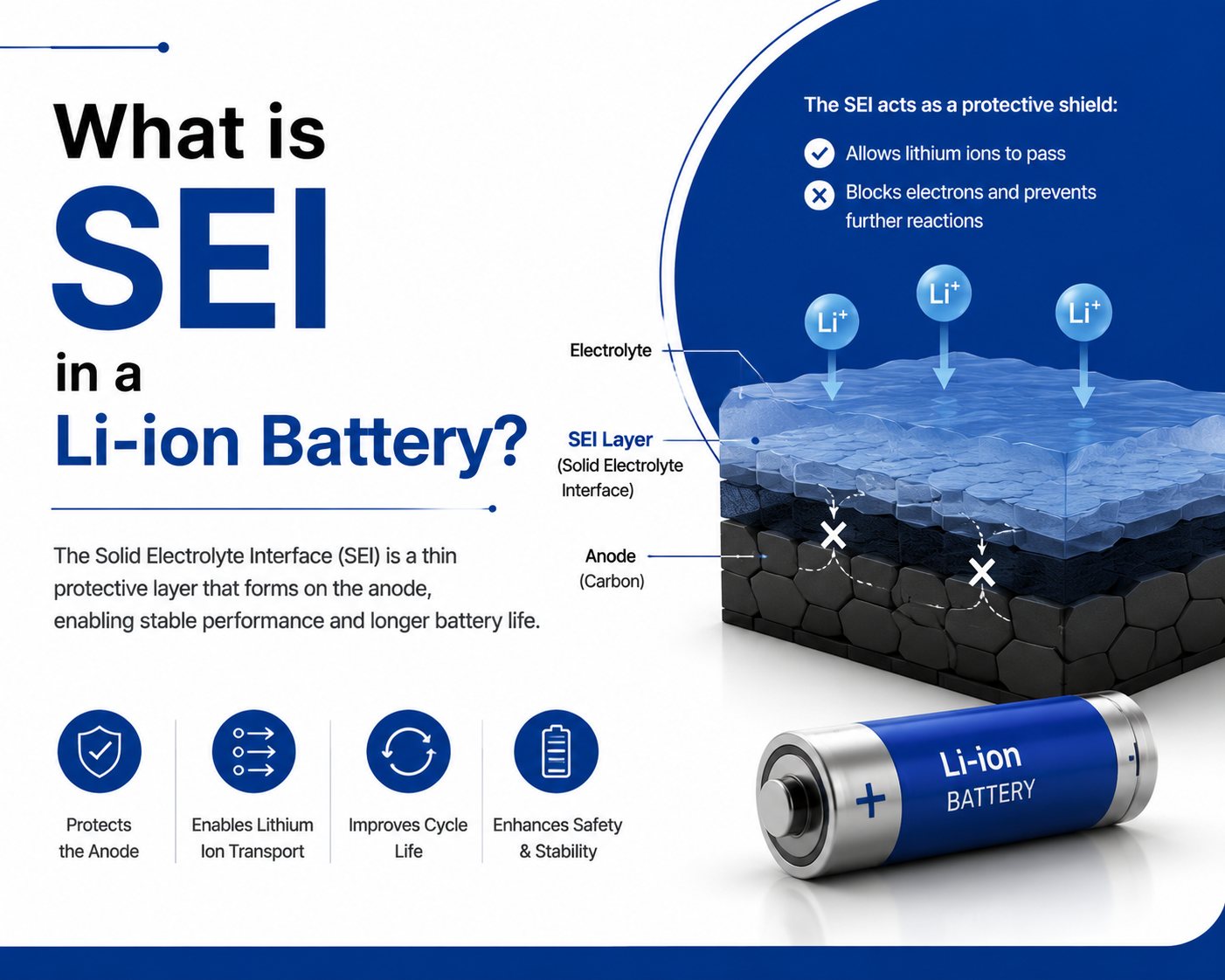

The solid electrolyte interface, called SEI, makes a thin layer on the anode in a li-ion battery. This layer works like a shield. It lets lithium ions pass through but blocks electrons. This protects the anode from more reactions. Studies say a stable SEI helps the battery last longer. It also helps the battery work better. Scientists found that good materials at this layer lower resistance. They also keep the battery steady for many cycles.

A strong SEI means the battery is safer and works better.

Key Takeaways

• The Solid Electrolyte Interface (SEI) is a shield on the anode in lithium-ion batteries. It lets lithium ions move through but stops electrons. This helps the battery work for a longer time.

• A strong SEI makes the battery work better by lowering resistance. It also stops bad reactions. This keeps the battery safe and working well when you use it.

• Some things added to the battery’s electrolyte can make the SEI stronger. These things help the SEI stay smooth and do its job. This makes the battery last longer and be safer.

• The SEI forms when you charge the battery for the first time. How good the SEI is depends on things like heat, electric current, and what the battery is made of.

• Scientists keep learning about the SEI to make better batteries. Knowing more about the SEI can help make lithium-ion batteries safer, last longer, and work better.

SEI in Li-ion Battery

SEI Definition

Scientists say the solid electrolyte interphase, or SEI, is a thin film. This film forms on the anode when a li-ion battery is charged and used for the first time. The film appears because the electrolyte breaks down on the anode’s surface. The SEI lets lithium ions move through it but blocks electrons. This stops the electrolyte from breaking down again. Even though the SEI is very thin, it is important for the battery. In a lithium-ion battery, the SEI keeps the anode safe and helps the battery last longer.

Researchers use special tools to look at the SEI. These tools include X-ray photoelectron spectroscopy, which shows what is on the surface, and transmission electron microscopy, which shows the structure up close. Laser ablation laser ionization time-of-flight mass spectrometry helps scientists find out what materials are in the SEI. These methods help people learn how the SEI forms and changes as the battery works.

SEI Function

The SEI does many important things in a li-ion battery:

• It keeps the place between the anode and the electrolyte steady.

• It stops the anode and the electrolyte from losing contact, which can make the battery not work well.

• It helps lithium ions move easily, so the battery works better.

• It blocks electrons, so the electrolyte does not keep breaking down.

The SEI is like a guard. It lets lithium ions go through but keeps electrons out. This helps protect the battery and makes it last for many cycles.

Scientists have learned more about the SEI in the last ten years. They found that a smooth SEI surface is very important. If the surface has scratches or marks, metal can build up and cause trouble. Keeping the SEI smooth and without problems helps the battery stay safe and last longer. Researchers also found that the way the SEI forms can change with different battery types. For example, the SEI on a silicon anode is not the same as on a graphite anode. This can change how long the battery lasts and how well it works.

Here is a table that shows how different things can change the SEI in a li-ion battery:

The SEI is a very important part of every li-ion battery. It helps the battery stay safe, last longer, and work better when charging and using it. Scientists keep studying the SEI to make batteries even better and stronger.

SEI Formation

Formation Process

The SEI forms when the battery is used for the first time. When the battery starts, the anode’s voltage gets lower than the electrolyte’s reduction potential. This makes the electrolyte break down on the anode’s surface. New chemical compounds are made during this process. These compounds pile up and create the SEI layer. The SEI works like a wall that keeps the anode safe from more reactions.

Scientists learned that how the SEI forms depends on what is in the electrolyte. Some chemicals, called additives, help the SEI become stronger and smoother. These additives can make the SEI last longer and help the battery work better. Over time, researchers found that the right mix of chemicals in the electrolyte can change how the SEI grows.

• When the electrolyte breaks down, it makes layers on the anode. These layers are important for SEI formation.

• Some chemicals in the electrolyte help control and improve the SEI.

• Additives in the electrolyte can make the SEI stronger and more even.

Electrochemical Reactions

Electrochemical reactions are very important for SEI growth. When the battery charges for the first time, electrons move to the anode. This makes the electrolyte react and break apart. The things made from these reactions stick to the anode and form the SEI. The SEI lets lithium ions go through but stops electrons. This keeps more reactions from happening between the anode and the electrolyte.

The SEI needs to stay strong for many charges and uses. If the SEI breaks, the battery can lose power or become unsafe. A good SEI helps the battery last longer and work well. Scientists keep studying these reactions to make batteries better in the future.

SEI Composition

Materials and Structure

The solid electrolyte interface, or SEI, is a thin film. It forms on the negative electrode in a lithium-ion battery. This film shows up when the electrolyte breaks down the first time you use the battery. The SEI acts like a shield. It lets lithium ions move through but stops electrons. This special layer helps the battery stay safe. It also keeps the solvent from breaking down again.

Scientists found that the SEI has many materials inside. These include organic compounds, inorganic salts, and small crystals. The exact mix depends on what chemicals are in the electrolyte. It also depends on the type of anode. Some parts of the SEI are soft and bendy. Other parts are hard and can break easily. This mix gives the SEI its special features.

A table below shows some common materials in the SEI:

Physical Properties

The SEI has some important physical properties. These affect how the battery works:

• Interfacial stability: The SEI must stick to the anode. Scientists measure this with the work of adhesion.

• Ion transport: The SEI lets lithium ions move through it. Researchers use computer models to see how ions travel in the SEI.

• Thickness: If the SEI gets thicker, it blocks electrons better. But a thick SEI can slow down both electrons and ions. This can make the battery charge and discharge less well.

A good SEI keeps the battery steady and helps it last longer. If the SEI gets too thick or weak, the battery might lose power or become unsafe.

The SEI’s materials and properties are important for battery performance. Scientists keep studying the SEI to make batteries safer and work better.

SEI and Battery Performance

Efficiency and Stability

The quality of the SEI really matters for batteries. A strong SEI helps a li-ion battery work well and last longer. When the SEI makes a good layer, it keeps the battery steady when charging and using it. This layer lets lithium ions move easily, so the battery keeps its power. A stable SEI also stops the battery from losing energy too fast.

A good link between the solid electrolyte and electrodes is needed for battery efficiency. Here are some ways to keep this link strong:

• Good contact between the solid electrolyte and electrodes lowers resistance and keeps the battery from breaking down.

• Using soft sulfide electrolytes or adding pressure during battery making helps keep the parts close together.

• The SEI and other layers form on their own or with coatings, which keeps the battery steady as it works.

A stable solid electrolyte interface helps ions move and lowers resistance. This stops the electrolyte from breaking down again and again. When the SEI stays strong, the battery does not lose power quickly. It also helps stop problems like losing capacity or having more resistance. This makes the lithium-ion battery work better for a longer time.

Safety and Lifespan

The SEI is also important for battery safety and how long the battery lasts. A good SEI keeps the battery safe by stopping dangerous reactions. It blocks sharp lithium pieces, called dendrites, from growing. Dendrites can cause short circuits. The SEI also helps the battery handle heat and stops gas from building up inside.

A strong SEI means the battery can last through many charges and uses. It keeps the battery safe and helps it work well for a long time. The SEI’s effect on batteries shows why scientists keep trying to make this layer even better.

SEI Formation Factors

Electrolyte and Additives

The solid electrolyte interface forms because of the battery’s chemicals. Scientists add special things called additives to help the SEI. These additives make the battery last longer and work better. They also make the SEI stronger and more stable. There are different kinds of additives, and each one helps in its own way:

• Film-forming additives make a strong SEI layer. They stop the battery from losing power and keep things steady.

• Ionic liquid additives help the battery charge and move power. They make resistance lower and help the battery work well.

• Inorganic coating additives act like shields. They stop extra reactions and keep the battery safe.

• Polymer-based additives make soft layers. These layers can bend and stop sharp dendrites from growing.

If a battery has the right additives, it can charge faster and stay safe. Additives help the battery keep its power and stop problems when you use it.

Current, Temperature, Electrode Material

The first time you charge or use the battery, the current matters. A strong current can change how the SEI looks and works. Some batteries use different currents to make the SEI layer. The battery’s temperature also changes the SEI. If it gets too hot, the SEI can get weak and not last long. When the temperature changes, the battery’s liquid does not cover the surface well. This makes resistance go up and the battery work worse.

The material in the electrode is important for how the battery works. New cathodes and anodes help ions move faster in the battery. Special coatings and layers keep the battery parts close together. These materials help the battery have more power and last longer. Engineers use special layers and coatings to make resistance lower and help ions move. The battery works best when the SEI forms on the right electrode material.

Tip: Picking the best additives, current, temperature, and electrode material helps the battery stay strong and safe.

Conclusion

The solid electrolyte interface, or SEI, helps protect lithium-ion batteries. It makes batteries last longer and work better. SEI lowers resistance and helps ions move easily. It also stops dangerous dendrites from growing. Scientists use new tools to learn more about SEI. They want to find ways to make SEI stronger and safer. They use special additives and coatings to help batteries stay safe and powerful.

• A smooth SEI keeps batteries safe and working well.

• Additives like vinylene carbonate and FEC make SEI stronger.

• Good contact between battery parts helps lower resistance.

Researchers keep working on SEI to make batteries safer and better in the future.

FAQ

What does SEI stand for in a lithium-ion battery?

SEI means Solid Electrolyte Interface. This layer forms on the anode when you charge the battery for the first time. It helps protect the battery and makes it last longer.

Why is the SEI important for battery safety?

The SEI stops bad reactions between the anode and the electrolyte. It also keeps sharp lithium dendrites from growing. This helps stop short circuits and keeps the battery safe.

Can the SEI layer get damaged?

Yes, heat or charging too much can hurt the SEI. If this happens, the battery might lose power or become unsafe. Scientists use special chemicals to help keep the SEI strong.

How do additives help the SEI?

Additives in the electrolyte make the SEI stronger and smoother. They help the battery charge faster and last longer. Some additives also stop gas from building up inside the battery.

Does every lithium-ion battery have an SEI?

All lithium-ion batteries make an SEI on the anode. This layer is very important for how the battery works. Without the SEI, the battery would not work well or stay safe.
